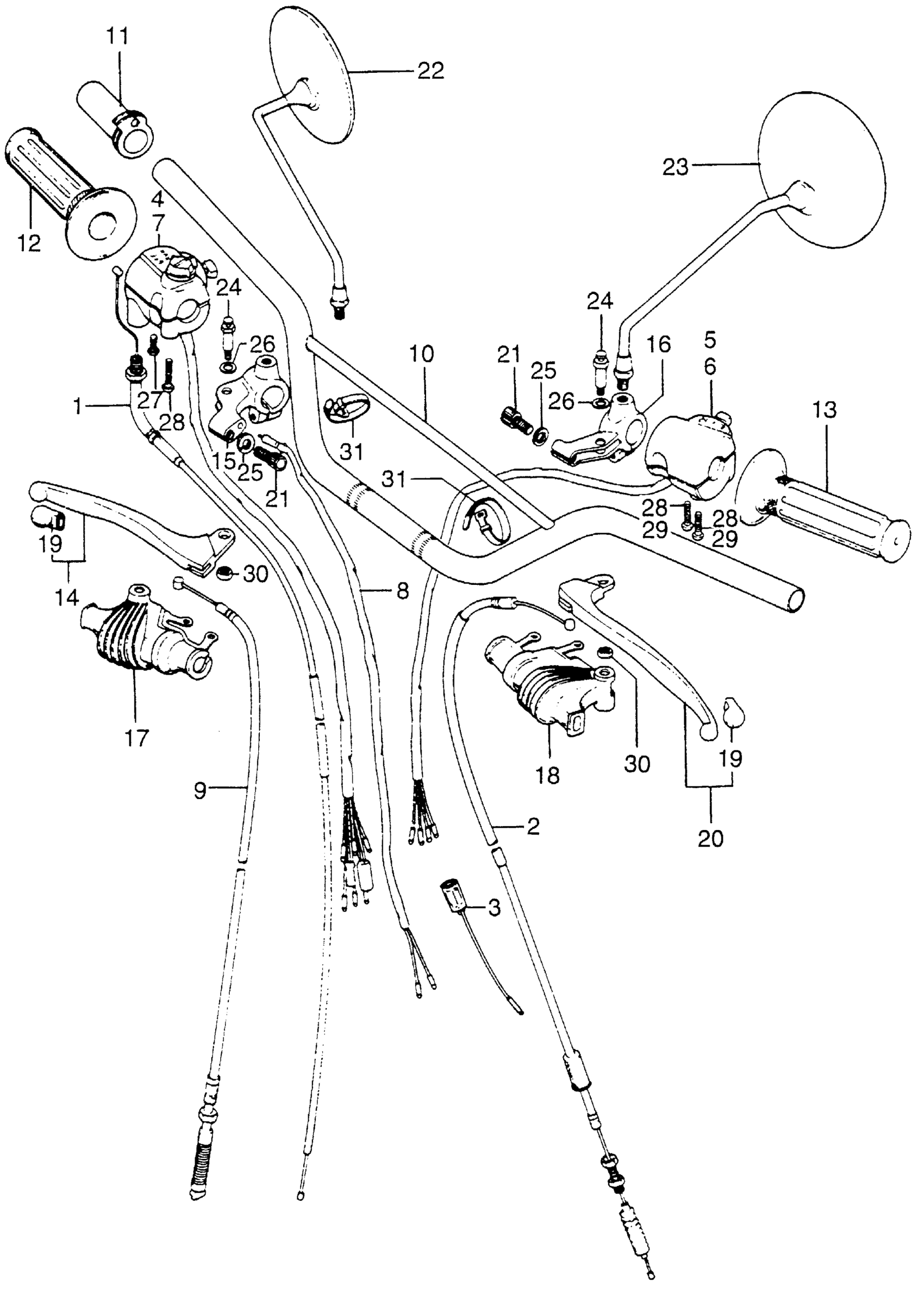

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 HANDLEBAR + CABLES + MIRRORS Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-362-000

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-362-000

Unavailable

3

SUB-WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)

33605-310-000

Unavailable

4

SWITCH ASSY., LIGHTING STOP

35150-362-772

Unavailable

5

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

8

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

8

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

9

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-362-000

Unavailable

10

HANDLEBAR (NOT AVAILABLE)

53100-329-700

Unavailable

11

PIPE, THROTTLE GRIP

53141-362-000

Unavailable

12

GRIP, R. HANDLE

53165-362-000

$15.86

13

GRIP, L. HANDLE

53166-362-000

$15.86

14

LEVER, R. HANDLEBAR This part replaces 53170-329-010.

53175-KY0-980

$31.02

14

LEVER, R. HANDLEBAR This part replaces 53175-329-000.

53175-KY0-980

$31.02

14

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

14

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

15

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

16

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

17

COVER, R. CONTROL LEVER

53176-329-000

$12.41

18

COVER, L. CONTROL LEVER

53179-329-000

$15.07

20

LEVER, L. HANDLE This part replaces 53178-329-000.

53178-369-700

$28.35

20

LEVER, L. HANDLE

53178-369-700

$28.35

20

LEVER, L. HANDLE This part replaces 53190-329-010.

53178-369-700

$28.35

21

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

22

MIRROR, R. This part replaces 88110-074-000.

88110-329-730

Unavailable

22

MIRROR, R.

88110-329-730

Unavailable

23

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-074-000.

88220-329-730

Unavailable

23

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

24

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

25

NUT, FIXING

90321-315-670

$7.31

25

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

26

WASHER (7X12) | Use up to Frame SN 3015114

90501-310-000

$1.74

28

SCREW, PAN (5X25)

93500-05025-0A

$1.49

29

SCREW, PAN (5X28)

93500-05028-0A

$1.49

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

30

WASHER, PLAIN (6MM)

94101-06800

$1.49

31

BAND B1, CABLE

95014-62100

$1.64
