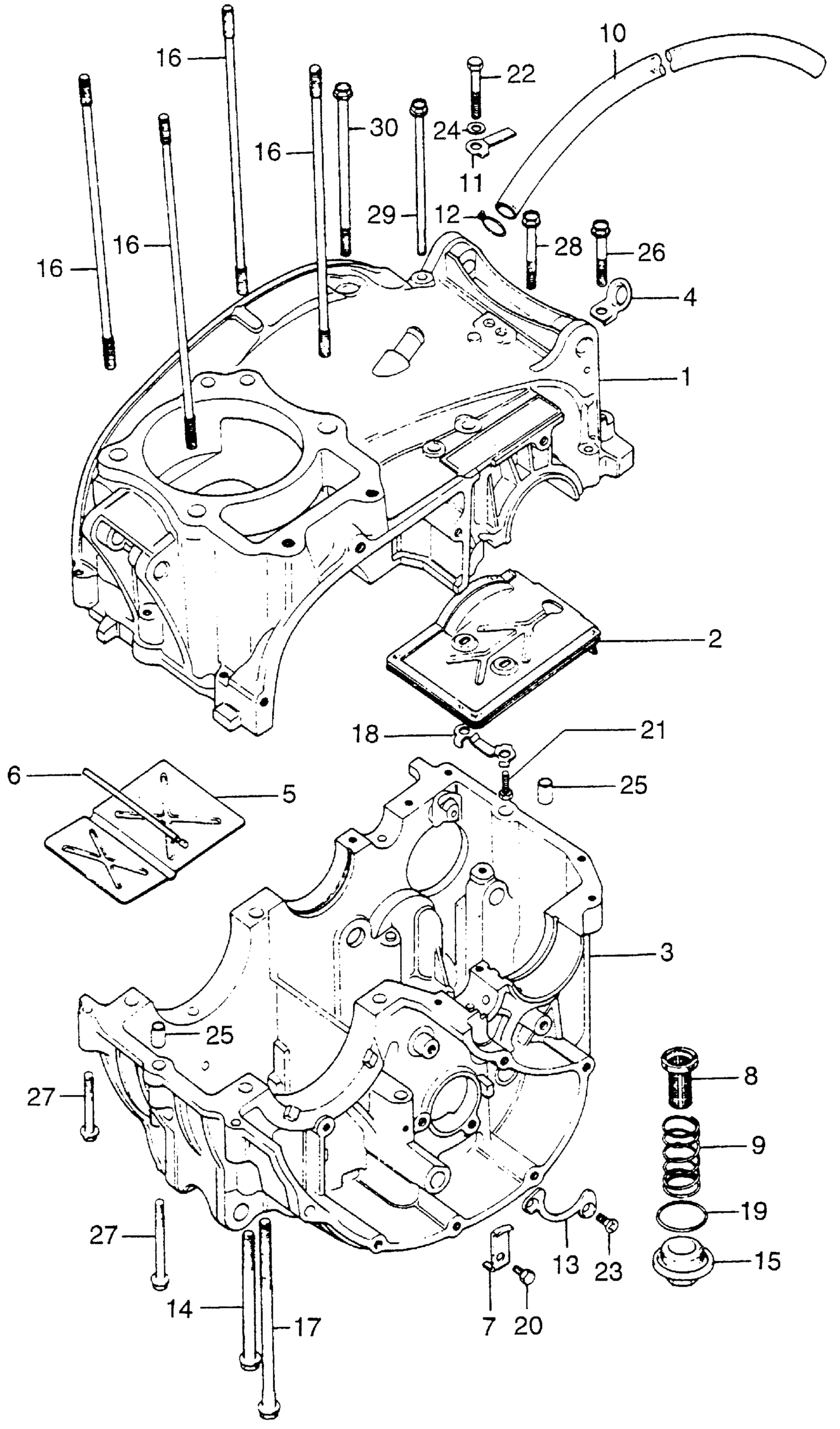

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 CRANKCASES Diagram

#

Description
Price

1

CRANKCASE (UPPER)

11100-362-000

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-362-000

Unavailable

3

CRANKCASE (LOWER) (NOT AVAILABLE) | Use up to Engine SN 3011337 This part replaces 11200-362-000.

11200-391-010

Unavailable

3

CRANKCASE (LOWER) (NOT AVAILABLE) This part replaces 11200-391-000.

11200-391-010

Unavailable

3

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-391-010

Unavailable

4

GUIDE, BATTERY TUBE

11355-362-000

Unavailable

5

SEPARATOR, OIL (NOT AVAILABLE)

11761-362-000

Unavailable

6

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11762-362-000

Unavailable

7

PLATE, CAM CHAIN (NOT AVAILABLE)

14414-362-000

Unavailable

8

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-329-000

Unavailable

9

SPRING, OIL FILTER SCREEN (NOT AVAILABLE)

15426-362-000

Unavailable

10

TUBE, BREATHER (NOT AVAILABLE)

15771-362-000

Unavailable

11

GUIDE, BREATHER TUBE (NOT AVAILABLE)

15772-362-000

Unavailable

12

CLIP, BREATHER TUBE | Use up to Engine SN 3014703

15772-551-000

$2.05

12

CLIP, BREATHER TUBE (NOT AVAILABLE) | Use up to Engine SN 3014703

15772-551-680

$6.39

12

CLIP, BREATHER TUBE | Use from Engine SN 3014704

15772-292-010

$2.92

13

PLATE, BEARING SETTING (NOT AVAILABLE)

24710-362-000

Unavailable

14

BOLT, FLANGE (8X70) (NOT AVAILABLE)

90007-634-000

Unavailable

15

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

16

BOLT, STUD (8X174) (NOT AVAILABLE)

90032-362-000

Unavailable

17

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

18

WASHER (6MM) (NOT AVAILABLE)

90484-329-000

Unavailable

19

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

19

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

19

O-RING (33.5X3.0)

91304-HB3-003

$7.70

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

23

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

25

PIN A, DOWEL (10X14)

94301-10140

$2.28

26

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

26

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

27

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

27

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

28

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

28

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

28

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

29

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

30

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

30

BOLT, FLANGE (6X90)

95701-06090-00

$1.92
