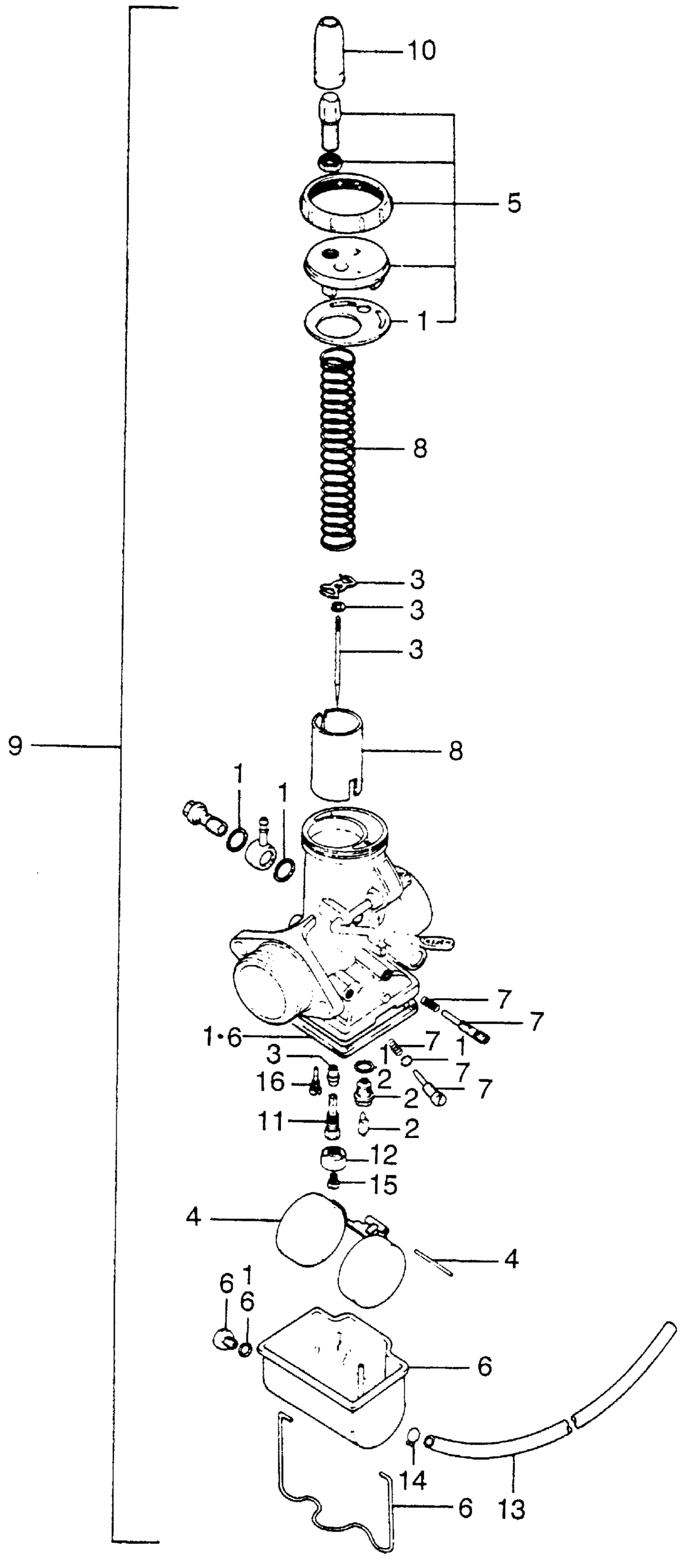

Honda XL175K2A MOTORCYCLE, JPN, VIN# XL175-3000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-362-004

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET

16012-362-004

Unavailable

4

FLOAT SET

16013-286-014

$32.28

5

TOP SET (NOT AVAILABLE)

16014-362-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-362-004

Unavailable

7

SCREW SET (NOT AVAILABLE)

16016-302-670

Unavailable

8

VALVE SET, THROTTLE

16022-362-004

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-362-671

Unavailable

10

CAP, RUBBER (NOT AVAILABLE)

16118-362-004

Unavailable

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-362-004

Unavailable

12

HOLDER, JET This part replaces 16168-362-004.

16168-382-004

Unavailable

12

HOLDER, JET This part replaces 16168-365-004.

16168-382-004

Unavailable

12

HOLDER, JET

16168-382-004

Unavailable

13

BULK HOSE, FUEL (3.5X3000) (3.5X270)

95001-35003-60M

$20.85

14

CLIP, TUBE (B7)

95002-02070

$1.80

15

JET, MAIN (#100) | (Optional).

99114-246-1000

Unavailable

15

JET, MAIN (#105) | (Optional).

99114-246-1050

Unavailable

15

JET, MAIN (#110)

99114-246-1100

Unavailable

15

JET, MAIN (#115) | (Optional).

99114-246-1150

Unavailable

15

JET, MAIN (#120) | (Optional).

99114-246-1200

$8.10

15

JET, MAIN (#100) | (Optional). This part replaces 99114-304-1000.

99114-246-1000

Unavailable

15

JET, MAIN (#105) | (Optional). This part replaces 99114-304-1050.

99114-246-1050

Unavailable

15

JET, MAIN (#110) This part replaces 99114-304-1100.

99114-246-1100

Unavailable

15

JET, MAIN (#115) | (Optional). This part replaces 99114-304-1150.

99114-246-1150

Unavailable

15

JET, MAIN (#120) | (Optional). This part replaces 99114-304-1200.

99114-246-1200

$8.10

16

JET, SLOW (#45) (NOT AVAILABLE) | (Optional).

99132-04504

Unavailable

16

JET, SLOW (#35) (NOT AVAILABLE) | (Optional).

99134-03504

Unavailable

16

JET, SLOW (#38) (NOT AVAILABLE) | (Optional).

99134-03804

Unavailable

16

JET, SLOW (#40) (NOT AVAILABLE)

99134-04004

Unavailable

16

JET, SLOW (#42) (NOT AVAILABLE) | (Optional).

99134-04204

Unavailable

16

JET, SLOW (#45) (NOT AVAILABLE) | (Optional). This part replaces 99134-04504.

99132-04504

Unavailable
