TRANSMISSION + GEARSHIFT DRUM

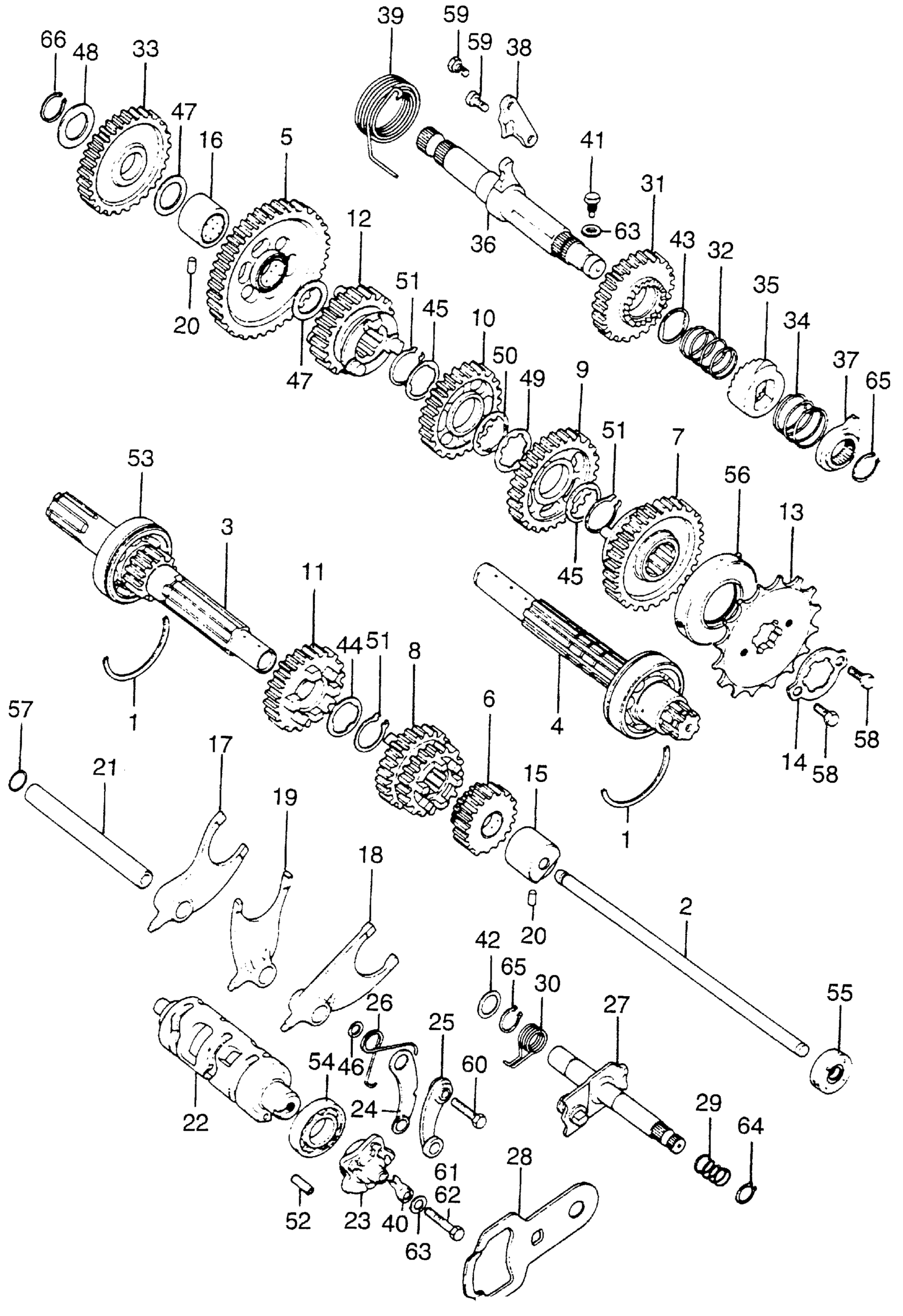

Honda XL175K1A MOTORCYCLE, JPN, VIN# XL175-2000001 TRANSMISSION + GEARSHIFT DRUM Diagram
#
1
RING A, BALL BEARING SET (NOT AVAILABLE) This part replaces 13491-200-010.
13495-200-010
Unavailable
1
RING A, BALL BEARING SET (NOT AVAILABLE)
13495-200-010
Unavailable
2
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-362-000
Unavailable
3
MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)
23211-362-000
Unavailable
4
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) This part replaces 23220-362-000.
23220-362-010
Unavailable
4
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23220-362-010
Unavailable
5
GEAR, COUNTERSHAFT FIRST (36T)
23420-362-000
Unavailable
6
GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)
23430-235-000
Unavailable
7
GEAR, COUNTERSHAFT SECOND (36T)
23441-362-000
Unavailable
8
GEAR, MAINSHAFT SHIFTING (20T 30T) (NOT AVAILABLE)
23451-235-000
Unavailable
9
GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)
23461-354-000
Unavailable
10
GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE)
23471-354-000
Unavailable
11
GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)
23481-235-000
Unavailable
12
GEAR, COUNTERSHAFT FIFTH (24T)
23491-354-000
Unavailable
13
SPROCKET, DRIVE (14T) (NOT AVAILABLE)
23801-362-000
Unavailable
15
BUSH A, BEARING (15MM) This part replaces 23931-362-000.
23931-362-010
Unavailable
15
BUSH A, BEARING (15MM)
23931-362-010
Unavailable
16
BUSH B, BEARING (16MM)
23932-362-000
Unavailable
17
FORK, R. GEARSHIFT
24211-362-000
Unavailable
18
FORK, L. GEARSHIFT (NOT AVAILABLE)
24212-362-000
Unavailable
19
FORK, CENTER GEARSHIFT
24213-362-000
Unavailable
21
SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)
24265-362-000
Unavailable
22
DRUM, GEARSHIFT (NOT AVAILABLE)
24301-362-000
Unavailable
23
CAM, GEARSHIFT
24411-362-000
Unavailable
24
ARM, NEUTRAL STOPPER (NOT AVAILABLE)
24420-362-000
Unavailable
25
STOPPER, GEARSHIFT DRUM (NOT AVAILABLE) This part replaces 24430-362-000.
24430-362-010
Unavailable
26
SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)
24435-362-000
Unavailable
29
SPRING, GEARSHIFT PLATE
24631-362-000
Unavailable
30
SPRING, GEARSHIFT RETURN (NOT AVAILABLE)
24651-362-000
Unavailable
31
PINION, KICK STARTER
28211-362-000
Unavailable
32
SPRING, STARTER PINION SETTING (NOT AVAILABLE)
28215-216-000
Unavailable
34
SPRING, KICK STARTER RATCHET (NOT AVAILABLE)
28223-314-000
Unavailable
35
RATCHET, KICK STARTER
28223-362-010
Unavailable
36
SPINDLE, KICK STARTER (NOT AVAILABLE)
28251-362-000
Unavailable
37
RETAINER, KICK STARTER (NOT AVAILABLE)
28258-362-000
Unavailable
38
PLATE, RATCHET GUIDE (NOT AVAILABLE)
28259-362-000
Unavailable
39
SPRING, KICK STARTER (NOT AVAILABLE)
28261-362-000
Unavailable
40
ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)
35753-362-000
Unavailable
41
BOLT, STOPPER (6MM) (NOT AVAILABLE)
90081-362-010
Unavailable
43
WASHER, THRUST (20MM) (NOT AVAILABLE)
90451-216-000
Unavailable
44
WASHER A, THRUST (20MM) (NOT AVAILABLE)
90451-230-000
Unavailable
45
WASHER A, THRUST (20MM) (NOT AVAILABLE)
90451-246-000
Unavailable
46
WASHER (6MM) (NOT AVAILABLE)
90453-216-000
Unavailable
48
WASHER, THRUST (16MM) (NOT AVAILABLE)
90453-362-000
Unavailable
49
WASHER B, THRUST (20MM) (NOT AVAILABLE)
90461-235-000
Unavailable
50
WASHER, LOCK (20MM) (NOT AVAILABLE)
90462-235-000
Unavailable
52
PIN, KNOCK (3X6.5)
90710-551-000
Unavailable
53
BEARING, BALL (6304HS)
91003-235-000
Unavailable
55
OIL SEAL (8X25X6) (NOT AVAILABLE)
91203-362-005
Unavailable
56
OIL SEAL (20X52X10) (NOT AVAILABLE)
91205-362-005
Unavailable
