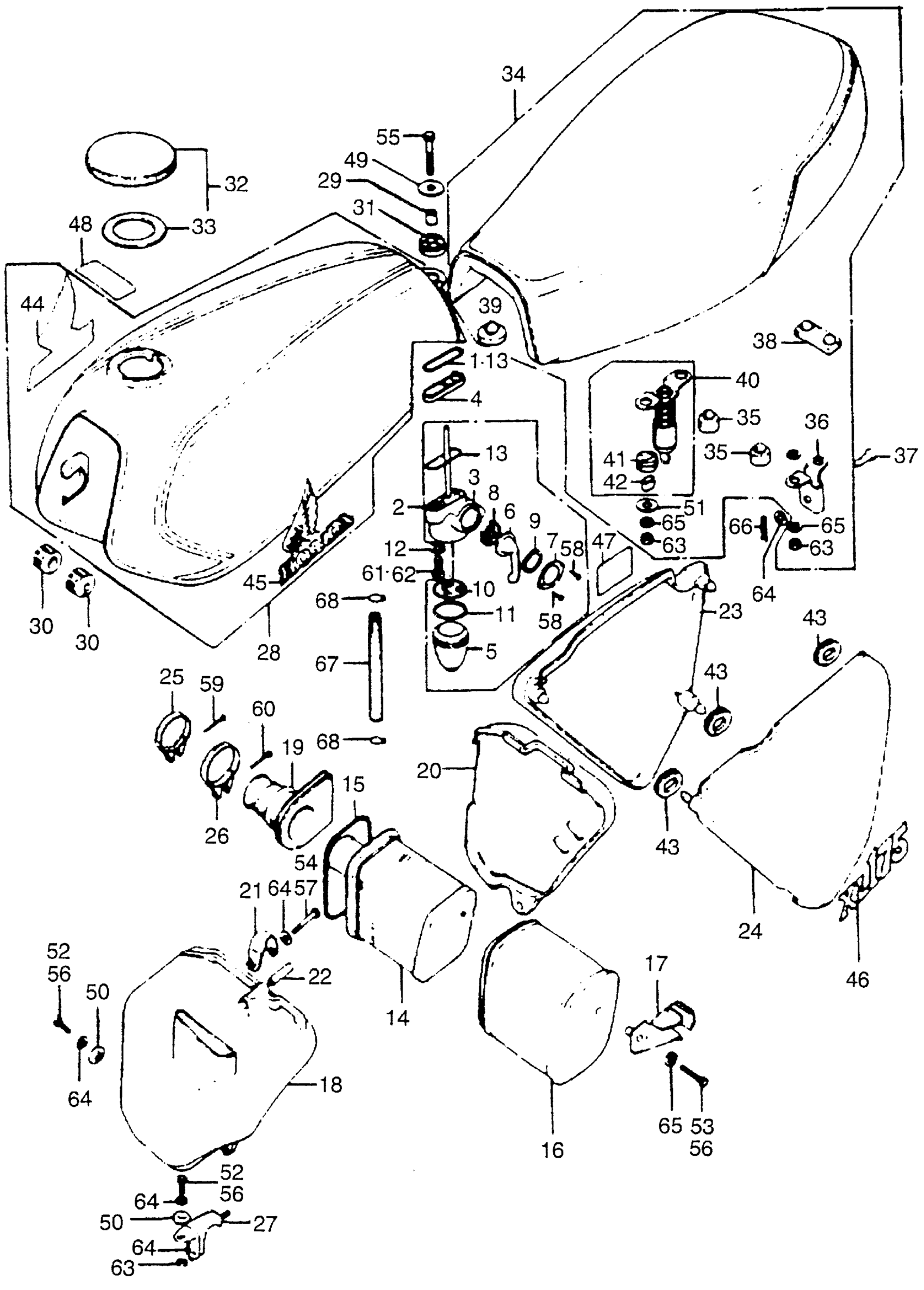

Honda XL175K1A MOTORCYCLE, JPN, VIN# XL175-2000001 FUEL TANK + SEAT + AIR CLEANER Diagram

#

Description
Price

2

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-329-005.

16950-356-005

Unavailable

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-356-005

Unavailable

3

BODY SET, PETCOCK (NOT AVAILABLE)

16951-107-000

Unavailable

4

PLATE, VALVE (NOT AVAILABLE)

16951-453-000

Unavailable

5

CUP, FUEL STRAINER

16952-028-000

Unavailable

6

LEVER, PETCOCK

16953-028-004

Unavailable

7

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

8

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

8

GASKET, VALVE

16957-ZE1-812

$3.08

9

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

9

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

9

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

9

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

10

SCREEN, FUEL STRAINER

16957-028-000

$16.22

11

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

11

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

11

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

11

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

12

GASKET, PETCOCK BODY | Use up to Frame SN 2011086

16993-011-000

Unavailable

13

O-RING (23.8X2.4)

16997-273-000

$4.53

14

BODY, AIR CLEANER (NOT AVAILABLE)

17211-362-000

Unavailable

15

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17212-362-000

Unavailable

16

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17213-362-000

Unavailable

17

PLATE, CLEANER ELEMENT BACK (NOT AVAILABLE)

17214-362-000

Unavailable

18

HOUSING, AIR CLEANER (INNER) (NOT AVAILABLE)

17221-362-000

Unavailable

19

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-362-010

Unavailable

20

HOUSING, AIR CLEANER (OUTER) (NOT AVAILABLE)

17231-362-000

Unavailable

21

HANGER, AIR CLEANER HOUSING (NOT AVAILABLE)

17236-362-000

Unavailable

22

COLLAR, CLEANER CASE SETTING (NOT AVAILABLE)

17237-362-000

Unavailable

23

COVER, R. SIDE *YR6* (MARS ORANGE) (NOT AVAILABLE)

17241-362-305JL

Unavailable

24

COVER, L. SIDE *YR6* (MARS ORANGE) (NOT AVAILABLE)

17251-362-305JL

Unavailable

25

BAND, INSULATOR

16223-GBF-830

$11.87

25

BAND, INSULATOR This part replaces 17255-098-000.

16223-GBF-830

$11.87

25

BAND, INSULATOR This part replaces 17256-367-690.

16223-GBF-830

$11.87

26

BAND A, AIR CLEANER CONNECTING TUBE

17255-303-010

$6.81

27

STAY A, AIR CLEANER HOUSING (NOT AVAILABLE)

17258-362-000

Unavailable

28

TANK, FUEL *YR6* (MARS ORANGE) (NOT AVAILABLE) This part replaces 17500-362-710JL.

17510-362-710JL

Unavailable

28

TANK, FUEL *YR6* (MARS ORANGE) (NOT AVAILABLE)

17510-362-710JL

Unavailable

29

COLLAR, FUEL TANK

17503-329-770

Unavailable

30

RUBBER, FR. FUEL TANK

17611-KE8-000

$4.22

30

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

31

RUBBER, RR. FUEL TANK (NOT AVAILABLE) This part replaces 17613-362-000.

17613-362-010

Unavailable

31

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-362-010

Unavailable

32

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

32

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

32

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

32

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

32

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

33

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

33

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

34

SEAT ASSY. (NOT AVAILABLE)

77100-362-670

Unavailable

35

RUBBER, SEAT CUSHION

77201-074-000

$4.12

36

HINGE, SEAT (NOT AVAILABLE)

77201-317-670

Unavailable

37

PIN, SEAT HINGE (NOT AVAILABLE)

77203-317-670

Unavailable

38

RUBBER, SEAT SETTING

77204-312-000

$5.05

39

RUBBER, FR. SEAT SETTING

77206-362-000

Unavailable

40

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

40

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

40

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

41

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

41

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

41

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

42

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

42

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

42

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

43

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

44

MARK, R. FUEL TANK | Use up to Frame SN 2017757 This part replaces 87121-362-300.

87123-358-670

Unavailable

44

MARK, R. FUEL TANK

87123-358-670

Unavailable

44

MARK, R. FUEL TANK | Use up to Frame SN 2017757

87123-358-670

Unavailable

45

EMBLEM, L. FUEL TANK (A.M.) | Use up to Frame SN 2017757 This part replaces 87122-362-300.

87124-391-670

Unavailable

45

EMBLEM, L. FUEL TANK (A.M.) This part replaces 87124-358-670.

87124-391-670

Unavailable

45

EMBLEM, L. FUEL TANK (A.M.) | Use up to Frame SN 2017757 This part replaces 87124-358-670.

87124-391-670

Unavailable

45

EMBLEM, L. FUEL TANK (A.M.)

87124-391-670

Unavailable

45

EMBLEM, L. FUEL TANK (A.M.) | Use up to Frame SN 2017757

87124-391-670

Unavailable

47

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

48

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

49

WASHER (8MM)

90501-819-000

$1.49

50

WASHER (6X20)

90512-300-000

$3.08

51

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

51

WASHER, PLAIN (6MM)

94103-06800

$1.49

52

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

52

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

53

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

53

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

54

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

54

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

54

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

55

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

55

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

58

SCREW, PAN (3X5)

93500-03005-0A

$1.49

59

SCREW, PAN (4X25)

93500-04025-0A

$1.93

60

SCREW, PAN (5X16)

93500-05016-0A

$1.49

61

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

61

SCREW, PAN (6X35)

93500-06035-0A

$1.49

63

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

63

NUT, HEX. (6MM)

94001-06200-0S

$1.49

63

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

64

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

64

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

64

WASHER, PLAIN (6MM)

94101-06800

$1.49

65

WASHER, SPRING (6MM)

94111-06000

$1.49

66

PIN, LOCK (6MM)

94251-06000

$1.49

67

BULK HOSE, FUEL (4.5X3000) (4.5X160)

95001-45003-60M

$36.67

68

CLIP, TUBE (B8)

95002-02080

$1.80
