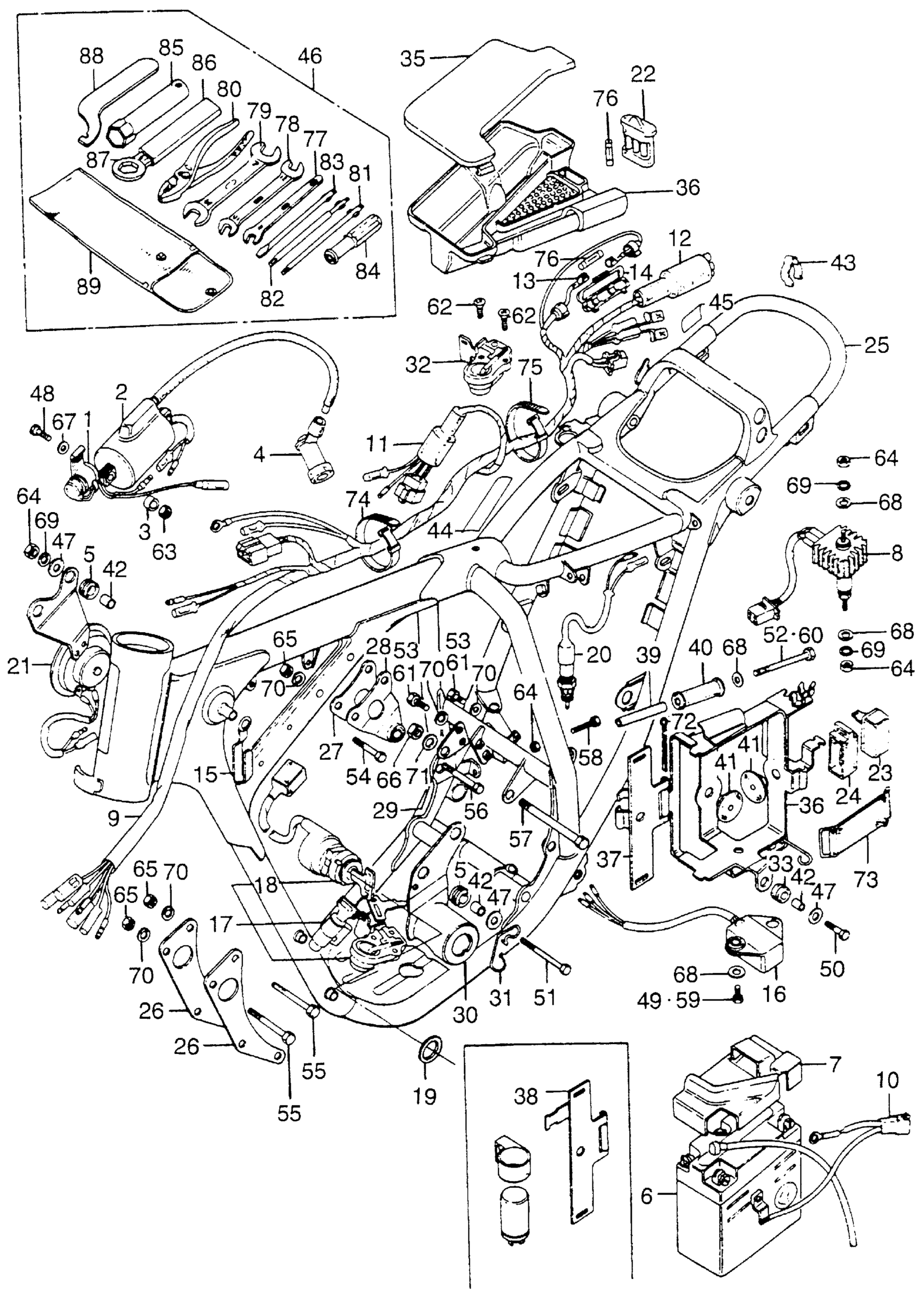

Honda XL175K1A MOTORCYCLE, JPN, VIN# XL175-2000001 FRAME + WIRE HARNESS + TOOLS Diagram

#

Description
Price

1

CONDENSER ASSY. (NOT AVAILABLE)

30250-362-000

Unavailable

2

COIL, IGNITION (NOT AVAILABLE)

30500-362-000

Unavailable

3

COLLAR, IGNITION COIL SETTING This part replaces 30507-107-000.

30507-441-000

$2.88

3

COLLAR, IGNITION COIL SETTING

30507-441-000

$2.88

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$16.05

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$16.05

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$16.05

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$16.05

5

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.14

5

RUBBER, REGULATOR CUSHION

31403-323-000

$3.14

6

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-329-671.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

6

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable

7

COVER, BATTERY (NOT AVAILABLE)

31532-329-000

Unavailable

8

RECTIFIER ASSY.

31700-455-671

Unavailable

9

WIRE HARNESS A (NOT AVAILABLE) | Use up to Frame SN 2010095 This part replaces 32100-362-000.

32100-362-680

Unavailable

9

WIRE HARNESS A (NOT AVAILABLE)

32100-362-680

Unavailable

10

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-329-000

Unavailable

11

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

12

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.52

13

CONNECTOR, FUSE

32112-230-000

$3.22

14

CASE, FUSE (NOT AVAILABLE)

32120-323-000

Unavailable

15

CLIP, WIRE HARNESS (NOT AVAILABLE)

32171-329-000

Unavailable

16

REGULATOR ASSY., POINTLESS (KOKUSAN)

33140-121-003

Unavailable

17

SWITCH KIT, MAIN (NOT AVAILABLE)

35030-362-007

Unavailable

18

SWITCH, MAIN (NOT AVAILABLE)

35100-362-007

Unavailable

20

SWITCH ASSY., RR. STOP

35350-KJ9-405

$15.24

20

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$15.24

20

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$15.24

21

HORN ASSY. (NOT AVAILABLE)

38100-362-000

Unavailable

22

CASE, FUSE (NOT AVAILABLE) This part replaces 38205-323-000.

38206-431-000

Unavailable

23

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$39.75

23

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$39.75

23

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$39.75

23

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$39.75

23

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$39.75

23

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$39.75

24

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

25

FRAME *NH1* (BLACK) This part replaces 50100-362-672B.

50100-362-673B

Unavailable

25

FRAME *NH1* (BLACK)

50100-362-673B

Unavailable

26

PLATE, FR. ENGINE HANGER

50352-362-000

Unavailable

27

PLATE, R. ENGINE HANGER (UPPER) *NH1* (BLACK)

50354-286-000B

Unavailable

28

PLATE, L. ENGINE HANGER (UPPER) *NH1* (BLACK)

50355-286-000B

Unavailable

29

PLATE, RR. ENGINE HANGER

50355-362-000

Unavailable

30

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-362-000

Unavailable

31

CLIP, TACHOMETER CABLE (NOT AVAILABLE)

50402-362-000

Unavailable

32

LOCK ASSY., SEAT (HONDALOCK)

77230-107-711

Unavailable

33

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.57

34

TRAY, TOOL

83501-362-000

Unavailable

35

COVER, TOOL TRAY (NOT AVAILABLE)

83502-362-000

Unavailable

36

BOX, BATTERY (NOT AVAILABLE)

83600-362-000

Unavailable

37

PLATE, BATTERY BOX HINGE | Use up to Frame SN 2010095

83602-362-000

Unavailable

38

PLATE, BATTERY BOX HINGE (NOT AVAILABLE) | Use from Frame SN 2010096 to 2010095

83602-362-680

Unavailable

39

COLLAR, BATTERY BOX SET | Use up to Frame SN 2010095

83612-362-000

Unavailable

40

RUBBER, BATTERY BOX MOUNT | Use up to Frame SN 2010095

83613-362-000

Unavailable

41

RUBBER, BATTERY BOX | Use up to Frame SN 2010095

83618-323-000

$2.36

42

COLLAR, NUMBER BRACKET SETTING | Use up to Frame SN 2010095

84706-286-000

$2.80

43

HOLDER, WIRE (NOT AVAILABLE) | Use up to Frame SN 2010095

84711-362-000

Unavailable

44

LABEL, MUFFLER CAUTION

87504-028-670

$2.80

45

LABEL, HELMET HOLDER

87511-323-670

$2.48

46

TOOL SET (NOT AVAILABLE)

89010-362-000

Unavailable

47

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

48

BOLT, HEX. (5X35)

92000-05035-4J

Unavailable

49

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

49

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

50

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

50

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

51

BOLT, HEX. (6X56) (NOT AVAILABLE) This part replaces 92000-06056.

92000-06056-0A

Unavailable

51

BOLT, HEX. (6X56) (NOT AVAILABLE)

92000-06056-0A

Unavailable

52

BOLT, HEX. (6X65) This part replaces 92000-06065.

92101-06065-0A

Unavailable

53

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

53

BOLT, HEX. (8X16)

92101-08016-0A

$1.35

54

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$0.88

54

BOLT, HEX. (8X35)

92101-08035-0A

$0.88

54

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$0.88

55

BOLT, HEX. (8X65) This part replaces 92000-08065-0A.

92101-08065-0A

Unavailable

55

BOLT, HEX. (8X65)

92101-08065-0A

Unavailable

56

BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08085-0A.

92101-08085-0A

Unavailable

56

BOLT, HEX. (8X85) (SOURCE: VINTAGE PARTS INC.)

92101-08085-0A

Unavailable

57

BOLT, HEX. (10X120) This part replaces 92000-10120-0A.

92101-10120-0A

$3.45

57

BOLT, HEX. (10X120)

92101-10120-0A

$3.45

58

BOLT, HEX. (6X25) This part replaces 92023-06025.

92025-06025-0A

$0.96

58

BOLT, HEX. (6X25) This part replaces 92023-06025-0A.

92025-06025-0A

$0.96

58

BOLT, HEX. (6X25)

92025-06025-0A

$0.96

62

SCREW, FLAT (6X12)

93600-06012-0G

$0.97

62

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$0.97

63

NUT, HEX. (5MM)

94001-05000-0S

$2.42

64

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

64

NUT, HEX. (6MM)

94001-06200-0S

$1.19

64

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

65

NUT, HEX. (8MM)

94001-08000-0S

$1.19

66

NUT, HEX. (10MM)

94001-10000-0S

$1.32

67

WASHER, PLAIN (5MM)

94101-05000

$0.90

68

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

68

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

68

WASHER, PLAIN (6MM)

94101-06800

Unavailable

69

WASHER, SPRING (6MM)

94111-06000

$0.86

70

WASHER, SPRING (8MM)

94111-08000

$0.90

71

WASHER, SPRING (8MM)

94111-10000

$1.22

72

PIN, COTTER (3.0X45)

94201-30450

$0.94

73

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$4.92

73

BAND B2, BATTERY

95012-13001

$4.92

74

BAND B2, CABLE HARNESS

95014-62200

$1.93

75

BAND B3, CABLE HARNESS

95014-62300

$2.04

76

FUSE A (15A)

98200-11500

$0.83

77

WRENCH (8MM) (OPEN END)

99001-08000

$5.51

78

WRENCH (10X12) (OPEN END)

99001-10120

$4.36

79

WRENCH (14X17) (OPEN END)

99001-14170

$6.96

80

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$12.19

81

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.05

82

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.05

83

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.05

84

GRIP

99003-50000

$3.05

85

WRENCH, BOX (P21)

99004-21001

$3.04

86

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.76

87

WRENCH, EYE (19MM)

99006-19000

$3.75

88

WRENCH, PIN (45MM) (OPEN END)

99007-45000

$3.08

89

BAG, TOOL

89101-ME5-670

Unavailable

89

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable
