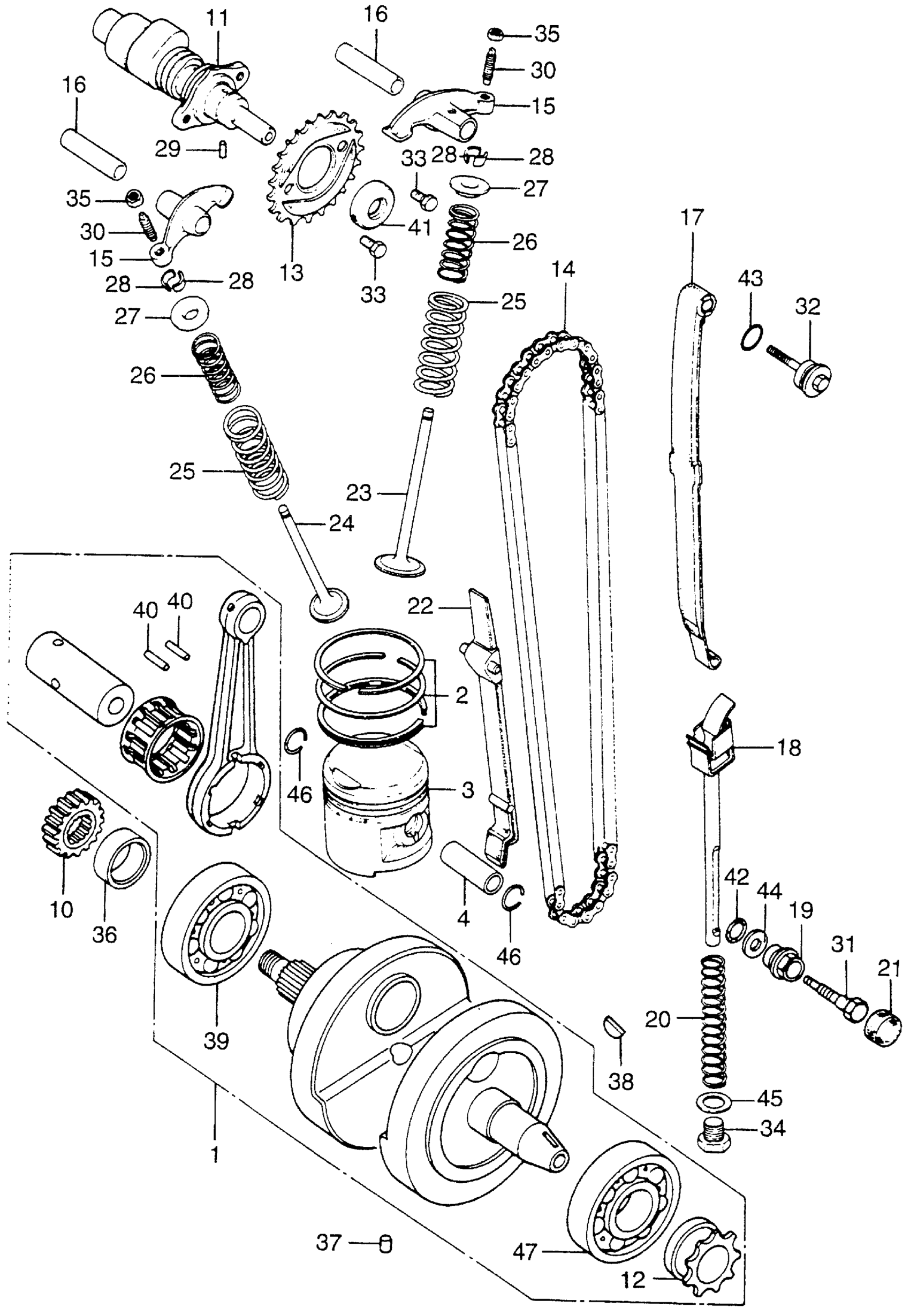

Honda XL175K1A MOTORCYCLE, JPN, VIN# XL175-2000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-362-000

Unavailable

2

RING SET, PISTON (STD) (RIKEN) This part replaces 13011-287-305.

13011-391-004

Unavailable

2

RING SET, PISTON (STD) (RIKEN)

13011-391-004

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) | (Optional). This part replaces 13021-287-305.

13021-391-004

Unavailable

2

RING SET, PISTON (OS 0.25) (RIKEN) | (Optional).

13021-391-004

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) (RIKEN) | (Optional). This part replaces 13031-287-305.

13031-391-004

Unavailable

2

RING SET, PISTON (OS 0.50) (RIKEN) | (Optional).

13031-391-004

Unavailable

2

RING (OS) (0.75) | (Optional). This part replaces 13041-287-305.

13041-391-004

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional). This part replaces 13051-287-305.

13051-391-004

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-391-004

Unavailable

3

PISTON (STD) (NOT AVAILABLE) This part replaces 13101-362-000.

13101-391-000

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-362-000

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-362-000

Unavailable

3

PISTON (OS 0.75) (NOT AVAILABLE) | (Optional). This part replaces 13104-362-000.

13104-391-000

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). This part replaces 13105-362-000.

13105-391-000

Unavailable

4

PIN, PISTON

13111-KR9-000

Unavailable

4

PIN, PISTON This part replaces 13111-287-000.

13111-KR9-000

Unavailable

10

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

13611-362-000

Unavailable

11

CAMSHAFT (NOT AVAILABLE)

14101-362-000

Unavailable

12

SPROCKET, TIMING

14312-362-300

Unavailable

13

SPROCKET, CAM

14321-362-000

$51.56

14

CHAIN, CAM

14401-362-003

Unavailable

15

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-362-000

Unavailable

16

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-362-000

Unavailable

17

TENSIONER, CAM CHAIN

14500-362-000

Unavailable

18

BAR, CAM CHAIN TENSIONER SETTING

14510-362-000

Unavailable

19

NUT, CAM CHAIN TENSIONER SETTING (NOT AVAILABLE)

14515-329-000

Unavailable

20

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-329-000

Unavailable

21

CAP, CAM CHAIN TENSIONER SETTING BOLT (NOT AVAILABLE) This part replaces 14561-329-000.

14561-391-000

Unavailable

22

GUIDE, CAM CHAIN (NOT AVAILABLE) This part replaces 14611-329-000.

14611-376-000

Unavailable

22

GUIDE, CAM CHAIN (NOT AVAILABLE)

14611-376-000

Unavailable

23

VALVE, IN. (NOT AVAILABLE)

14711-362-000

Unavailable

24

VALVE, EX. (NOT AVAILABLE)

14721-362-000

Unavailable

25

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-362-000

Unavailable

26

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-362-000

Unavailable

27

RETAINER, VALVE SPRING (NOT AVAILABLE) | Use up to Engine SN 2008516 This part replaces 14771-286-020.

14771-369-010

Unavailable

27

RETAINER, VALVE SPRING (NOT AVAILABLE) This part replaces 14771-369-000.

14771-369-010

Unavailable

27

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-369-010

Unavailable

28

COTTER, VALVE (NOT AVAILABLE)

14781-286-020

Unavailable

29

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

30

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

30

SCREW, TAPPET ADJ.

90012-426-000

$5.94

31

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90018-329-000

Unavailable

32

BOLT, TENSIONER (NOT AVAILABLE)

90019-329-000

Unavailable

33

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

33

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

34

BOLT, DRAIN (NOT AVAILABLE)

90107-538-010

Unavailable

35

NUT, TAPPET ADJ.

90206-250-000

$2.94

36

COLLAR, DRIVE GEAR DISTANCE (NOT AVAILABLE)

90456-362-000

Unavailable

37

PIN, DOWEL (7X12) (NOT AVAILABLE)

90708-286-000

Unavailable

38

KEY, WOODRUFF

90741-253-000

Unavailable

39

BEARING, BALL (6306)

91001-286-003

Unavailable

40

ROLLER (3X12.5)

91102-286-000

Unavailable

41

OIL SEAL (15X27X7)

91207-329-003

Unavailable

42

O-RING (4.9X2.5) This part replaces 91301-283-005.

91301-426-010

$3.60

42

O-RING (4.9X2.5) This part replaces 91301-393-000.

91301-426-010

$3.60

42

O-RING (4.9X2.5)

91301-426-010

$3.60

43

O-RING (13X2.5)

91319-300-000

$5.07

44

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

44

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

44

WASHER, PLAIN (6MM)

94101-06800

$1.49

45

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

46

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

47

BEARING, RADIAL BALL (6306)

96100-63063

Unavailable
