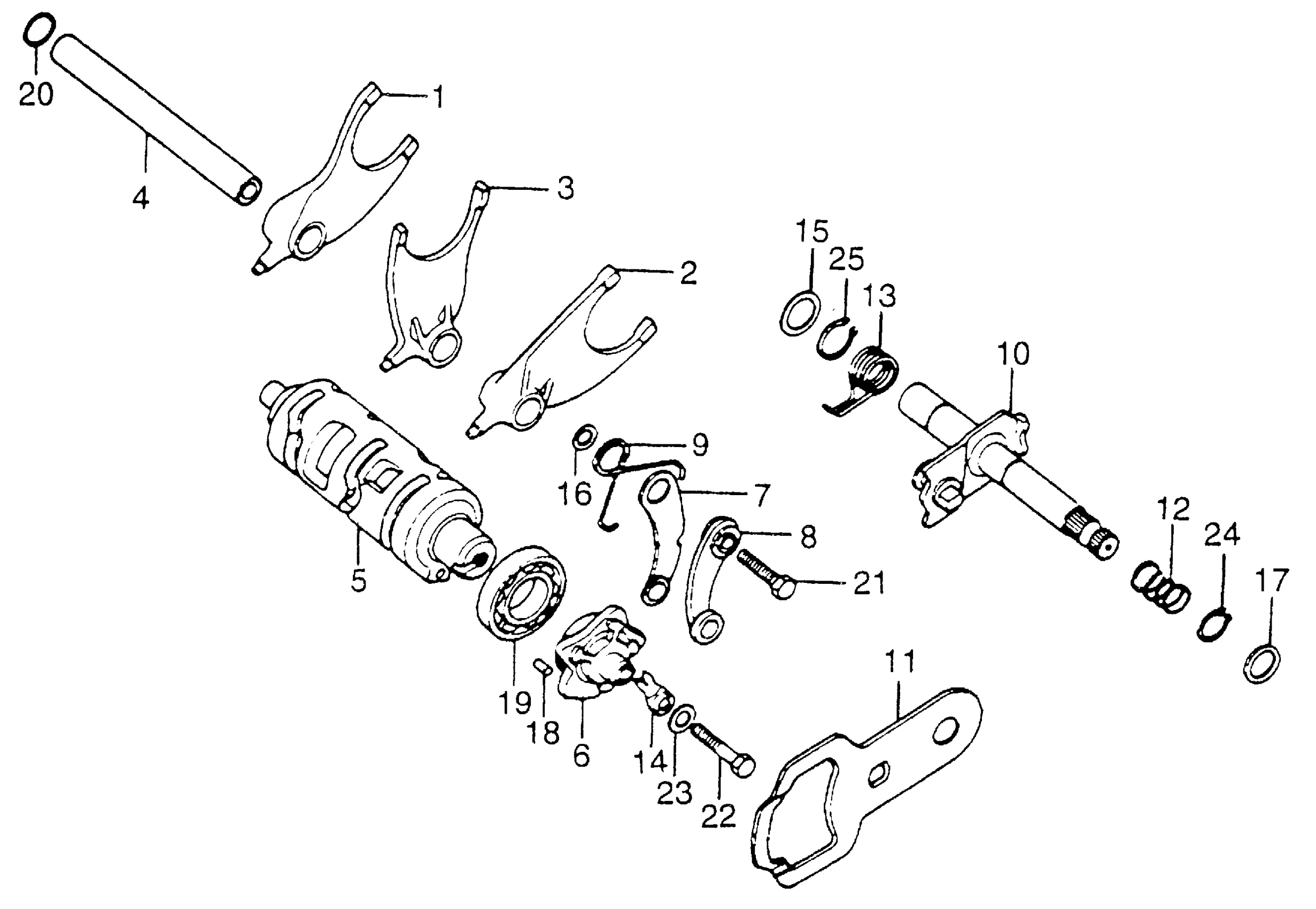

Honda XL175A (78) MOTORCYCLE, JPN, VIN# XL175-4200004 TO XL175-4206370 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-391-000

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24212-362-000

Unavailable

3

FORK, CENTER GEARSHIFT

24213-362-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24265-362-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-362-000

Unavailable

6

CAM, GEARSHIFT

24411-362-000

Unavailable

7

ARM, NEUTRAL STOPPER (NOT AVAILABLE)

24420-362-000

Unavailable

8

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-362-010

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-391-000

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-362-000

$51.79

11

PLATE, GEARSHIFT

24621-107-760

$13.51

12

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

13

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-362-000

Unavailable

14

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-362-000

Unavailable

15

WASHER, THRUST (14MM)

90451-001-000

$3.67

16

WASHER (6MM) (NOT AVAILABLE)

90453-216-000

Unavailable

17

WASHER (12MM)

90452-ZG0-000

$1.49

17

WASHER (12MM) This part replaces 90457-500-000.

90452-ZG0-000

$1.49

18

PIN, KNOCK (3X6.5)

90710-551-000

Unavailable

19

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

20

O-RING (13X2.5)

91319-300-000

$5.07

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

22

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

25

CIRCLIP, OUTER (14MM)

94510-14000

$1.49
