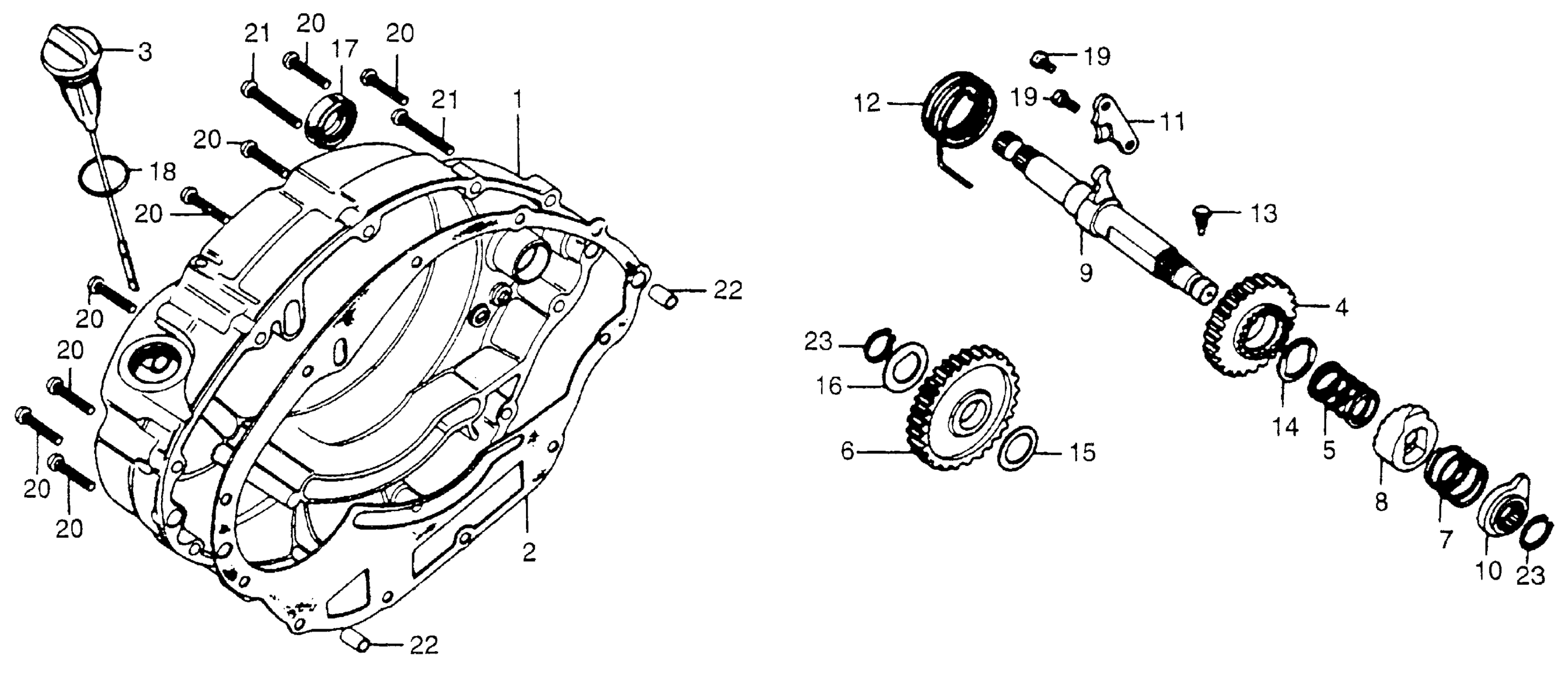

Honda XL175A (78) MOTORCYCLE, JPN, VIN# XL175-4200004 TO XL175-4206370 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-391-000

Unavailable

GASKET, R. This part replaces 11394-391-000.

11394-391-306

Unavailable

DIPSTICK, OIL (NOT AVAILABLE)

15650-362-000

Unavailable

PINION, KICK STARTER

28211-362-000

Unavailable

SPRING, STARTER PINION SETTING (NOT AVAILABLE)

28215-216-000

Unavailable

GEAR, IDLE KICK STARTER (NOT AVAILABLE)

28220-391-000

Unavailable

SPRING, KICK STARTER RATCHET (NOT AVAILABLE)

28223-314-000

Unavailable

RATCHET, KICK STARTER

28223-362-010

Unavailable

SPINDLE, KICK STARTER (NOT AVAILABLE)

28251-362-000

Unavailable

RETAINER, KICK STARTER (NOT AVAILABLE)

28258-362-000

Unavailable

PLATE, RACHET GUIDE (NOT AVAILABLE)

28259-391-000

Unavailable

SPRING, KICK STARTER (NOT AVAILABLE)

28261-391-000

Unavailable

BOLT, STOPPER (6MM) (NOT AVAILABLE)

90081-362-010

Unavailable

WASHER, THRUST (20MM) (NOT AVAILABLE)

90451-216-000

Unavailable

WASHER, THRUST (16MM)

90453-235-000

$1.83

WASHER, THRUST (16MM) (NOT AVAILABLE)

90453-362-000

Unavailable

OIL SEAL (18X29X7)

91204-286-003

$4.31

OIL SEAL (18X29X7) This part replaces 91204-286-005.

91204-286-003

$4.31

O-RING (23X2)

91354-371-000

$3.19

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

SCREW, PAN (6X30)

93500-06030-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49
