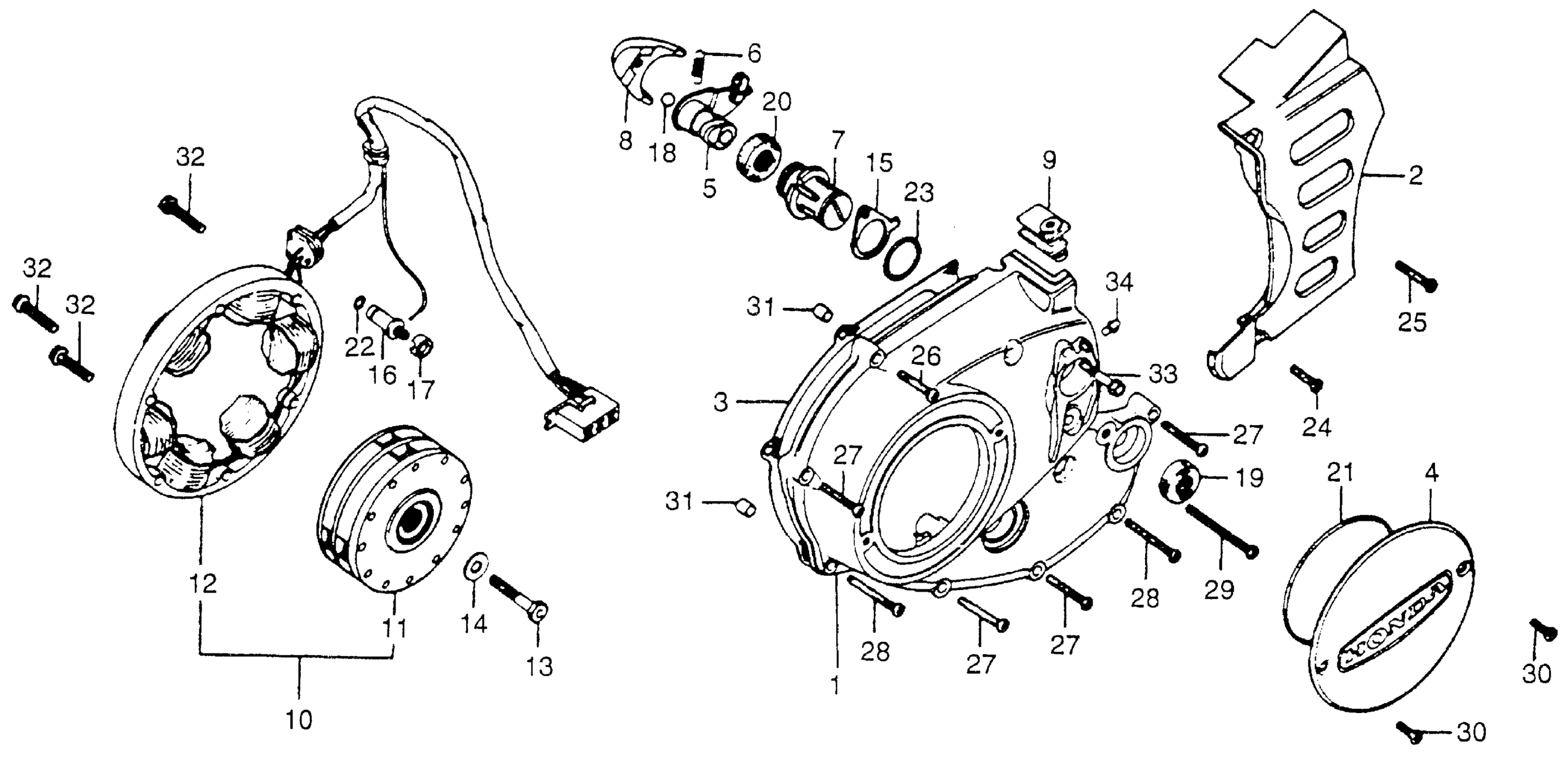

Honda XL175A (78) MOTORCYCLE, JPN, VIN# XL175-4200004 TO XL175-4206370 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-391-000

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11351-391-000

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-391-000

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-362-000.

11395-362-306

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-362-306

Unavailable

4

COVER, ALTERNATOR (NOT AVAILABLE)

11431-110-730

Unavailable

5

THREAD, CLUTCH LIFTER

22810-362-000

Unavailable

6

SPRING, CLUTCH LEVER

22815-362-000

Unavailable

7

ADJUSTER, CLUTCH (NOT AVAILABLE)

22841-216-030

Unavailable

8

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

9

JOINT, CLUTCH WIRE (NOT AVAILABLE)

22875-362-000

Unavailable

10

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-391-004

Unavailable

11

ROTOR (NOT AVAILABLE)

31101-391-004

Unavailable

12

STATOR (NOT AVAILABLE)

31102-391-004

Unavailable

13

BOLT, ALTERNATOR ROTOR MOUNT (DENSO)

31104-128-004

Unavailable

14

WASHER, ALTERNATOR ROTOR MOUNT (DENSO) (NOT AVAILABLE)

31105-128-004

Unavailable

15

CLAMP, NEUTRAL CABLE (NOT AVAILABLE)

32111-362-000

Unavailable

16

CONTACT ASSY., NEUTRAL SWITCH

35750-028-000

Unavailable

17

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-300

Unavailable

18

BALL, STEEL (#10) (5/16) This part replaces 90901-230-000.

96211-10000

$1.49

18

BALL, STEEL (#10) (5/16)

96211-10000

$1.49

19

OIL SEAL (12X25X7)

91201-362-000

$5.55

20

OIL SEAL (20X26X29X8) (NOT AVAILABLE)

91205-222-003

Unavailable

20

OIL SEAL (20X26X29X8) (NOT AVAILABLE) This part replaces 91205-222-005.

91205-222-003

Unavailable

21

O-RING (70X2.4)

91309-302-000

$10.00

22

O-RING (7X1.7)

91312-107-000

$3.18

23

O-RING (23X2)

91354-371-000

$3.19

23

O-RING (23X2) This part replaces 91354-702-000.

91354-371-000

$3.19

23

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

23

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

24

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

24

SCREW, PAN (6X20)

93500-06020-0A

$1.49

25

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

26

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

26

SCREW, PAN (6X28)

93500-06028-0A

$1.49

27

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

27

SCREW, PAN (6X32)

93500-06032-0A

$1.49

28

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

28

SCREW, PAN (6X40)

93500-06040-0A

$1.49

29

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

29

SCREW, PAN (6X55)

93500-06055-0A

$1.49

30

SCREW, OVAL (5X16)

93700-05016-0B

$1.49

31

PIN, DOWEL (8X14)

94301-08140

$2.25

32

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

32

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

33

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

33

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

34

FITTING, GREASE (A.45)

96201-30001

$1.49
