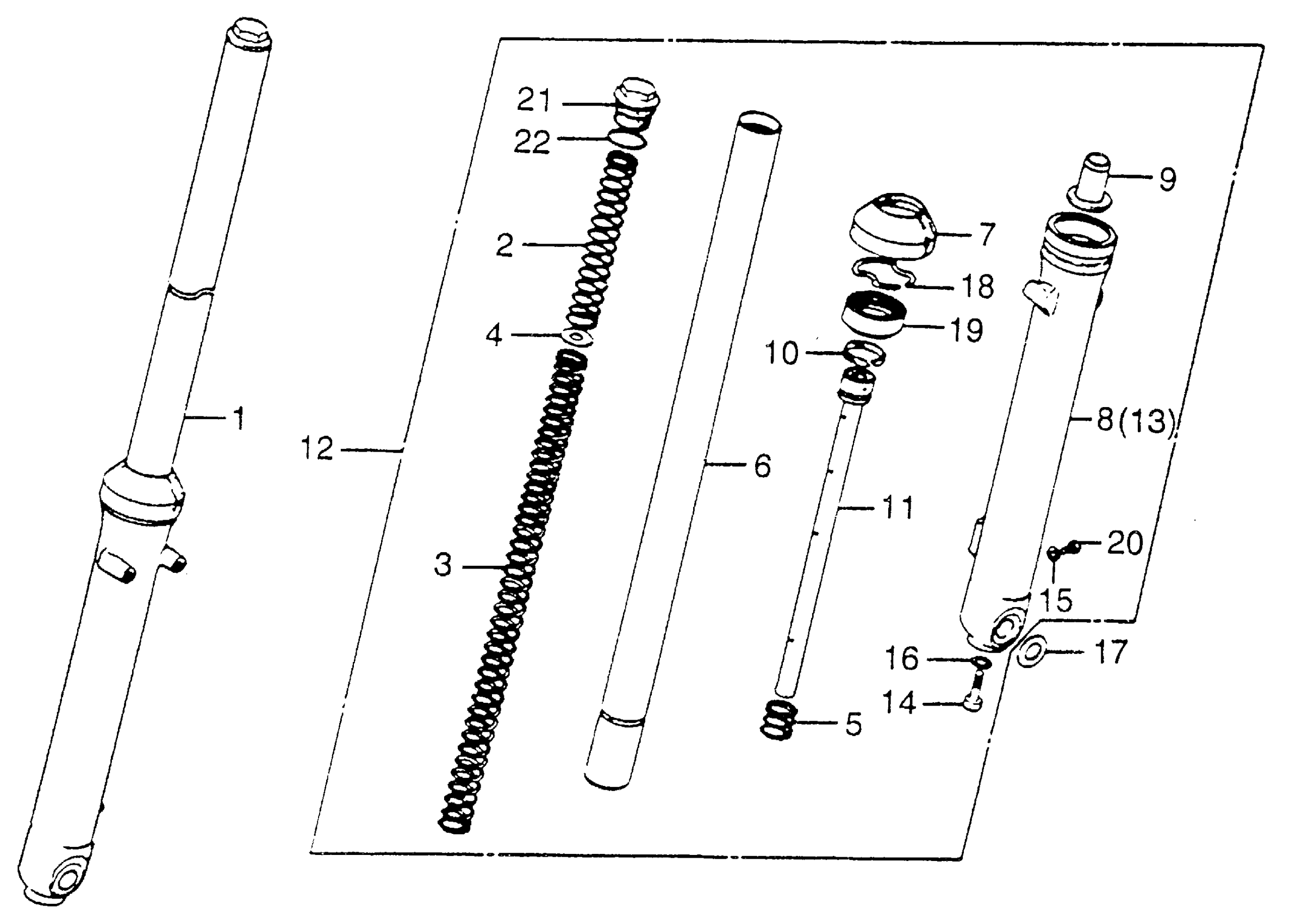

Honda XL175A (78) MOTORCYCLE, JPN, VIN# XL175-4200004 TO XL175-4206370 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-391-690

Unavailable

2

SPRING A, FR. FORK (NOT AVAILABLE)

51401-362-010

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-362-020

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-362-010

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$3.82

6

PIPE, FORK (NOT AVAILABLE)

51420-362-010

Unavailable

7

DUST SEAL (SHOWA) This part replaces 51425-110-003.

91254-436-003

$15.05

7

DUST SEAL (SHOWA)

91254-436-003

$15.05

8

CASE, R. FR. FORK (LOWER)

51431-391-690

Unavailable

9

PIECE, OIL LOCKING

51432-453-000

Unavailable

10

RING, PISTON (NOT AVAILABLE)

51437-331-770

Unavailable

11

PIPE, SEAT

51470-362-000

Unavailable

12

FORK ASSY., L. FR.

51500-391-690

Unavailable

13

CASE, L. FR. FORK (LOWER)

51531-391-690

Unavailable

14

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$4.77

14

BOLT, SOCKET (8X27)

90116-383-721

$4.77

15

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

16

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

17

WASHER, PLAIN (14MM)

94102-14000

$0.59

18

RING, OIL SEAL STOP

90601-354-000

$4.77

19

OIL SEAL SET (FR FORK)

51495-331-405

$17.74

19

OIL SEAL SET (FR FORK) This part replaces 91255-331-671.

51495-331-405

$17.74

20

BOLT, HEX. (6X8) This part replaces 92000-06008-02.

92101-06008-0B

$1.67

20

BOLT, HEX. (6X8) This part replaces 92100-06008-0B.

92101-06008-0B

$1.67

20

BOLT, HEX. (6X8)

92101-06008-0B

$1.67

21

BOLT D1, FORK

94605-27101

$7.45

22

O-RING (23X2.4)

94608-30000

$1.09
