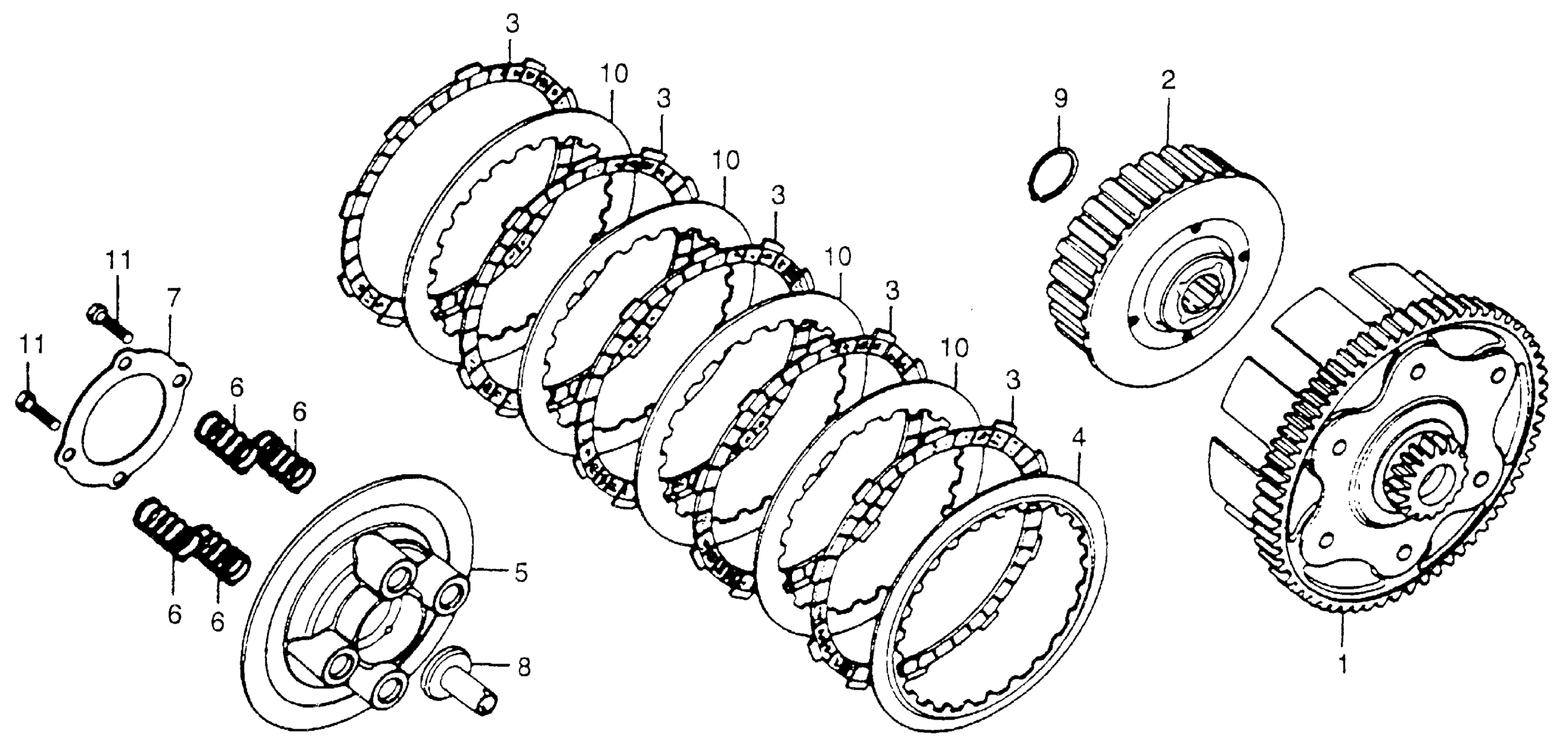

Honda XL175A (78) MOTORCYCLE, JPN, VIN# XL175-4200004 TO XL175-4206370 CLUTCH Diagram

#

Description

Price

1

CLUTCH (OUTER)

22100-362-010

Unavailable

2

CLUTCH, CENTER

22120-216-010

Unavailable

3

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

3

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

3

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

4

PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22321-302-000.

22321-235-000

Unavailable

5

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22351-235-000

Unavailable

6

SPRING, CLUTCH

22401-362-000

Unavailable

7

PLATE, CLUTCH SPRING RETAINER (NOT AVAILABLE)

22408-230-000

Unavailable

8

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-202-010

Unavailable

8

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-216-000

Unavailable

9

RING A SET (20MM) (NOT AVAILABLE)

22903-200-000

Unavailable

10

PLATE A, CLUTCH

23311-200-000

$12.22

11

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

11

BOLT, HEX. (6X20)

92101-06020-0A

$1.49
