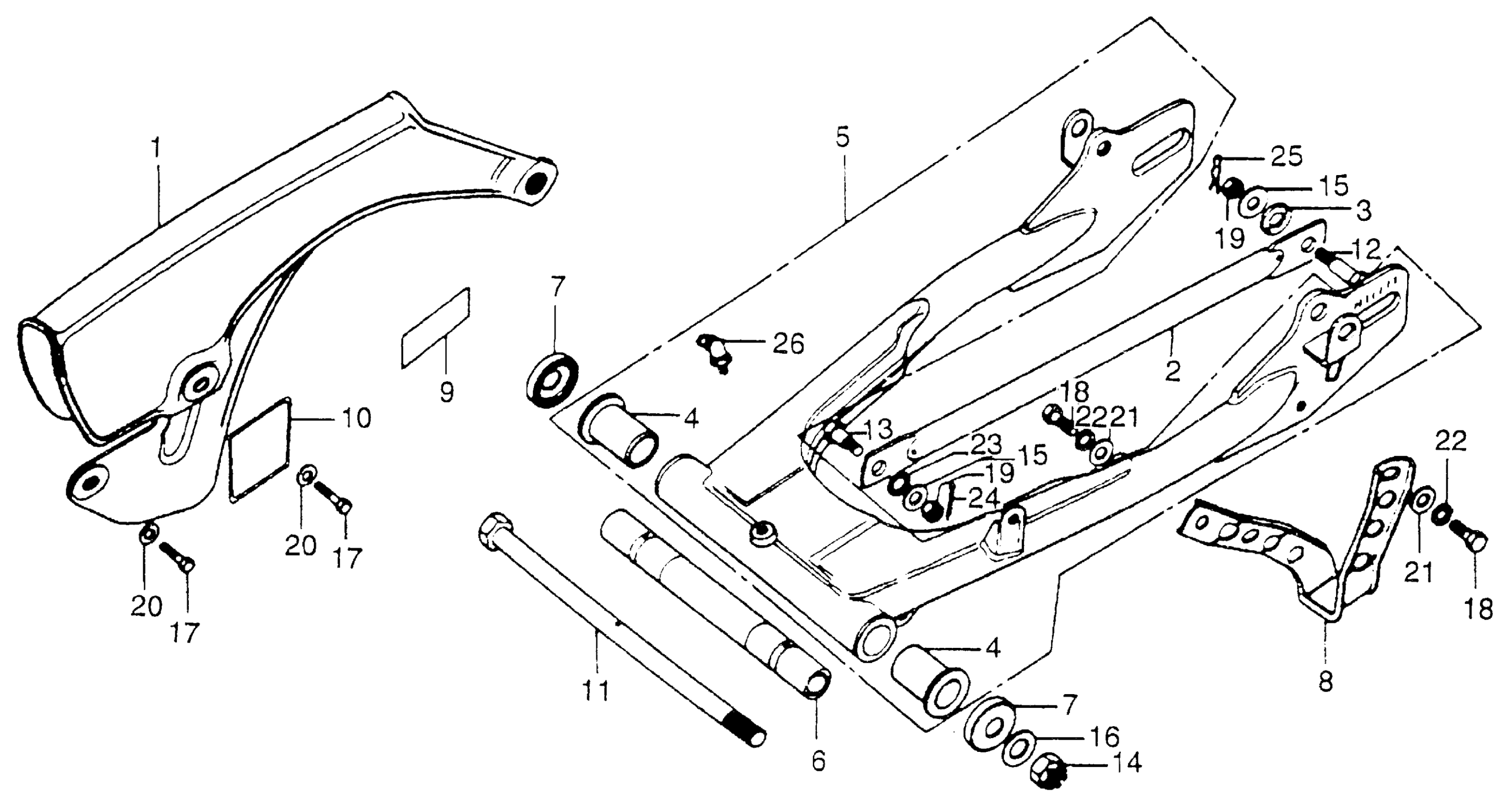

Honda XL175A (77) MOTORCYCLE, JPN, VIN# XL175-4100001 TO XL175-4102000 SWINGARM + DRIVE CHAIN Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-362-000

Unavailable

2

ARM, RR. BRAKE STOPPER

43431-362-010

Unavailable

3

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

4

BUSH, SWINGARM PIVOT

52108-457-300

Unavailable

5

SWINGARM ASSY., RR. *NH1* (BLACK)

52110-391-670ZA

Unavailable

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE) This part replaces 52141-391-670.

52141-391-671

Unavailable

6

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-391-671

Unavailable

7

CAP, DUST SEAL

52144-362-000

Unavailable

8

GUIDE, CHAIN

52156-391-670

Unavailable

9

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-391-670

Unavailable

10

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-391-670

Unavailable

11

BOLT, RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-356-000

Unavailable

12

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

12

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

13

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

14

NUT, LOCK (14MM)

90354-268-000

$6.78

15

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

16

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

16

WASHER (14X26)

90527-634-670

Unavailable

17

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

17

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

18

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

18

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94102-08000

$1.49

22

WASHER, SPRING (8MM)

94111-08000

$1.49

23

WASHER, SPRING (10MM)

94111-10000

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, SPLIT (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, COTTER (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

25

PIN, LOCK (8MM)

94251-08000

$1.49

26

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
