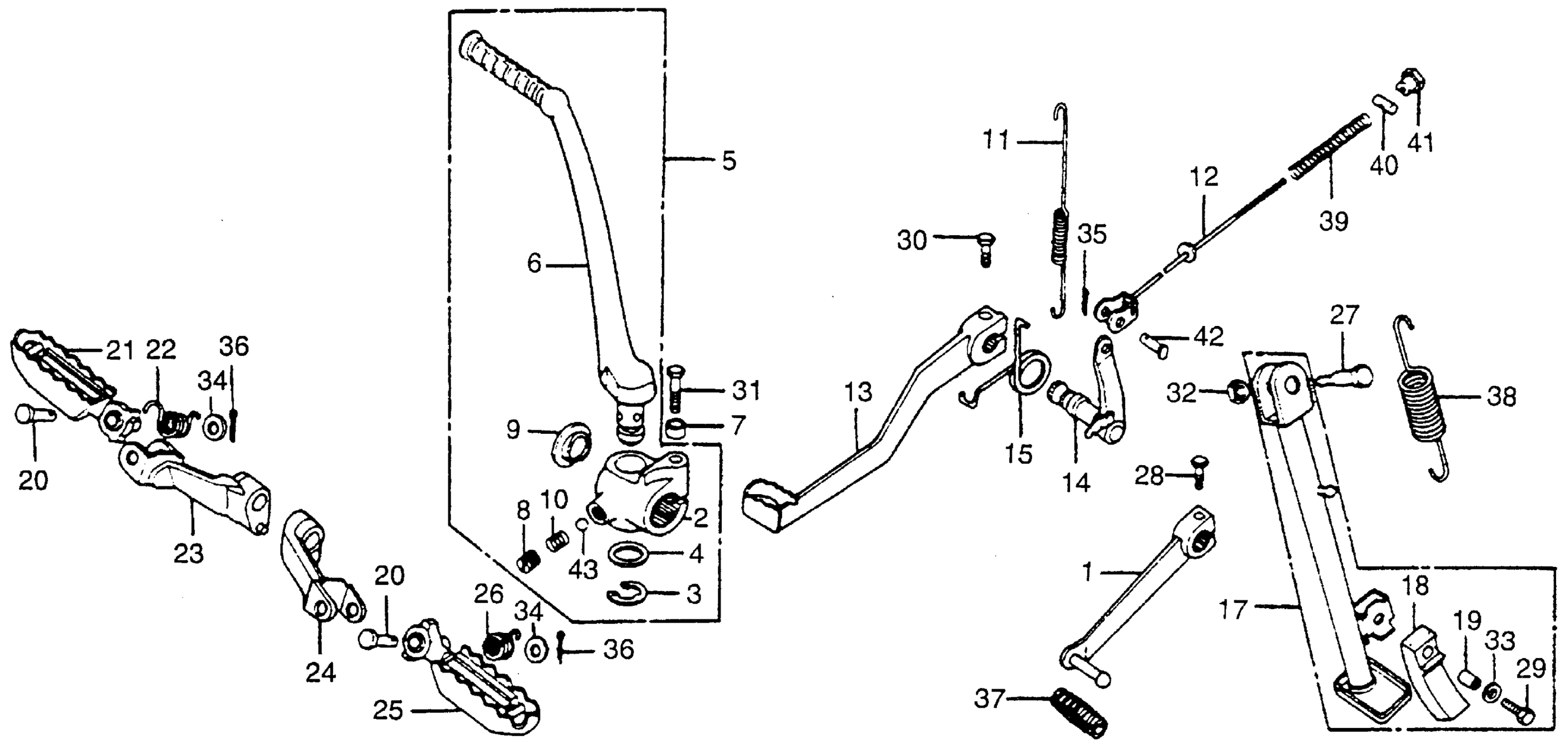

Honda XL175A (77) MOTORCYCLE, JPN, VIN# XL175-4100001 TO XL175-4102000 PEDAL + STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-391-690.

24701-391-690

Unavailable

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-391-690

Unavailable

2

JOINT, KICK ARM This part replaces 28241-362-000.

28241-388-000

Unavailable

3

CLIP, KICK STARTER ARM

28293-333-000

$2.67

4

WASHER, KICK STARTER ARM (NOT AVAILABLE)

28294-333-000

Unavailable

5

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-391-670

Unavailable

6

ARM, KICK STARTER (NOT AVAILABLE)

28301-391-670

Unavailable

7

COLLAR, KICK STOPPER (NOT AVAILABLE)

28302-369-000

Unavailable

8

BOLT, KICK ARM (NOT AVAILABLE)

28303-310-010

Unavailable

9

CAP, KICK ARM (NOT AVAILABLE)

28305-310-000

Unavailable

10

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-310-000

Unavailable

11

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-286-010

Unavailable

12

ROD, RR. BRAKE

43451-GK4-970

Unavailable

12

ROD, RR. BRAKE This part replaces 43451-362-010.

43451-GK4-970

Unavailable

13

PEDAL, BRAKE

46500-391-690

Unavailable

14

SHAFT, RR. BRAKE PIVOT

46510-362-000

$29.85

15

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-362-000

Unavailable

17

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-391-670

Unavailable

18

RUBBER, STAND

50548-356-700

$10.50

19

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

20

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.46

20

PIN, MAIN STEP BAR JOINT This part replaces 50603-056-000.

50603-GS9-010

$5.46

21

STEP, R. (NOT AVAILABLE)

50616-356-000

Unavailable

22

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

22

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

23

BAR, R. STEP

50625-391-670

Unavailable

24

BAR, L. STEP (NOT AVAILABLE)

50635-362-000

Unavailable

25

STEP, L.

50642-356-000

Unavailable

26

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

26

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

27

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

28

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

28

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

29

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

29

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

30

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

30

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

31

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

31

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

32

NUT, HEX. (10MM)

94030-10000

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

33

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

33

WASHER, PLAIN (6MM)

94101-06800

$1.49

34

WASHER, PLAIN (8MM)

94101-08000

$1.49

35

PIN, SPLIT (1.6X12)

94201-16120

$1.49

36

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

36

PIN, COTTER (1.6X25)

94201-16250

$1.49

37

RUBBER, CHANGE PEDAL

95011-40000

$1.49

38

SPRING, BRAKE PEDAL RETURN This part replaces 95014-72301.

95014-72302

Unavailable

38

SPRING, BRAKE PEDAL RETURN

95014-72302

Unavailable

39

SPRING A, BRAKE ROD

95014-73100

$1.49

39

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

40

JOINT B, BRAKE ARM

95015-32001

$1.49

41

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

42

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

43

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
