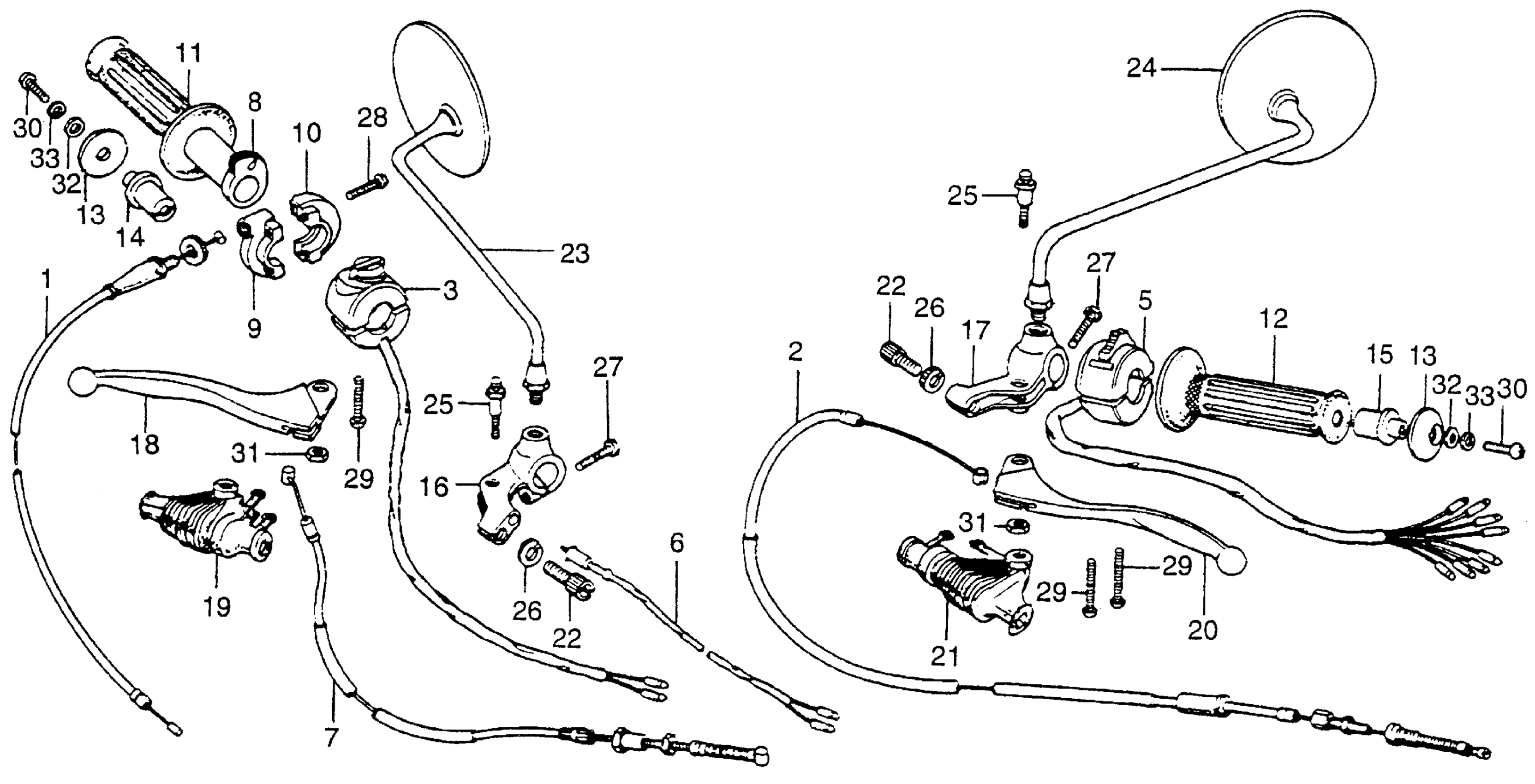

Honda XL175A (77) MOTORCYCLE, JPN, VIN# XL175-4100001 TO XL175-4102000 HANDLE LEVER + SWITCH Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-391-670

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-391-670

Unavailable

3

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-137-671

Unavailable

5

SWITCH, TURN SIGNAL & DIMMER (TOYO)

35200-358-003

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP This part replaces 35340-329-010.

35340-329-003

$17.46

7

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-362-000

Unavailable

8

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-391-670

Unavailable

9

CASE (UPPER)

53143-355-000

Unavailable

10

CASE (LOWER)

53144-355-000

Unavailable

11

GRIP, R. HANDLE (NOT AVAILABLE)

53165-391-670

Unavailable

12

GRIP, L. HANDLE (NOT AVAILABLE)

53166-391-670

Unavailable

13

GUARD, HANDLE END (NOT AVAILABLE)

53167-391-670

Unavailable

14

HOLDER, R. CONTROL LEVER END GUARD

53168-391-670

Unavailable

15

HOLDER, L. END GUARD (NOT AVAILABLE)

53169-391-670

Unavailable

16

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

17

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

18

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$31.02

18

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

19

COVER, R. CONTROL LEVER

53176-329-000

$12.41

20

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

20

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

21

COVER, L. CONTROL LEVER

53179-329-000

$15.07

22

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

23

MIRROR, R.

88110-329-730

Unavailable

24

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

25

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

26

NUT, FIXING

90321-315-670

$7.31

26

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

27

BOLT, HEX. (6X25) This part replaces 93000-06025.

93101-06025-0A

$1.49

27

BOLT, HEX. (6X25) This part replaces 93000-06025-0A.

93101-06025-0A

$1.49

27

BOLT, HEX. (6X25)

93101-06025-0A

$1.49

28

SCREW, PAN (5X20) This part replaces 93500-05020.

93500-05020-0A

$1.49

28

SCREW, PAN (5X20)

93500-05020-0A

$1.49

28

SCREW, PAN (5X20) This part replaces 93520-05020.

93500-05020-0A

$1.49

28

SCREW, PAN (5X20) This part replaces 93520-05020-0A.

93500-05020-0A

$1.49

29

SCREW, PAN (5X30) This part replaces 93500-05028.

93500-05030-0A

$1.49

29

SCREW, PAN (5X30) This part replaces 93500-05030.

93500-05030-0A

$1.49

29

SCREW, PAN (5X30)

93500-05030-0A

$1.49

30

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

30

SCREW, PAN (6X20)

93500-06020-0A

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

32

WASHER, PLAIN (6MM)

94101-06800

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49
