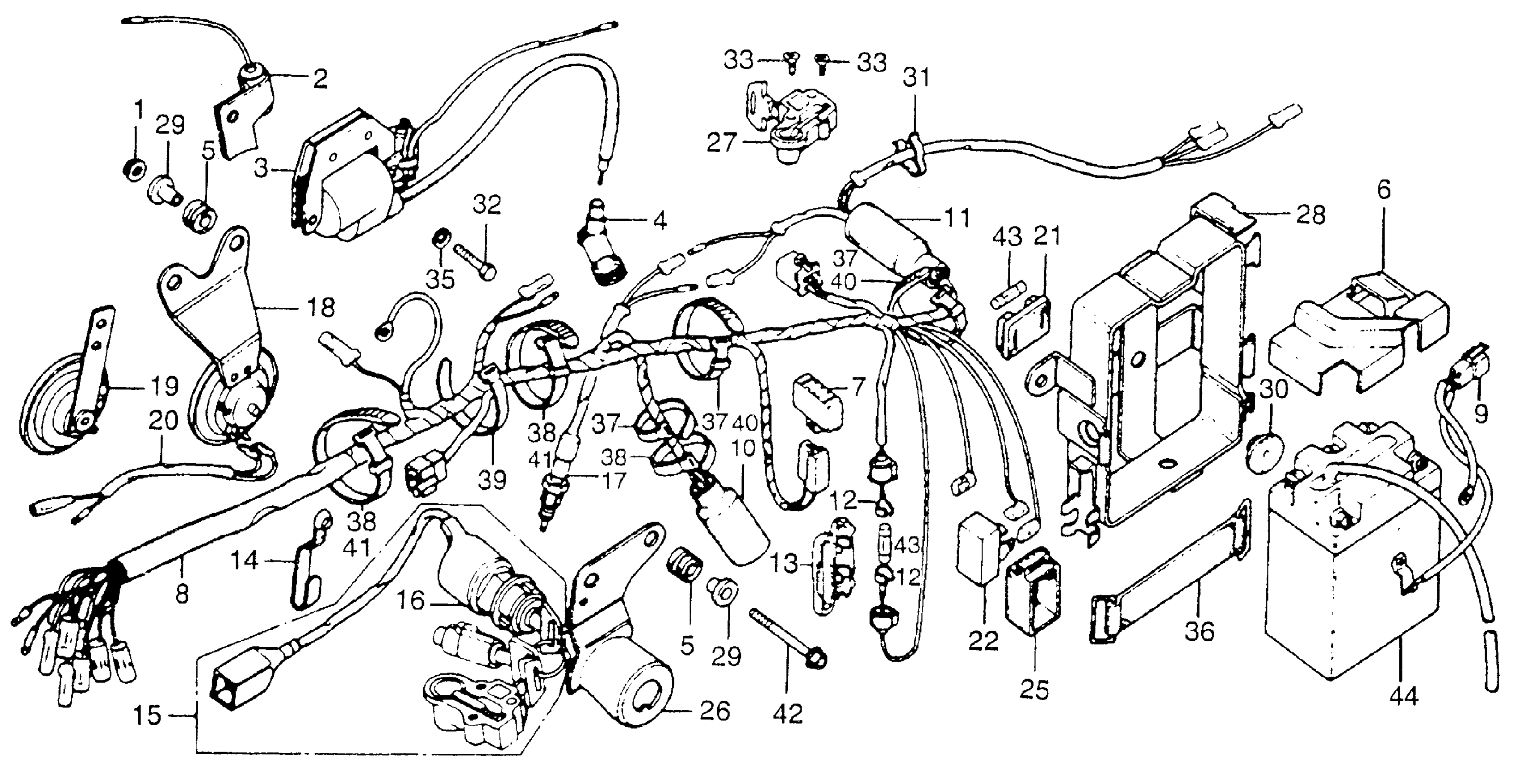

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CONDENSER ASSY. (TOYO)

30250-052-156

Unavailable

3

COIL, IGNITION This part replaces 30500-355-003.

30500-950-405

$118.02

3

COIL, IGNITION

30500-950-405

$118.02

3

COIL, IGNITION This part replaces 30530-355-003.

30500-950-405

$118.02

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

5

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

5

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

6

COVER, BATTERY (NOT AVAILABLE)

31532-329-000

Unavailable

7

RECTIFIER, SILICON (SHINDENGEN) This part replaces 31700-361-008.

31710-371-008

$40.03

7

RECTIFIER, SILICON (SHINDENGEN)

31710-371-008

$40.03

8

WIRE HARNESS (NOT AVAILABLE)

32100-391-000

Unavailable

9

WIRE, BATTERY TERMINAL (NOT AVAILABLE)

32106-329-000

Unavailable

10

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

11

COVER, WIRE HARNESS CONNECTOR

32108-046-750

$3.87

12

CONNECTOR, FUSE

32112-230-000

$3.64

13

CASE, FUSE (NOT AVAILABLE)

32120-323-000

Unavailable

14

CLIP, WIRE HARNESS (NOT AVAILABLE)

32171-329-000

Unavailable

15

LOCK SET (NOT AVAILABLE) | Use up to Frame SN 4013157 This part replaces 35010-391-670.

35010-391-720

Unavailable

15

LOCK SET (NOT AVAILABLE) This part replaces 35010-391-671.

35010-391-720

Unavailable

15

LOCK SET (NOT AVAILABLE)

35010-391-720

Unavailable

16

SWITCH ASSY., COMBINATION (HONDALOCK) (NOT AVAILABLE) | Use up to Frame SN 4013157 This part replaces 35100-391-003.

35100-391-007

Unavailable

16

SWITCH ASSY., COMBINATION (HONDALOCK) (NOT AVAILABLE)

35100-391-007

Unavailable

17

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

17

SWITCH ASSY., RR. STOP | Use from Frame SN 4014620 This part replaces 35350-MC9-830.

35350-KJ9-405

$16.97

17

SWITCH ASSY., RR. STOP | Use from Frame SN 4014620 This part replaces 35350-149-003.

35350-KJ9-405

$16.97

17

SWITCH ASSY., RR. STOP | Use up to Frame SN 4014619 This part replaces 35350-292-003.

35350-KJ9-405

$16.97

17

SWITCH ASSY., RR. STOP | Use up to Frame SN 4014619 This part replaces 35350-336-000.

35350-KJ9-405

$16.97

18

HORN ASSY. (NOT AVAILABLE)

38100-362-000

Unavailable

21

CASE, FUSE (NOT AVAILABLE)

38205-115-000

Unavailable

22

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

22

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

25

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

26

BRACKET, MAIN SWITCH (NOT AVAILABLE)

50375-362-000

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 4013157 This part replaces 77230-377-003.

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 4013157 This part replaces 77230-388-007.

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-007.

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 4013157 This part replaces 77230-388-017.

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) This part replaces 77230-388-017.

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK) | Use up to Frame SN 4013157

77230-399-007

Unavailable

27

LOCK ASSY., SEAT (HONDALOCK)

77230-399-007

Unavailable

28

TRAY, BATTERY (NOT AVAILABLE)

83600-391-670

Unavailable

29

COLLAR, COVER SETTING

83601-357-000

$5.56

30

RUBBER, BATTERY BOX

83618-323-000

$2.47

31

HOLDER, WIRE (NOT AVAILABLE)

84711-362-000

Unavailable

32

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

32

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

33

SCREW, FLAT (6X12)

93600-06012-0G

$1.49

33

SCREW, FLAT (6X12) This part replaces 93600-06012-07.

93600-06012-0G

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

36

BAND B2, BATTERY

95012-13001

$5.28

37

BAND B1, WIRE

32161-404-000

$2.23

37

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

38

BAND A2, CABLE

95014-61200

$2.33

39

BAND A3, WIRE

95014-61300

$1.97

40

BAND B2, CABLE HARNESS

95014-62200

$2.11

41

BAND B3, CABLE HARNESS

95014-62300

$2.25

42

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

42

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

43

FUSE A (10A)

98200-11000

$1.80

44

BATTERY (6N6-3B) This part replaces 31500-324-601.

31500-329-677AH

Unavailable

44

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

44

BATTERY (6N6-3B)

31500-329-677AH

Unavailable

44

BATTERY (6N6-3B) This part replaces 98202-63260.

31500-329-677AH

Unavailable

44

BATTERY (6N6-3B) This part replaces 98203-63250.

31500-329-677AH

Unavailable

44

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable
