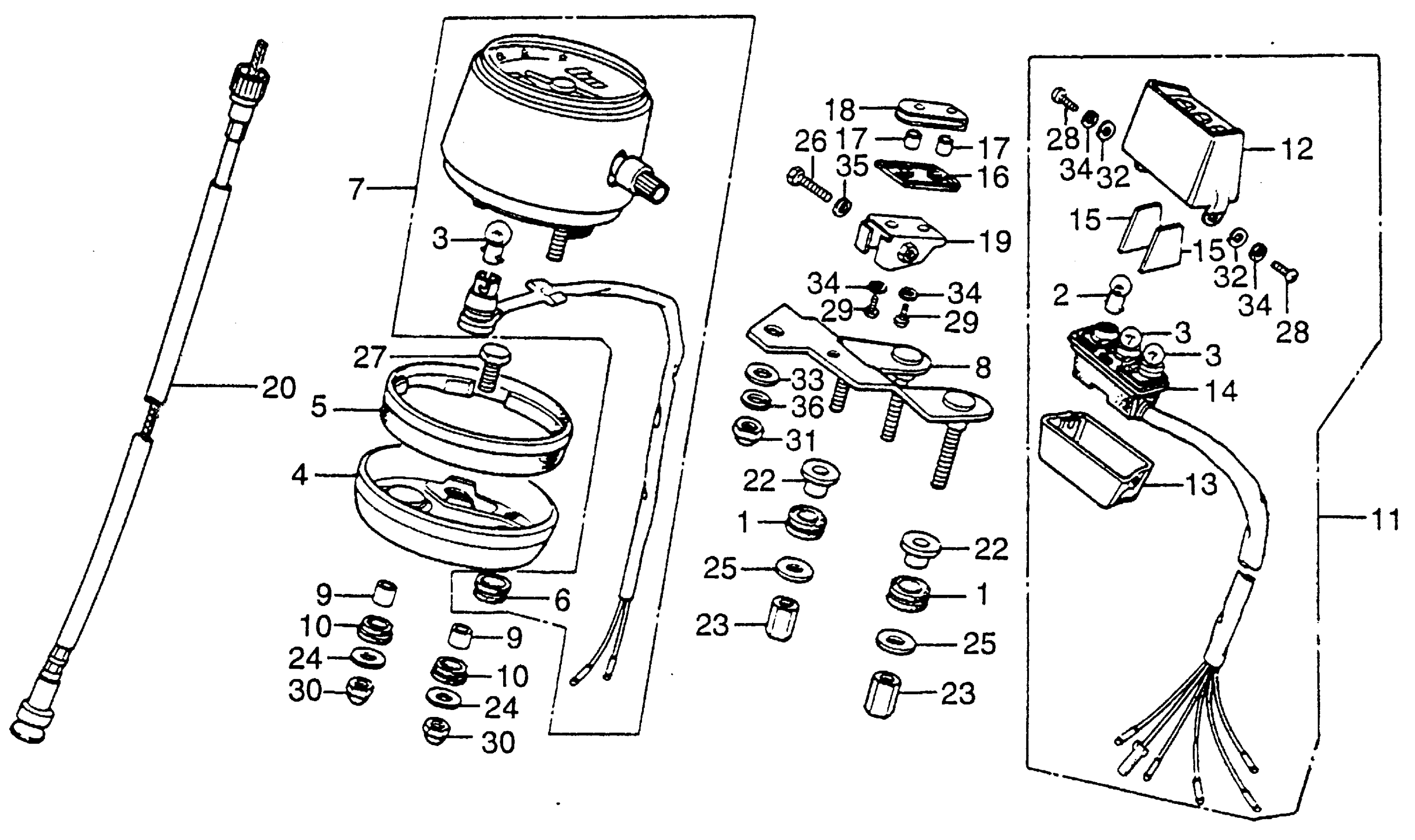

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 SPEEDOMETER Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

BULB, DASH (6V 3W)

34902-202-000

$3.08

3

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

4

RING, L. METER SETTING

37112-453-008

Unavailable

5

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

6

GROMMET, WIRE (NOT AVAILABLE)

37115-453-000

Unavailable

7

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-391-671

Unavailable

8

BRACKET, METER (NOT AVAILABLE)

37211-391-000

Unavailable

9

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

10

RUBBER, METER SETTING

37244-307-670

$2.67

11

BOX ASSY., INDICATOR LAMP (NOT AVAILABLE)

37300-391-003

Unavailable

12

CASE (UPPER) (NOT AVAILABLE)

37310-391-003

Unavailable

13

CASE (LOWER)

37320-391-003

Unavailable

14

SOCKET, RUBBER (NOT AVAILABLE)

37330-391-003

Unavailable

15

PLATE, SEALING (NOT AVAILABLE)

37340-391-003

Unavailable

16

CUSHION, INDICATOR

37345-391-670

Unavailable

17

COLLAR, INDICATOR LAMP

37346-391-670

Unavailable

18

WASHER, INDICATOR LAMP

37347-391-670

Unavailable

19

STAY, INDICATOR LAMP

37360-391-670

Unavailable

20

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) This part replaces 44830-391-000.

44830-391-010

Unavailable

20

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-391-010

Unavailable

22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

22

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

22

COLLAR, RR. FENDER

61105-428-000

Unavailable

23

NUT (6X15)

90282-329-000

$4.67

24

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

25

WASHER (6.5X20)

90545-292-000

$1.77

26

BOLT, HEX. (5X32) (NOT AVAILABLE)

92000-05032-0A

Unavailable

27

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

27

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

28

SCREW, PAN (3X8)

93500-03008-0G

Unavailable

29

SCREW, PAN (3X14) (NOT AVAILABLE)

93500-03014

Unavailable

30

NUT, CAP (6MM)

94021-06020

$1.73

31

NUT, CAP (8MM)

94021-08020-0S

$1.82

32

WASHER, PLAIN (3MM)

94101-03700

$1.49

33

WASHER, PLAIN (8MM)

94101-08000

$1.49

34

WASHER, SPRING (3MM) (NOT AVAILABLE)

94111-03700

Unavailable

35

WASHER, SPRING (5MM)

94111-05000

$1.49

36

WASHER, SPRING (8MM)

94111-08000

$1.49
