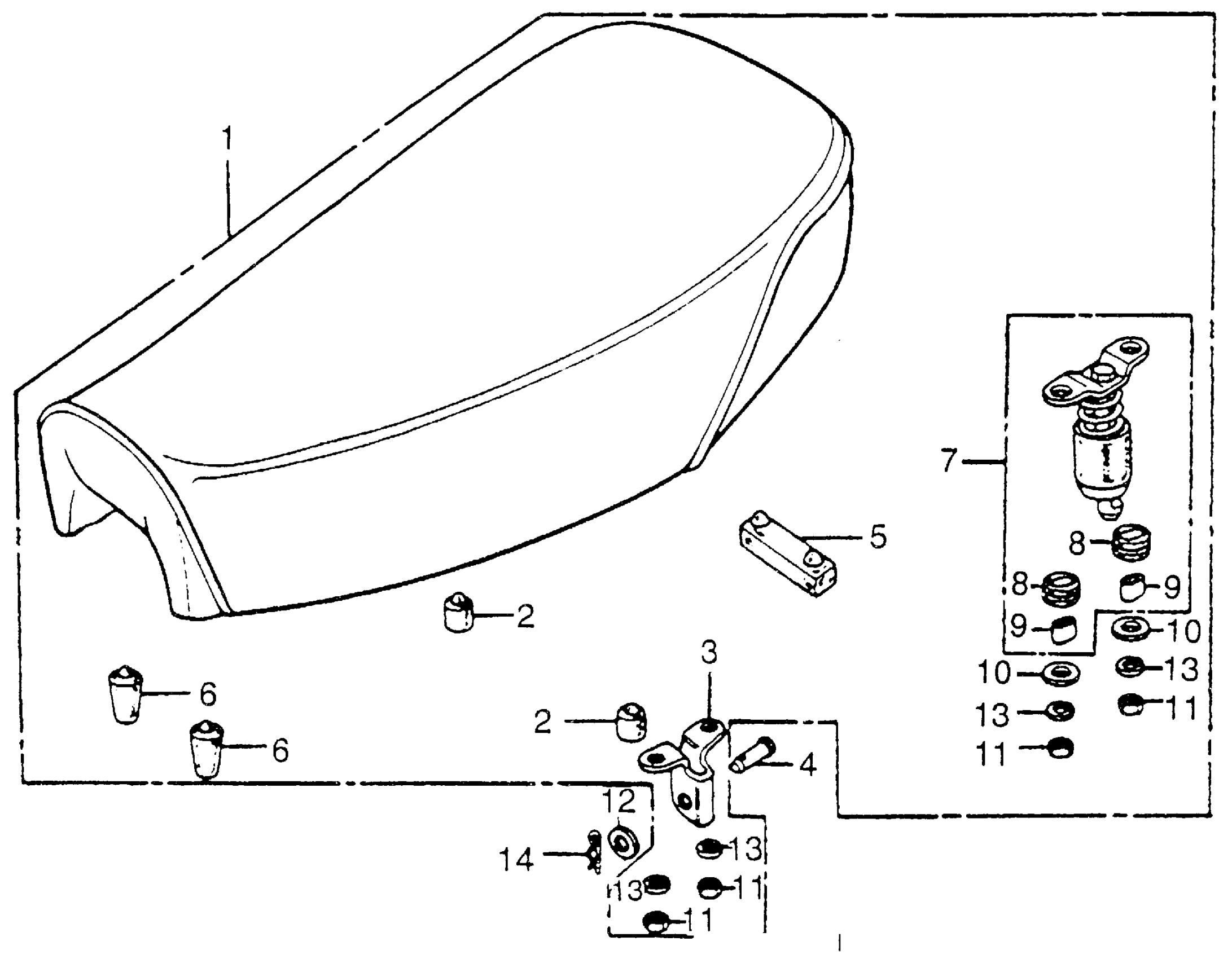

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 SEAT Diagram

#

Description
Price

1

SEAT ASSY. (NOT AVAILABLE)

77100-391-670

Unavailable

2

RUBBER, SEAT CUSHION

77201-074-000

$4.12

3

HINGE, SEAT (NOT AVAILABLE) | Use up to Frame SN 4014519

77201-317-670

Unavailable

3

HINGE, SEAT | Use from Frame SN 4014520

77201-391-690

Unavailable

4

PIN, SEAT HINGE (NOT AVAILABLE) | Use up to Frame SN 4014519

77203-317-670

Unavailable

4

PIN B, BRAKE ROD JOINT | Use from Frame SN 4014520

95015-52000

$2.03

5

RUBBER, SEAT SETTING

77204-312-000

$5.05

6

RUBBER, FR. SEAT MOUNT (NOT AVAILABLE)

77206-391-670

Unavailable

7

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

7

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

8

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

9

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

10

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

10

WASHER, PLAIN (6MM)

94103-06800

$1.49

11

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM)

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

12

WASHER, PLAIN (6MM)

94101-06800

$1.49

13

WASHER, SPRING (6MM)

94111-06000

$1.49

14

PIN, LOCK (6MM)

94251-06000

$1.49
