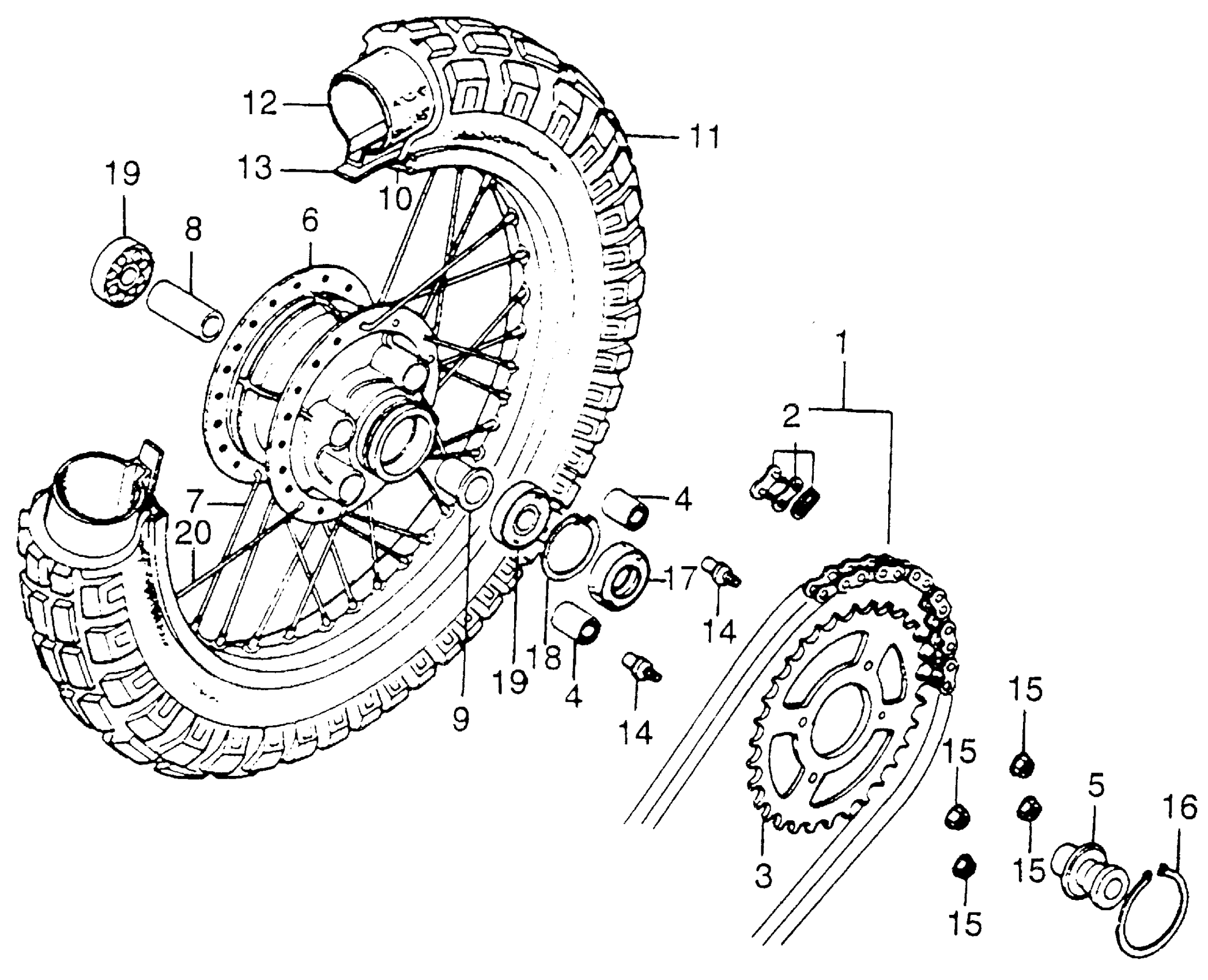

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 REAR WHEEL Diagram

#

Description
Price

1

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-003.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-005.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-015.

405W3-434-505

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-343-005

Unavailable

3

SPROCKET, FINAL DRIVEN (42T) | Use up to Frame SN 4007425

41201-391-670

Unavailable

3

SPROCKET, FINAL DRIVEN (42T) (NOT AVAILABLE) | Use from Frame SN 4007426

41201-391-671

Unavailable

4

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

5

COLLAR, RR. AXLE SIDE (NOT AVAILABLE)

42311-362-010

Unavailable

6

HUB, RR. WHEEL

42601-362-000

Unavailable

7

SPOKE A, RR.

42608-362-000

Unavailable

8

COLLAR A, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-362-000

Unavailable

9

COLLAR B, RR. AXLE DISTANCE (NOT AVAILABLE)

42625-362-000

Unavailable

10

RIM, RR. WHEEL This part replaces 42701-362-003.

42701-391-721

Unavailable

10

RIM, RR. WHEEL

42701-391-721

Unavailable

11

TIRE, RR. (3.50-18) (BS) (NOT AVAILABLE)

42711-362-003

Unavailable

11

TIRE, RR. (3.50-18) (BS) (NOT AVAILABLE) This part replaces 42711-391-671.

42711-362-003

Unavailable

11

TIRE, RR. (3.50-18) (NITTO) (NOT AVAILABLE)

42711-391-672

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 42712-287-000.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

12

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

13

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

13

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

14

BOLT, DRIVEN SPROCKET FIXING (NOT AVAILABLE) | Use up to Frame SN 4007425

90128-361-000

Unavailable

14

BOLT, DRIVEN SPROCKET FIXING | Use from Frame SN 4007426 This part replaces 90128-391-000.

90128-KE2-940

$6.84

15

NUT, FLANGE (10MM) | Use from Frame SN 4007426

90308-382-670

$4.07

15

NUT, HEX. (8MM) | Use up to Frame SN 4007425

90309-357-000

$3.40

16

CIRCLIP (58MM)

90664-216-000

$5.55

17

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE)

90757-216-003

Unavailable

18

CIRCLIP (INNER) (47MM)

94521-47000

$2.39

18

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

19

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

19

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

19

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

20

SPOKE BS (8X168) (NOT AVAILABLE)

97792-69176-10

Unavailable
