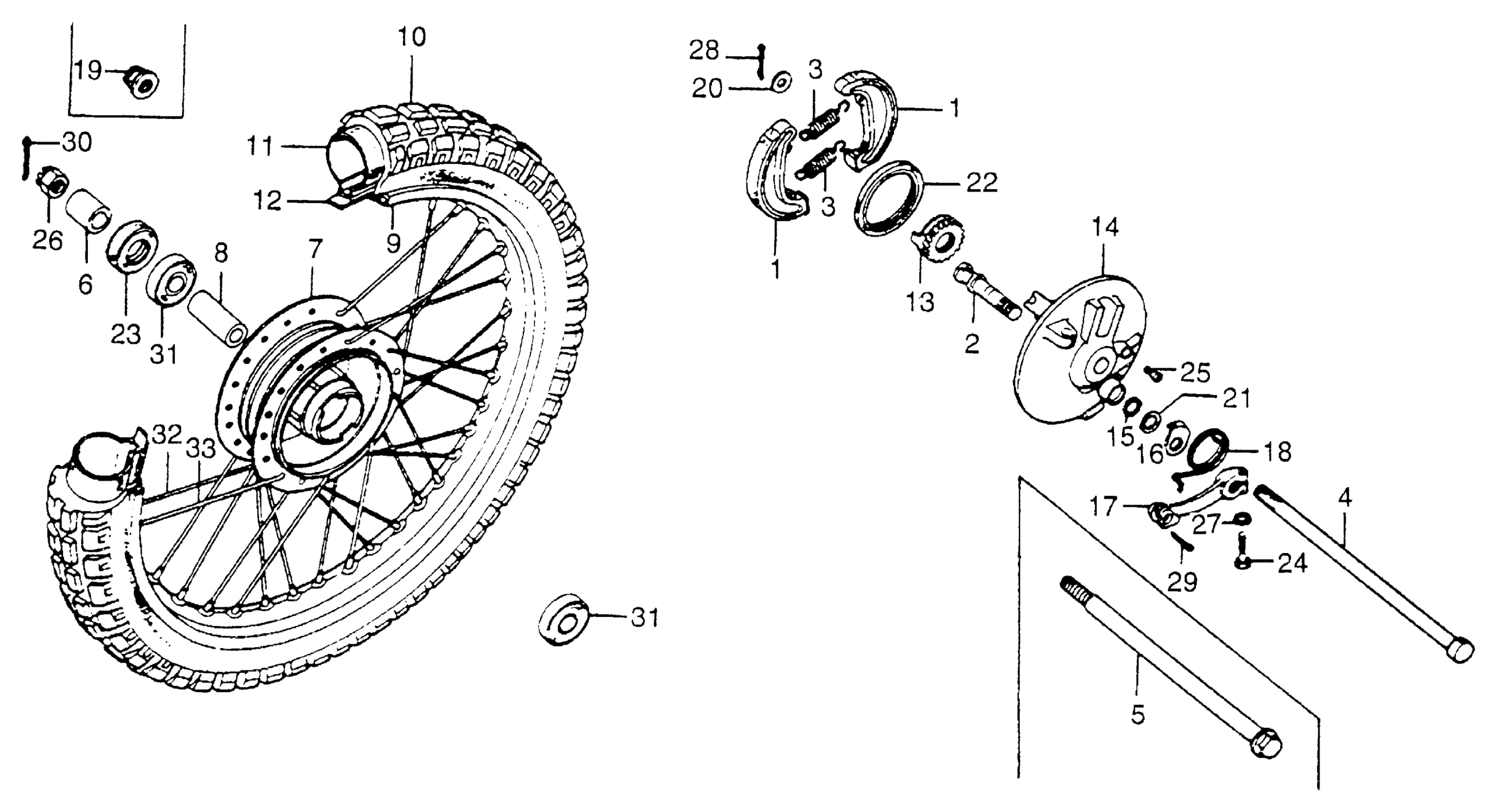

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 FRONT WHEEL + BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KBG-000.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK)

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 06450-KC2-681.

06450-KC2-680

$42.29

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-329-670.

06450-KC2-680

$42.29

1

SHOE SET, BRAKE (ASK)

06450-KC2-680

$42.29

1

SHOE SET, BRAKE (ASK) This part replaces 43120-329-670.

06450-KC2-680

$42.29

2

CAM, RR. BRAKE (NOT AVAILABLE)

43141-329-770

Unavailable

3

SPRING, BRAKE SHOE

43151-329-000

$2.75

4

AXLE, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 4012829

44301-304-971

Unavailable

5

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 4012830

44301-304-972

Unavailable

6

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-362-000

Unavailable

7

HUB, FR. WHEEL (NOT AVAILABLE)

44601-362-000

Unavailable

8

COLLAR, FR. AXLE DISTANCE

44620-230-000

$9.90

9

RIM, FR. WHEEL (NOT AVAILABLE) This part replaces 44701-362-003.

44701-391-721

Unavailable

9

RIM, FR. WHEEL (NOT AVAILABLE)

44701-391-721

Unavailable

10

TIRE, FR. (2.75-21) (BS) (NOT AVAILABLE)

44711-329-671

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-KB1-911.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-329-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-331-671.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-006.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

11

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

12

FLAP, TIRE (1.60-21) (BS) (NA USE ALT:44713-MG7-003)

44713-329-003

Unavailable

12

FLAP, TIRE (21) (NITTO) (NOT AVAILABLE)

44713-331-671

Unavailable

13

GEAR, SPEEDOMETER (23T) (NOT AVAILABLE)

44806-362-000

Unavailable

14

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-362-315

Unavailable

15

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

16

INDICATOR, FR. BRAKE (NOT AVAILABLE)

45145-329-770

Unavailable

17

ARM, FR. BRAKE (NOT AVAILABLE)

45411-362-670

Unavailable

18

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45435-362-000

Unavailable

19

NUT, AXLE (14MM) | Use from Frame SN 4012830

90305-401-680

$11.65

20

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

21

WASHER (14MM)

90549-121-000

Unavailable

22

OIL SEAL (54X66X7)

91251-230-003

$12.60

23

OIL SEAL (26X42X7)

91252-230-003

$10.56

24

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

24

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

25

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

26

NUT, CASTLE (14MM) (NOT AVAILABLE) | Use up to Frame SN 4012829

94011-14020-0S

Unavailable

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

PIN, SPLIT (2.0X15)

94201-20150

$1.49

29

PIN, SPLIT (2.0X22)

94201-20220

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

29

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

29

PIN, COTTER (2.0X35)

94201-20350

$1.49

30

PIN, COTTER (3.0X45) | Use up to Frame SN 4012829 This part replaces 94201-30280.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) | Use up to Frame SN 4012829 This part replaces 94201-30250.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) | Use up to Frame SN 4012829 This part replaces 94201-30300.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) | Use up to Frame SN 4012829 This part replaces 94201-30400.

94201-30450

$1.49

30

PIN, SPLIT (3.0X45)

94201-30450

$1.49

30

PIN, SPLIT (3.0X45) | Use up to Frame SN 4012829

94201-30450

$1.49

31

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

31

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

32

SPOKE BS (8X225.5)

97310-69291-10

Unavailable

33

SPOKE BS (8X225) (NOT AVAILABLE)

97830-69290-10

Unavailable
