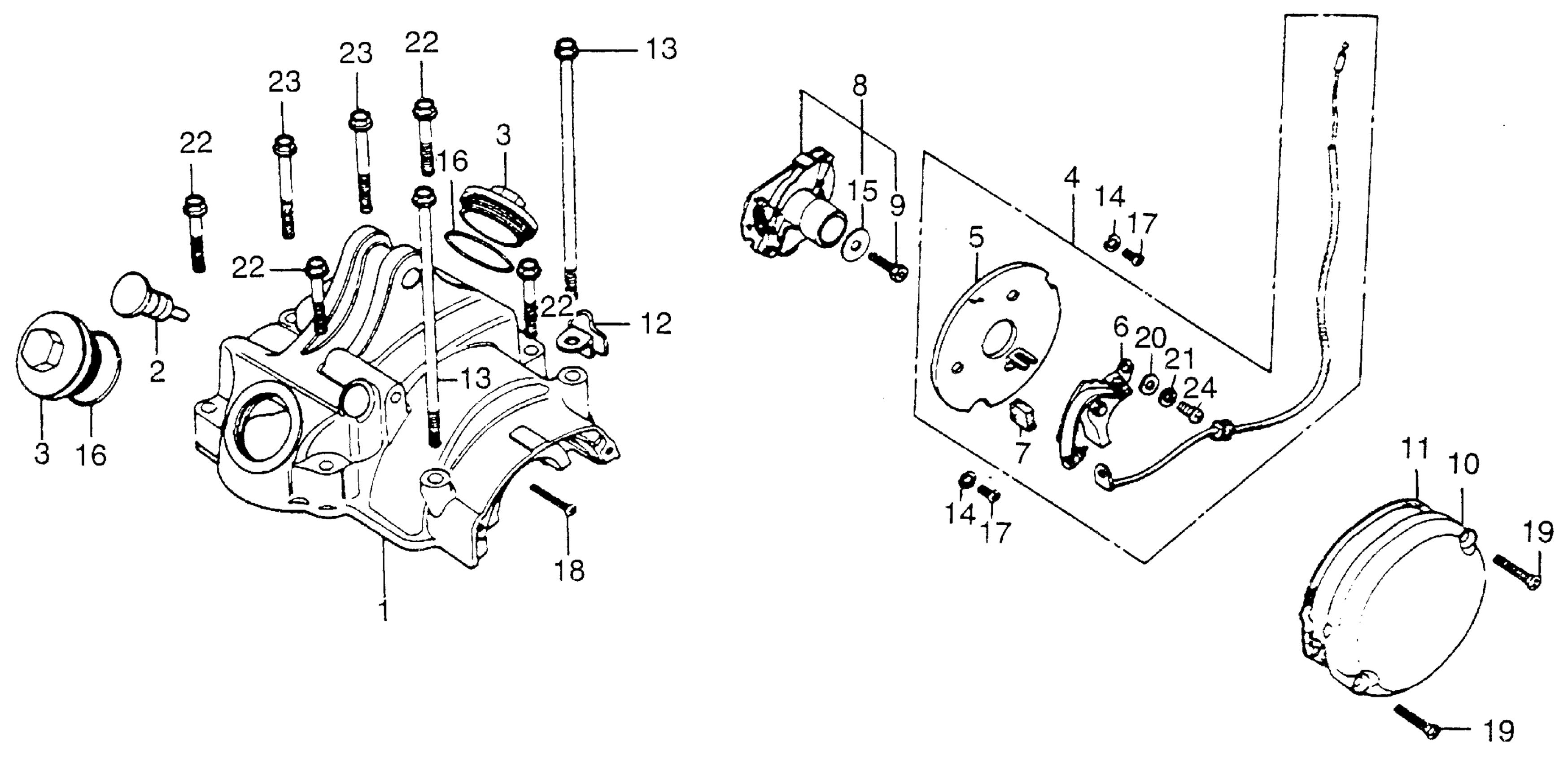

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 CYLINDER HEAD COVER + POINTS Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12311-362-000

Unavailable

2

CAP, TACHOMETER GEAR HOLE (NOT AVAILABLE)

12312-391-000

Unavailable

3

CAP, VALVE ADJ. | Use from Engine SN 4014421 This part replaces 12361-035-000.

12361-300-000

Unavailable

3

CAP, VALVE ADJ. | Use from Engine SN 4014421

12361-300-000

Unavailable

3

CAP, VALVE ADJ.

12361-300-000

Unavailable

3

CAP, VALVE ADJ. | Use from Engine SN 4014421 This part replaces 12361-371-980.

12361-300-000

Unavailable

4

POINTS ASSY. (DENSO) (NOT AVAILABLE) | Use up to Engine SN 4014420

30200-329-004

Unavailable

4

POINTS ASSY. (TOYO) (NOT AVAILABLE) | Use from Engine SN 4014421

30200-385-006

Unavailable

5

PLATE, POINTS BASE (TOYO) | Use from Engine SN 4014421

30201-107-154

Unavailable

5

PLATE, POINTS BASE (DENSO) (NOT AVAILABLE) | Use up to Engine SN 4014420

30201-329-004

Unavailable

6

POINTS (DENSO) | Use up to Engine SN 4014420

30202-107-004

$43.04

6

POINTS (TOYO)

30202-107-154

$27.89

7

FELT, OIL (KOKUSAN) (NOT AVAILABLE) | Use up to Engine SN 4014420 This part replaces 30205-028-004.

30205-028-003

Unavailable

7

FELT, OIL (TOYO) | Use from Engine SN 4014421

30205-300-154

Unavailable

8

ADVANCER ASSY., SPARK (DENSO) | Use up to Engine SN 4014420

30220-329-024

Unavailable

8

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) | Use from Engine SN 4014421

30220-391-006

Unavailable

9

BOLT, SPARK ADVANCER SETTING (NOT AVAILABLE)

30225-246-004

Unavailable

10

COVER, POINTS (NOT AVAILABLE)

30370-329-000

Unavailable

11

GASKET, POINTS COVER This part replaces 30372-329-000.

30372-329-306

Unavailable

11

GASKET, POINTS COVER

30372-329-306

Unavailable

12

CLAMP A, CABLE (NOT AVAILABLE) This part replaces 32111-333-000.

32117-371-000

Unavailable

13

BOLT, FLANGE (6X130) This part replaces 90048-329-000.

95701-06130-00

$3.06

13

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

14

WASHER (5MM)

90482-028-000

$2.09

15

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

16

O-RING (30.8MM)

91302-001-020

$3.75

17

SCREW, PAN (5X10)

93500-05010-0A

$1.49

18

SCREW, PAN (5X25)

93500-05025-0A

$1.49

19

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

20

WASHER, PLAIN (4MM)

94101-04000

$1.49

21

WASHER, SPRING (4MM)

94111-04000

$1.49

22

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

22

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

23

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

23

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

24

SCREW, PAN (4X6) This part replaces 99500-04006-0A.

93500-04006-0A

$1.49

24

SCREW, PAN (4X6) This part replaces 99500-04007-0A.

93500-04006-0A

$1.49
