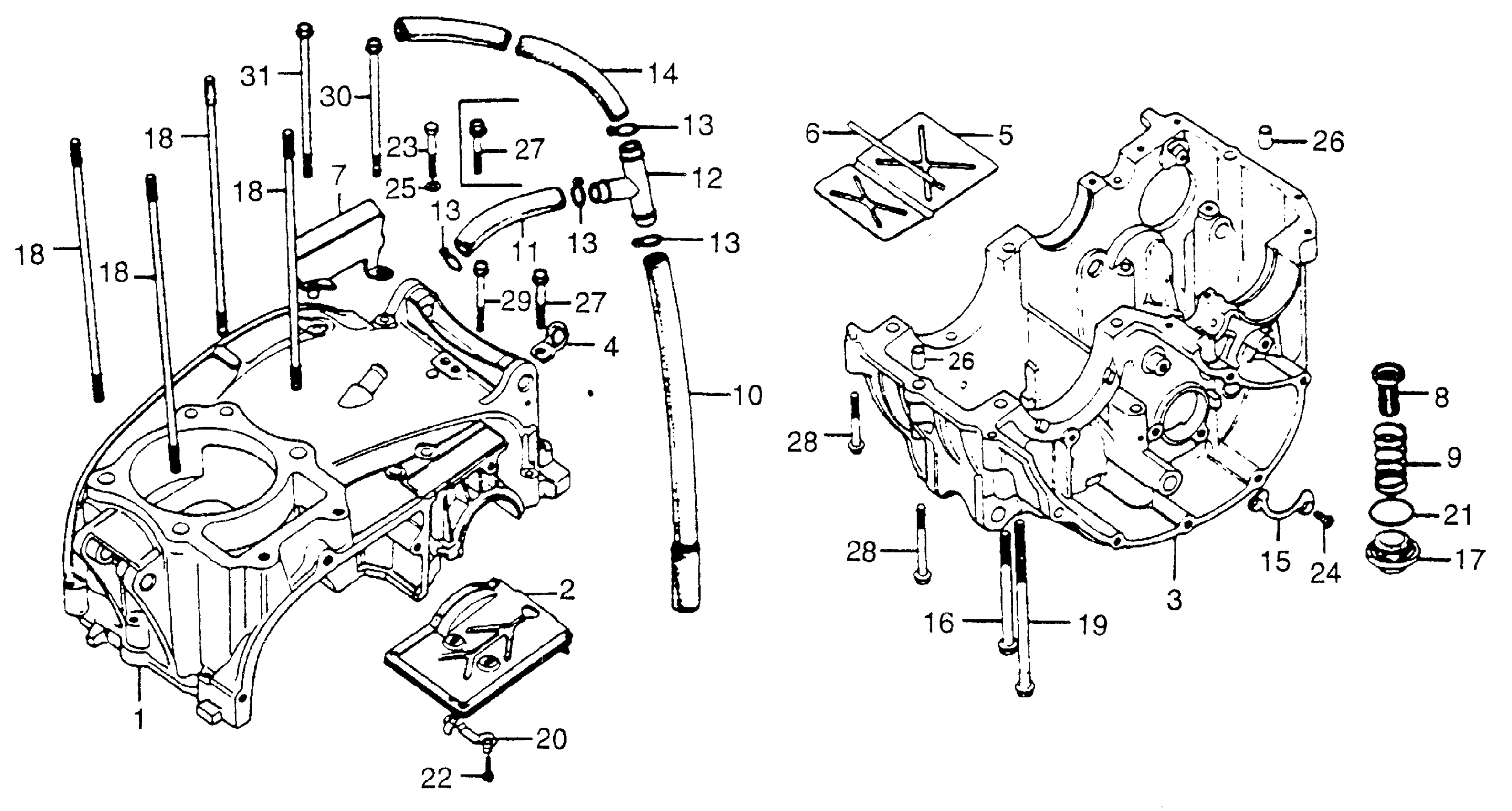

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER)

11100-362-000

Unavailable

2

PLATE, BREATHER (NOT AVAILABLE)

11110-391-000

Unavailable

3

CRANKCASE (LOWER) (NOT AVAILABLE) | Use up to Engine SN 4014398 This part replaces 11200-391-000.

11200-391-010

Unavailable

3

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-391-010

Unavailable

4

GUIDE, BATTERY TUBE

11355-362-000

Unavailable

5

SEPARATOR, OIL (NOT AVAILABLE)

11761-362-000

Unavailable

6

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11762-362-000

Unavailable

7

PROTECTOR B, EX. PIPE

11901-391-000

Unavailable

8

SCREEN, OIL FILTER (NOT AVAILABLE)

15421-329-000

Unavailable

9

SPRING, OIL FILTER SCREEN (NOT AVAILABLE)

15426-362-000

Unavailable

10

TUBE, OIL DRAIN

15706-391-000

Unavailable

11

TUBE A, BREATHER (NOT AVAILABLE)

15771-391-000

Unavailable

12

JOINT, BREATHER (THREE-WAY)

15772-376-000

$19.49

13

CLIP, BREATHER TUBE

15772-551-000

$2.05

13

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

14

TUBE B, BREATHER

15773-391-000

Unavailable

15

PLATE, BEARING SETTING (NOT AVAILABLE)

24710-362-000

Unavailable

16

BOLT, FLANGE (8X70) (NOT AVAILABLE)

90007-634-000

Unavailable

17

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

18

BOLT, STUD (8X174) (NOT AVAILABLE)

90032-362-000

Unavailable

19

BOLT, UBS (8X114) (NOT AVAILABLE)

90045-329-000

Unavailable

20

WASHER (6MM) (NOT AVAILABLE)

90484-329-000

Unavailable

21

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

21

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

21

O-RING (33.5X3.0)

91304-HB3-003

$7.70

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X32) | Use up to Engine SN 4014420 This part replaces 92000-06032.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32) | Use up to Engine SN 4014420 This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

23

BOLT, HEX. (6X32) | Use up to Engine SN 4014420

92101-06032-0A

$1.64

24

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

24

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

25

WASHER, PLAIN (6MM) | Use up to Engine SN 4014420 This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use up to Engine SN 4014420 This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use up to Engine SN 4014420

94101-06800

$1.49

26

PIN A, DOWEL (10X14)

94301-10140

$2.28

27

BOLT, FLANGE (6X32) | Use up to Engine SN 4014420 This part replaces 95700-06032-00.

95701-06032-00

$1.89

27

BOLT, FLANGE (6X32) | Use from Engine SN 4014421 This part replaces 95700-06032-00.

95701-06032-00

$1.89

27

BOLT, FLANGE (6X32) | Use up to Engine SN 4014420

95701-06032-00

$1.89

27

BOLT, FLANGE (6X32) | Use from Engine SN 4014421

95701-06032-00

$1.89

28

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

28

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

29

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

29

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

29

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

30

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

30

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

31

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

31

BOLT, FLANGE (6X90)

95701-06090-00

$1.92
