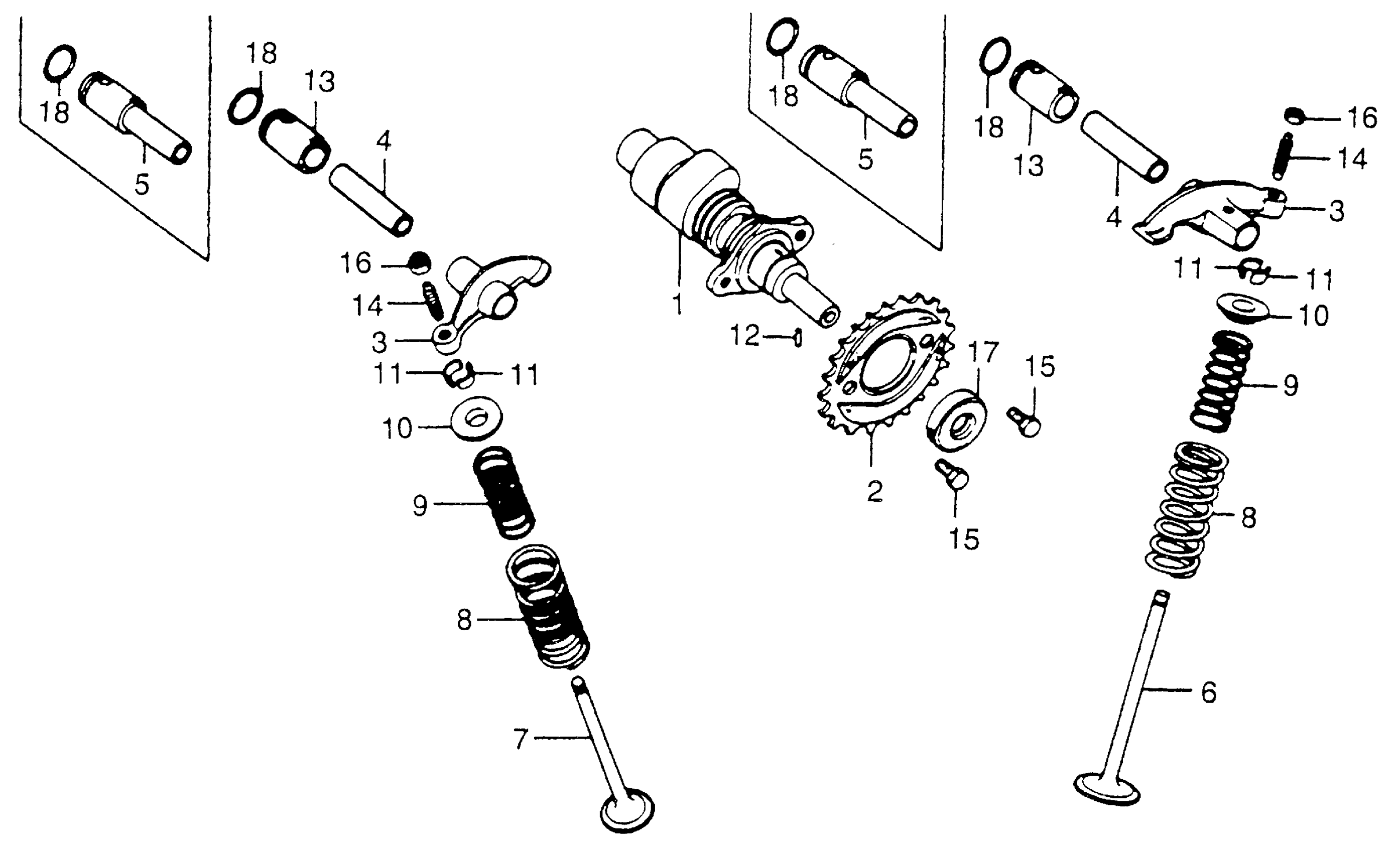

Honda XL175A (76) MOTORCYCLE, JPN, VIN# XL175-4000001 TO XL175-4009579 CAMSHAFT + VALVE Diagram

#

Description
Price

1

CAMSHAFT (NOT AVAILABLE)

14101-391-000

Unavailable

2

SPROCKET, CAM

14321-362-000

$51.56

3

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-391-000

Unavailable

4

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE) | Use up to Engine SN 4014420

14451-362-000

Unavailable

5

SHAFT, ROCKER ARM (NOT AVAILABLE) | Use from Engine SN 4014421

14451-362-010

Unavailable

6

VALVE, IN. (NOT AVAILABLE)

14711-362-000

Unavailable

7

VALVE, EX. (NOT AVAILABLE)

14721-362-000

Unavailable

8

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-391-000

Unavailable

9

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-391-000

Unavailable

10

RETAINER, VALVE SPRING (NOT AVAILABLE) | Use up to Engine SN 4013773 This part replaces 14771-369-000.

14771-369-010

Unavailable

10

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-369-010

Unavailable

11

COTTER, VALVE (NOT AVAILABLE)

14781-286-020

Unavailable

12

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

13

PLUG, ROCKER ARM SHAFT (NOT AVAILABLE) | Use up to Engine SN 4014420

90011-362-000

Unavailable

14

SCREW, TAPPET ADJUSTING This part replaces 90012-300-000.

90012-426-000

$5.94

14

SCREW, TAPPET ADJUSTING

90012-426-000

$5.94

15

BOLT, FLANGE KNOCK (7X10.5) This part replaces 90081-246-000.

90082-HA0-000

$1.97

15

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

16

NUT, TAPPET ADJUSTING

90206-250-000

$2.94

17

OIL SEAL (15X27X7)

91207-329-003

Unavailable

18

O-RING (16X1.9)

91306-329-000

$2.92
