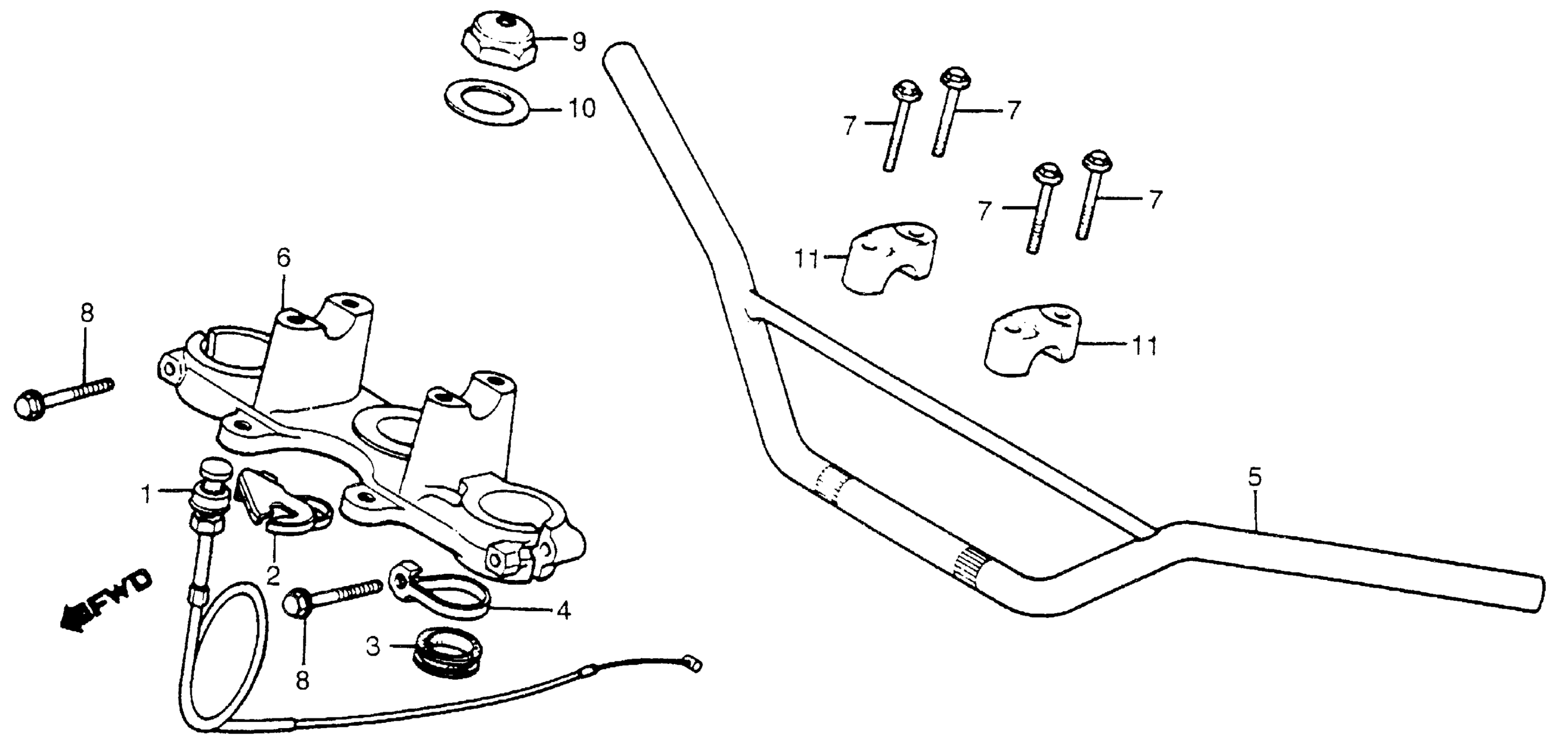

Honda XL125SAC (85) MOTORCYCLE, BRA, VIN# 9C2JD021-FR100001 HANDLEBAR + TOP BRIDGE Diagram

CABLE, CHOKE

17950-436-670

Unavailable

CABLE, CHOKE This part replaces 17950-437-000.

17950-436-670

Unavailable

STAY, CHOKE CABLE (NOT AVAILABLE)

17951-437-000

Unavailable

INNER, CABLE GUIDE

45466-329-000

$2.95

GUIDE, BRAKE CABLE (UPPER)

45467-437-970

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-KB1-930

Unavailable

BRIDGE, FORK TOP

53230-437-970

Unavailable

BOLT, FLANGE (8X36)

90111-362-000

$4.80

BOLT, FLANGE (7X54)

90155-437-970

Unavailable

NUT, LOCK (22MM) (NOT AVAILABLE)

90202-KG4-000

Unavailable

WASHER, STEERING STEM NUT

90503-KY0-860

Unavailable

WASHER, STEERING STEM NUT This part replaces 90503-397-910.

90503-KY0-860

Unavailable

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13
