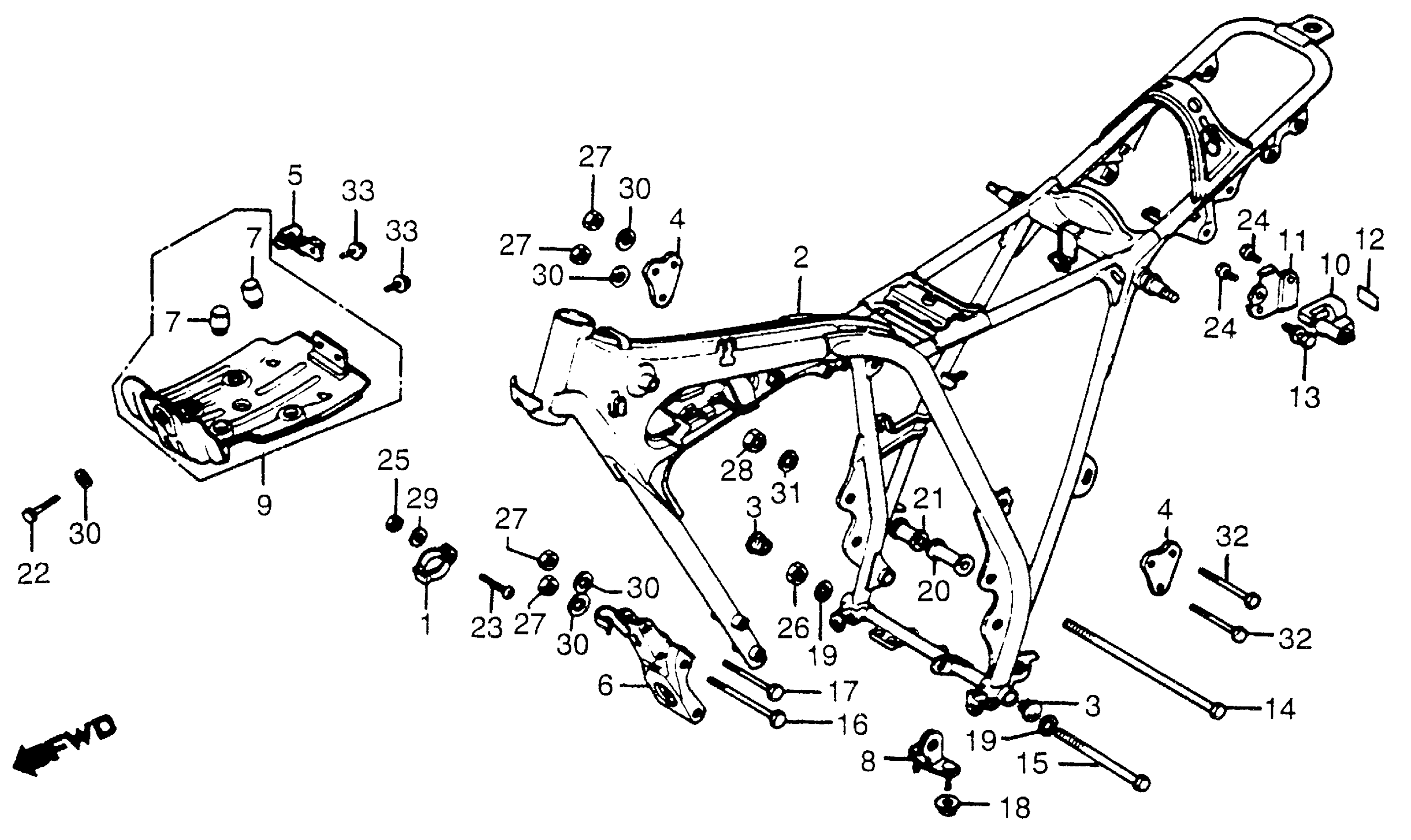

Honda XL125SAC (85) MOTORCYCLE, BRA, VIN# 9C2JD021-FR100001 FRAME Diagram

#

Description
Price

1

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-355-000

Unavailable

2

FRAME *R119* (FLASH RED)

50100-KB1-950ZA

Unavailable

3

PLUG, FRAME SIDE (NOT AVAILABLE)

50123-446-000

Unavailable

4

PLATE, ENGINE HANGER (UPPER) (NOT AVAILABLE)

50138-KB1-930

Unavailable

5

CLIP, DRAIN TUBE (NOT AVAILABLE)

50294-437-000

Unavailable

6

PLATE, FR. ENGINE HANGER *R119* (FLASH RED) (NOT AVAILABLE)

50351-KB1-930ZA

Unavailable

7

RUBBER A, STOPPER

50352-428-000

$2.75

8

PLATE, ENGINE HANGER (LOWER) This part replaces 50354-KB1-930.

50354-437-970

Unavailable

8

PLATE, ENGINE HANGER (LOWER)

50354-437-970

Unavailable

9

PLATE, SKID *NH0* (CHAMPIONSHIP WHITE) This part replaces 50355-437-970.

50355-437-970A

Unavailable

9

PLATE, SKID *NH0* (CHAMPIONSHIP WHITE)

50355-437-970A

Unavailable

10

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

11

PLATE, HELMET HOLDER (NOT AVAILABLE)

50715-443-610

Unavailable

12

LABEL, HELMET HOLDER

87511-323-670

$2.72

13

BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)

90105-413-000

Unavailable

14

BOLT, HEX. (10X220)

90135-437-000

$13.45

15

BOLT, HEX. (10X115)

90155-437-000

Unavailable

16

BOLT, HEX. (8X85)

90157-437-000

Unavailable

17

BOLT, HEX. (8X50)

90159-437-000

Unavailable

18

NUT, HEX. (8MM)

90309-357-000

$3.40

19

WASHER, PLAIN (10MM)

90401-437-000

$2.67

20

COLLAR, L. ENGINE DISTANCE *R119* (FLASH RED) (NOT AVAILABLE)

90742-437-970ZA

Unavailable

20

COLLAR, L. ENGINE DISTANCE *R119* (FLASH RED) (NOT AVAILABLE) This part replaces 90742-437-970ZC.

90742-437-970ZA

Unavailable

21

COLLAR, R. ENGINE DISTANCE *R119* (FLASH RED)

90743-437-970ZC

Unavailable

21

COLLAR, R. ENGINE DISTANCE *R119* (FLASH RED) This part replaces 90743-437-970ZD.

90743-437-970ZC

Unavailable

22

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

22

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

23

SCREW, PAN (5X20)

93500-05020-0A

$1.49

23

SCREW, PAN (5X20) This part replaces 93500-05020-1A.

93500-05020-0A

$1.49

24

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

24

SCREW, PAN (6X10)

93500-06010-0A

$1.49

25

NUT, HEX. (5MM)

94001-05000-0S

$2.74

26

NUT, HEX. (10MM)

94001-10000-0S

$1.49

27

NUT, HEX. (8MM)

94030-08000

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

29

WASHER, PLAIN (5MM)

94101-05000

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

WASHER, PLAIN (10MM)

94101-10000

$1.49

32

BOLT, HEX. (8X65) (NOT AVAILABLE)

95300-08065-00

Unavailable

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

33

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
