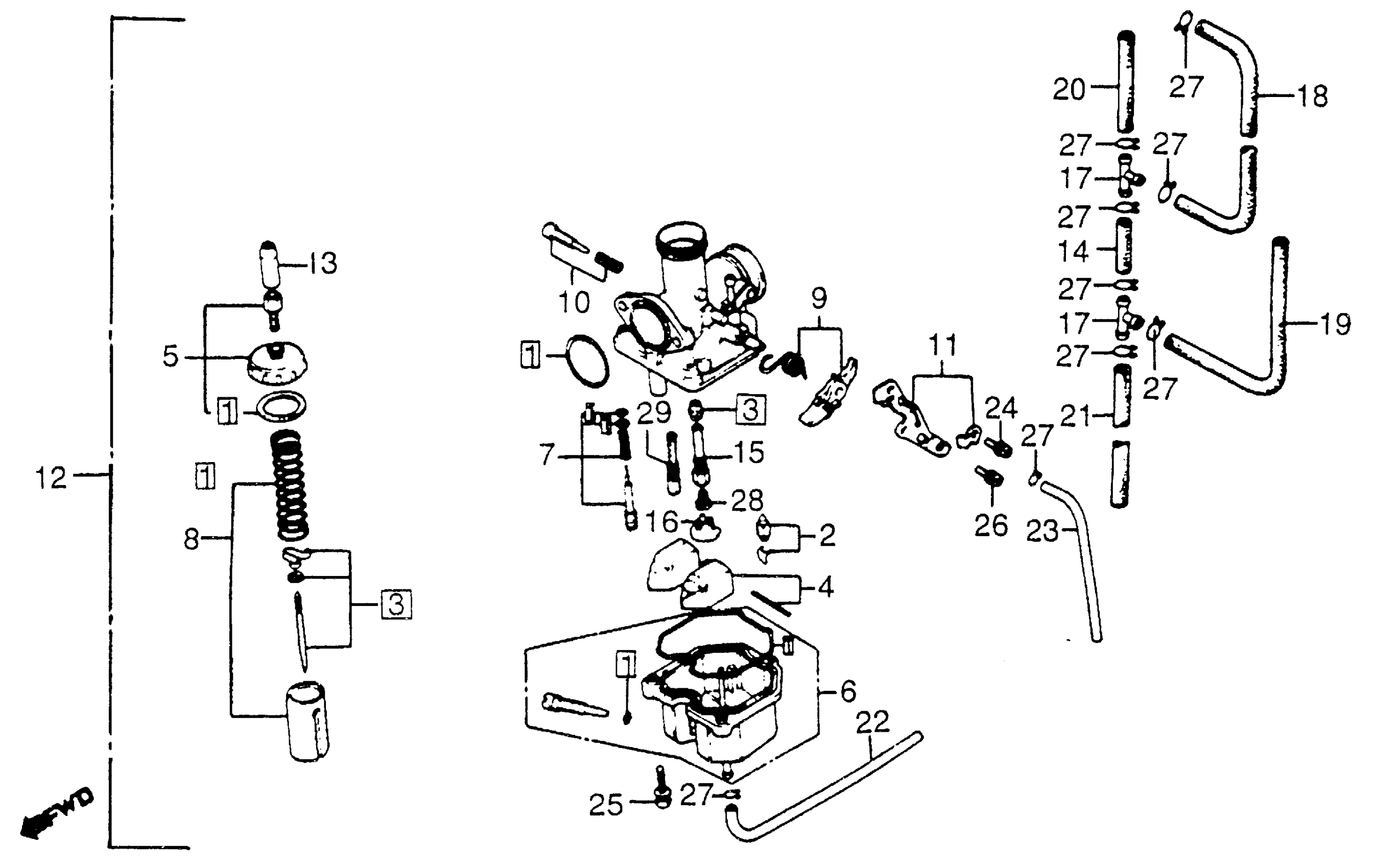

Honda XL125SAC (85) MOTORCYCLE, BRA, VIN# 9C2JD021-FR100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-HB5-305

$27.44

1

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

2

VALVE SET, FLOAT

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-437-771

Unavailable

4

FLOAT SET

16013-405-004

$56.20

5

TOP SET This part replaces 16014-324-680.

16014-324-681

Unavailable

5

TOP SET

16014-324-681

Unavailable

6

CHAMBER SET, FLOAT

16015-397-961

Unavailable

7

SCREW SET A

16016-KC2-970

$25.35

7

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-440-004

Unavailable

9

LEVER SET, CHOKE

16025-427-004

$29.95

10

SCREW SET B

16028-KB1-D11

$5.98

10

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

11

PLATE SET, STAY

16035-427-004

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-KB1-951

Unavailable

13

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

13

CAP, CABLE SEALING

16118-166-004

$8.08

14

TUBE, FUEL (3.5X60) (NOT AVAILABLE)

16144-469-004

Unavailable

15

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-437-771

Unavailable

16

HOLDER, JET

16168-382-014

$9.81

17

T-JOINT

16180-195-731

$12.95

18

PIPE, AIR VENT

16198-KB1-951

Unavailable

19

TUBE (330MM)

16199-KB1-951

Unavailable

20

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$3.10

20

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$3.10

20

TUBE, FUEL

16199-428-405

$3.10

21

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$9.49

24

SCREW-WASHER (4X10)

93892-04010-08

$1.49

25

SCREW-WASHER (4X16)

93892-04016-08

$1.49

26

SCREW-WASHER (5X12)

93892-05012-08

$1.49

27

CLIP, TUBE (B6.5)

95002-02650

$1.49

28

JET, MAIN (#100) | (Optional).

99101-GHB-1000

$6.75

28

JET, MAIN (#102)

99101-GHB-1020

$6.40

28

JET, MAIN (#100) | (Optional). This part replaces 99101-393-1000.

99101-GHB-1000

$6.75

28

JET, MAIN (#102) This part replaces 99101-393-1020.

99101-GHB-1020

$6.40

29

JET, SLOW (#38) This part replaces 99103-KA3-0380.

99103-KBA-0380

$13.18

29

JET, SLOW (#38)

99103-KBA-0380

$13.18

29

JET, SLOW (#38) This part replaces 99103-440-0380.

99103-KBA-0380

$13.18
