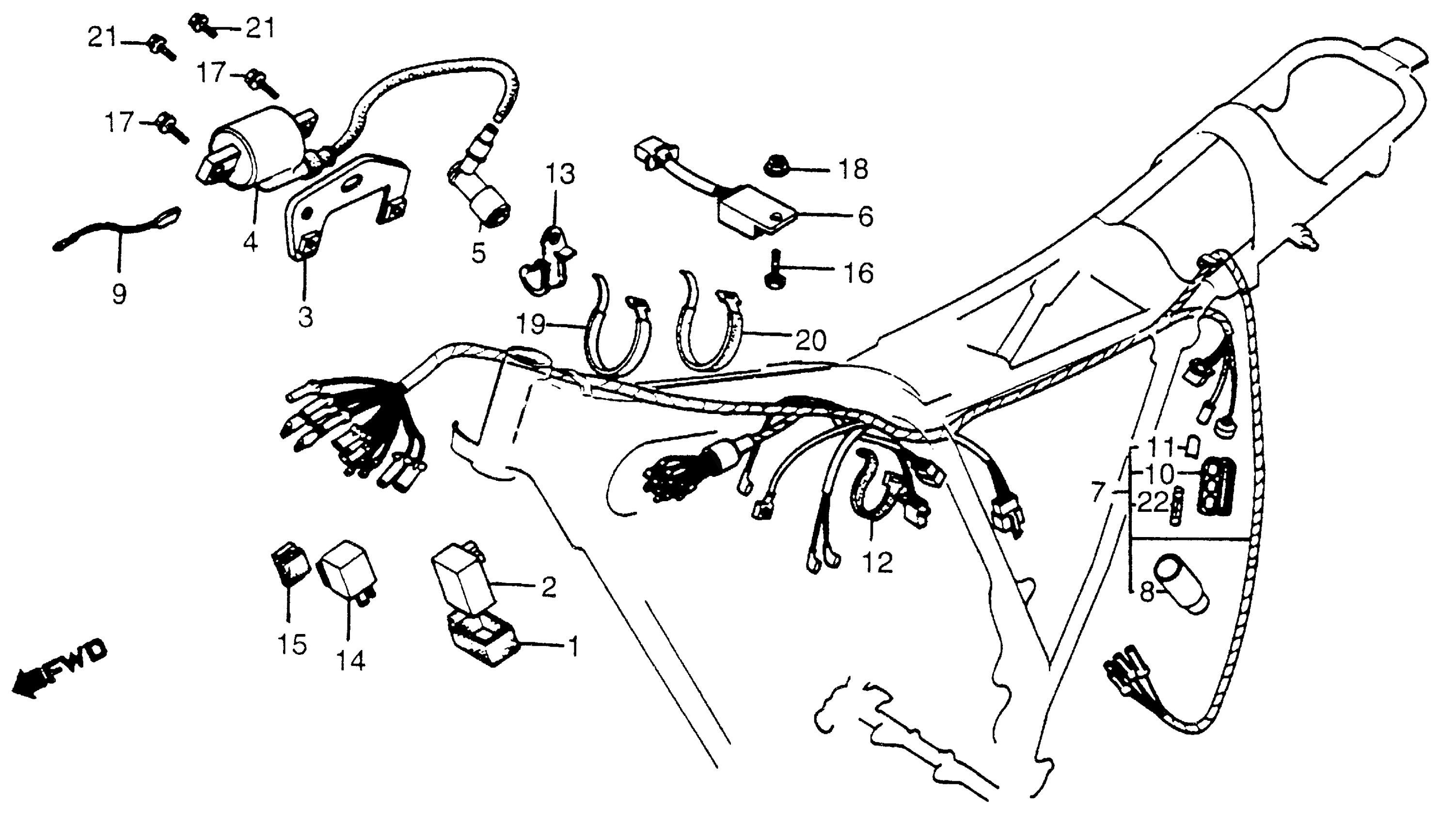

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 WIRE HARNESS + IGNITION COIL Diagram

#

Description
Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KB4-000

$6.92

2

MODULE, IGNITION CONTROL (CDI)

30410-KB1-930

Unavailable

3

STAY, IGNITION COIL

30501-437-970

Unavailable

4

COIL, C.D.I. IGNITION

30510-437-970

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

6

RECTIFIER, REGULATOR

31600-437-971

Unavailable

7

WIRE HARNESS

32100-KB1-930

Unavailable

8

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

9

SUB-WIRE A (NOT AVAILABLE)

32111-437-970

Unavailable

10

CASE, FUSE (10A)

32120-383-830

Unavailable

11

MARK (10A)

32122-383-830

Unavailable

12

BAND, WIRE

32161-399-000

Unavailable

13

CLIP, IGNITION CABLE (NOT AVAILABLE)

32906-107-000

Unavailable

14

RELAY, TURN SIGNAL (DENSO)

38301-MG2-008

Unavailable

15

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

16

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

16

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

17

SCREW-WASHER (5X20)

93891-05020-08

$1.49

18

NUT, FLANGE (6MM)

94050-06080

$1.49

19

BAND B1, WIRE

32161-404-000

$2.23

19

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

20

BAND A3, WIRE

95014-61300

$1.97

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

21

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

22

FUSE A (10A)

98200-11000

$1.80
