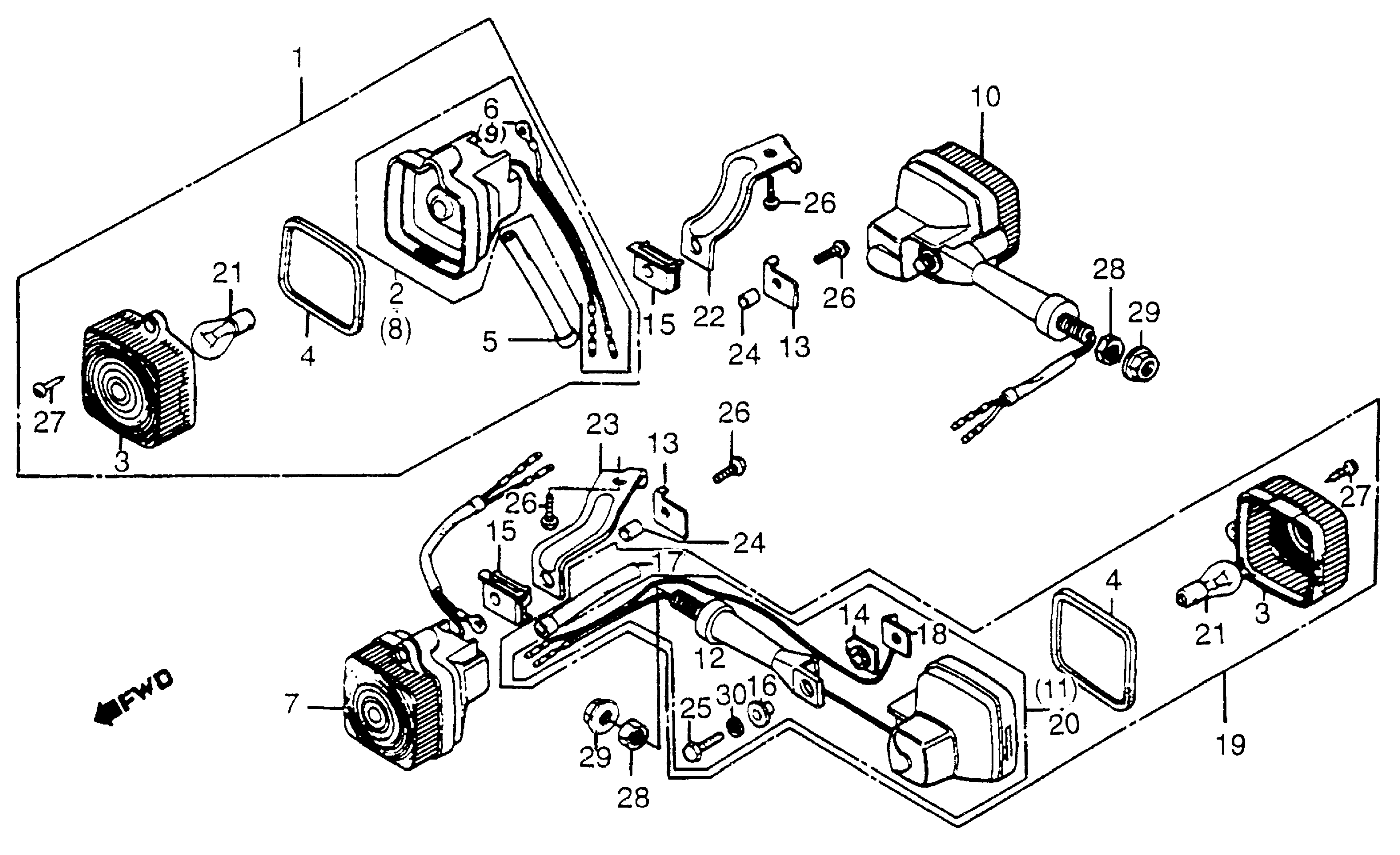

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL, R. FR. This part replaces 33400-KB1-930.

33400-KG1-405

Unavailable

1

TURN SIGNAL, R. FR. This part replaces 33400-KB1-931.

33400-KG1-405

Unavailable

2

BASE, R. TURN SIGNAL (NA USE ALT:33401-KG1-405)

33401-KG1-670

Unavailable

2

BASE, R. TURN SIGNAL (NA USE ALT:33401-KG1-405) This part replaces 33401-KG1-671.

33401-KG1-670

Unavailable

3

LENS, TURN SIGNAL This part replaces 33402-195-013.

33402-195-023

$8.74

3

LENS, TURN SIGNAL (STANLEY)

33402-195-023

$8.74

4

GASKET, TURN SIGNAL LENS

33407-166-611

$5.78

5

TUBE (NOT AVAILABLE)

33414-KB1-930

Unavailable

6

WIRE, TURN SIGNAL GROUND

33415-KB9-000

Unavailable

7

TURN SIGNAL ASSY., L. FR. This part replaces 33450-KB1-930.

33450-KB1-931

Unavailable

7

TURN SIGNAL ASSY., L. FR.

33450-KB1-931

Unavailable

8

BASE, L. TURN SIGNAL

33451-KG1-670

Unavailable

8

BASE, L. TURN SIGNAL This part replaces 33451-KG1-671.

33451-KG1-670

Unavailable

9

WIRE, TURN SIGNAL GROUND

33465-KB9-000

Unavailable

10

WINKER LIGHT ASSY This part replaces 33600-KB1-930.

33600-KB1-406

Unavailable

11

BASE, R. TURN SIGNAL (NOT AVAILABLE)

33601-KB1-930

Unavailable

12

BOLT, TURN SIGNAL

33605-KF9-671

Unavailable

13

WASHER, TURN SIGNAL MOUNT

33611-437-710

Unavailable

14

RUBBER, TURN SIGNAL MOUNTING

33612-KF9-670

$5.80

15

RUBBER, TURN SIGNAL MOUNT (NOT AVAILABLE)

33612-437-710

Unavailable

16

COLLAR, TURN SIGNAL SETTING

33613-KF9-670

$3.14

17

TUBE (NOT AVAILABLE)

33614-KB1-930

Unavailable

18

WIRE, RR. TURN SIGNAL GROUND

33615-KF9-671

Unavailable

19

WINKER LIGHT ASSY This part replaces 33650-KB1-930.

33600-KB1-406

Unavailable

20

BASE, L. TURN SIGNAL (NOT AVAILABLE)

33651-KB1-930

Unavailable

21

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

22

BRACKET, R. FR. TURN SIGNAL

53101-KB1-600

Unavailable

23

BRACKET, L. FR. TURN SIGNAL

53102-KB1-600

Unavailable

24

COLLAR (7.5X6.8)

90501-437-710

$2.56

25

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

25

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

25

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

26

SCREW, PAN (5X18)

93500-05018-0A

$1.49

27

SCREW, TAPPING (4X16)

93901-14480

Unavailable

28

NUT, HEX. (10MM)

94001-10000-0S

$1.49

29

NUT, FLANGE (10MM)

94050-10000

$1.59

30

WASHER, SPRING (5MM)

94111-05800

$1.49
