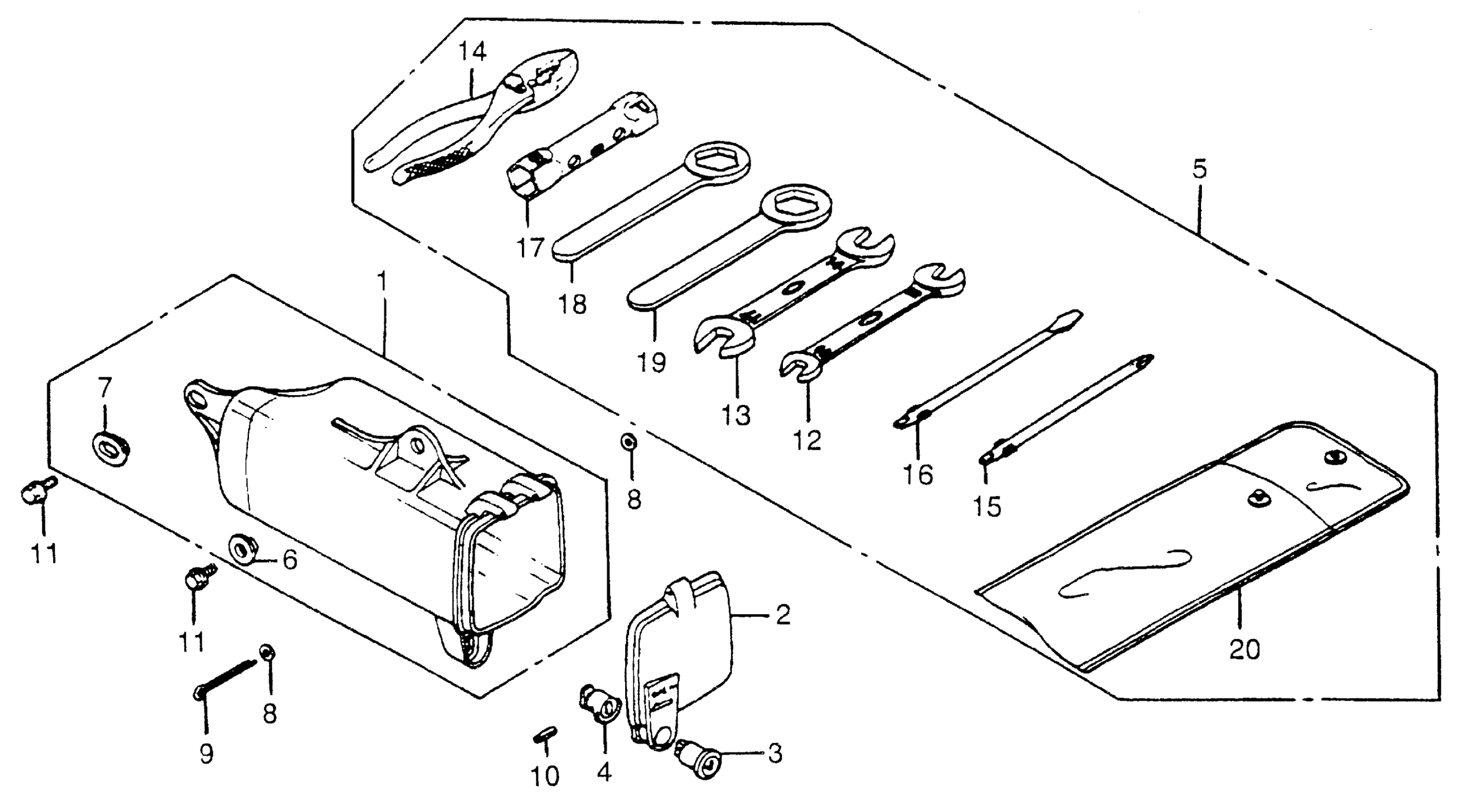

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 TOOLS Diagram

#

Description
Price

1

BOX, TOOL (NOT AVAILABLE)

83501-KB7-000

Unavailable

2

CAP, TOOL BOX (NOT AVAILABLE)

83504-KB7-000

Unavailable

3

BODY, KEY

83507-422-000

$3.53

4

STOPPER, KEY BODY

83508-KBG-000

$2.90

4

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

5

TOOL SET (NOT AVAILABLE)

89010-441-860

Unavailable

6

WASHER (6X20)

90512-300-000

$3.08

7

WASHER (6X9)

90513-323-000

$1.84

8

WASHER, PLAIN (3MM)

94101-03000

$1.49

9

PIN, SPLIT (3.0X45)

94201-30450

$1.49

10

PIN, SPRING (2X14)

94305-20141

$1.49

11

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

11

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

12

SPANNER (10X12)

99001-10120

$4.69

13

SPANNER (14X17)

99001-14170

$7.49

14

PLIERS (135) (KOWA)

89210-GBJ-J10

$13.57

14

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

15

DRIVER 1, PLUS SCREW (NO.2)

99003-10000

$3.27

16

DRIVER 3, MINUS SCREW (NO.2)

99003-30000

$3.27

17

WRENCH, BOX (P18X19)

99004-18190

$3.40

18

WRENCH, EYE (19MM)

99006-19000

$4.16

19

WRENCH, EYE (22MM)

99006-22000

$4.16

20

BAG, TOOL (160MM)

99008-01600

$2.22
