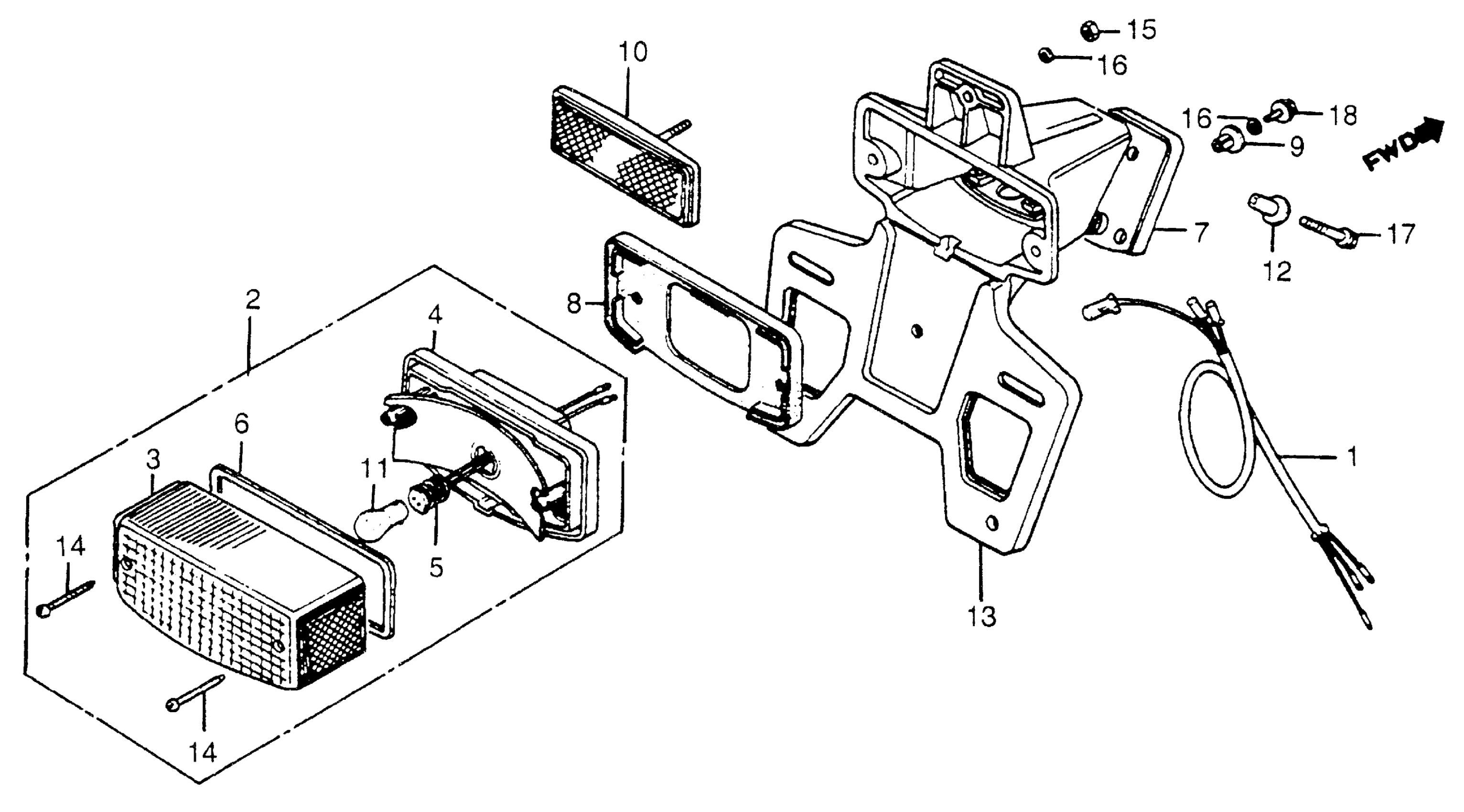

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 TAILLIGHT Diagram

#

Description
Price

1

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

32200-437-970

Unavailable

2

TAILLIGHT UNIT

33701-GAN-671

Unavailable

2

TAILLIGHT UNIT This part replaces 33701-MC4-671.

33701-GAN-671

Unavailable

3

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

4

BASE, TAILLIGHT

33703-MC4-671

Unavailable

5

WIRE, TAILLIGHT

33708-147-003

Unavailable

6

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

7

RUBBER, BASE SEAT (NOT AVAILABLE)

33712-KA8-711

Unavailable

7

RUBBER, BASE SEAT This part replaces 33712-437-970.

33712-KA8-711

Unavailable

8

GASKET, TAILLIGHT (NOT AVAILABLE)

33718-KB7-003

Unavailable

8

GASKET, TAILLIGHT This part replaces 33718-437-970.

33718-KB7-003

Unavailable

9

COLLAR, TAILLIGHT GASKET

33719-437-970

$6.93

10

REFLECTOR, REFLEX This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

10

REFLECTOR, REFLEX

33741-MC7-612

$14.43

11

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

12

COLLAR, CHAIN CASE TAIL

40521-437-000

$5.05

13

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

14

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

15

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

15

NUT, HEX. (5MM)

94001-05000-0S

$2.74

16

WASHER, SPRING (5MM)

94111-05000

$1.49

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

18

BOLT, FLANGE (5X25) (NOT AVAILABLE)

95800-05025-00

Unavailable
