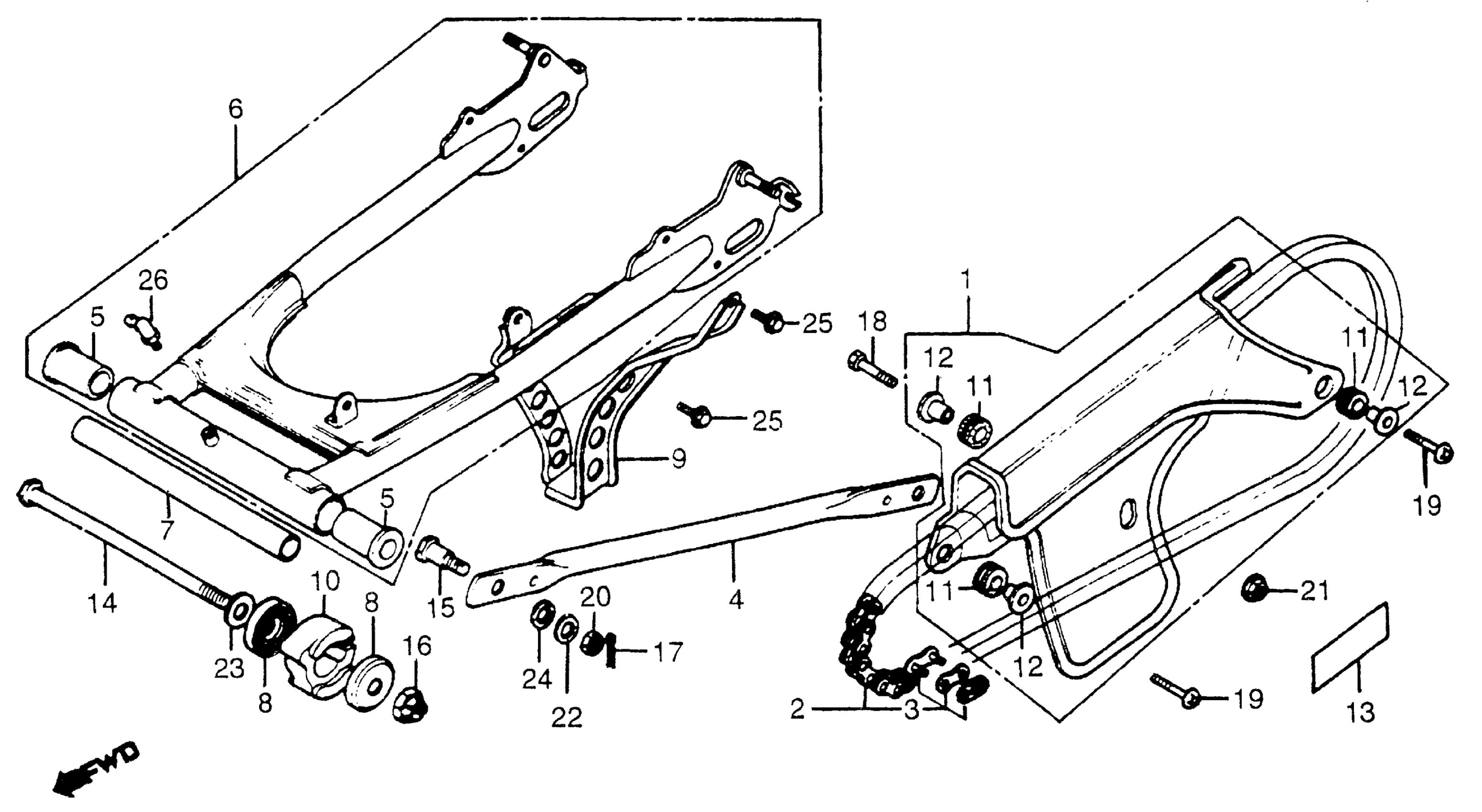

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-437-970

Unavailable

2

CHAIN, DRIVE

40530-437-971

Unavailable

3

MASTER LINK

40531-437-971

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-437-000

Unavailable

5

BUSH, PIVOT THRUST

52109-360-310

$41.11

6

SWINGARM ASSY. *R119* (FLASH RED)

52110-KB1-930ZA

Unavailable

7

COLLAR, SWINGARM

52141-437-010

Unavailable

8

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$11.80

8

CAP, DUST SEAL (NOK)

52144-360-005

$11.80

9

GUARD, CHAIN (NOT AVAILABLE)

52156-KB1-930

Unavailable

10

SLIDER, CHAIN

52170-437-000

$21.13

11

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

12

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

12

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

12

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

13

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-KB1-930

Unavailable

14

BOLT, SWINGARM PIVOT

90121-KF9-900

Unavailable

14

BOLT, SWINGARM PIVOT This part replaces 90121-437-000.

90121-KF9-900

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

16

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

17

PIN, COTTER (2.0X15) (NOT AVAILABLE)

90701-397-910

Unavailable

17

PIN, COTTER (2.0X15) (NOT AVAILABLE) This part replaces 90701-399-910.

90701-397-910

Unavailable

18

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

18

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

19

SCREW, PAN (6X22)

93500-06022-0A

$1.49

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, PLAIN (12MM)

94101-12000

$1.49

24

WASHER, SPRING (10MM)

94111-10000

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

25

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

26

NIPPLE, GREASE (B.T6)

96201-60000

$2.87
