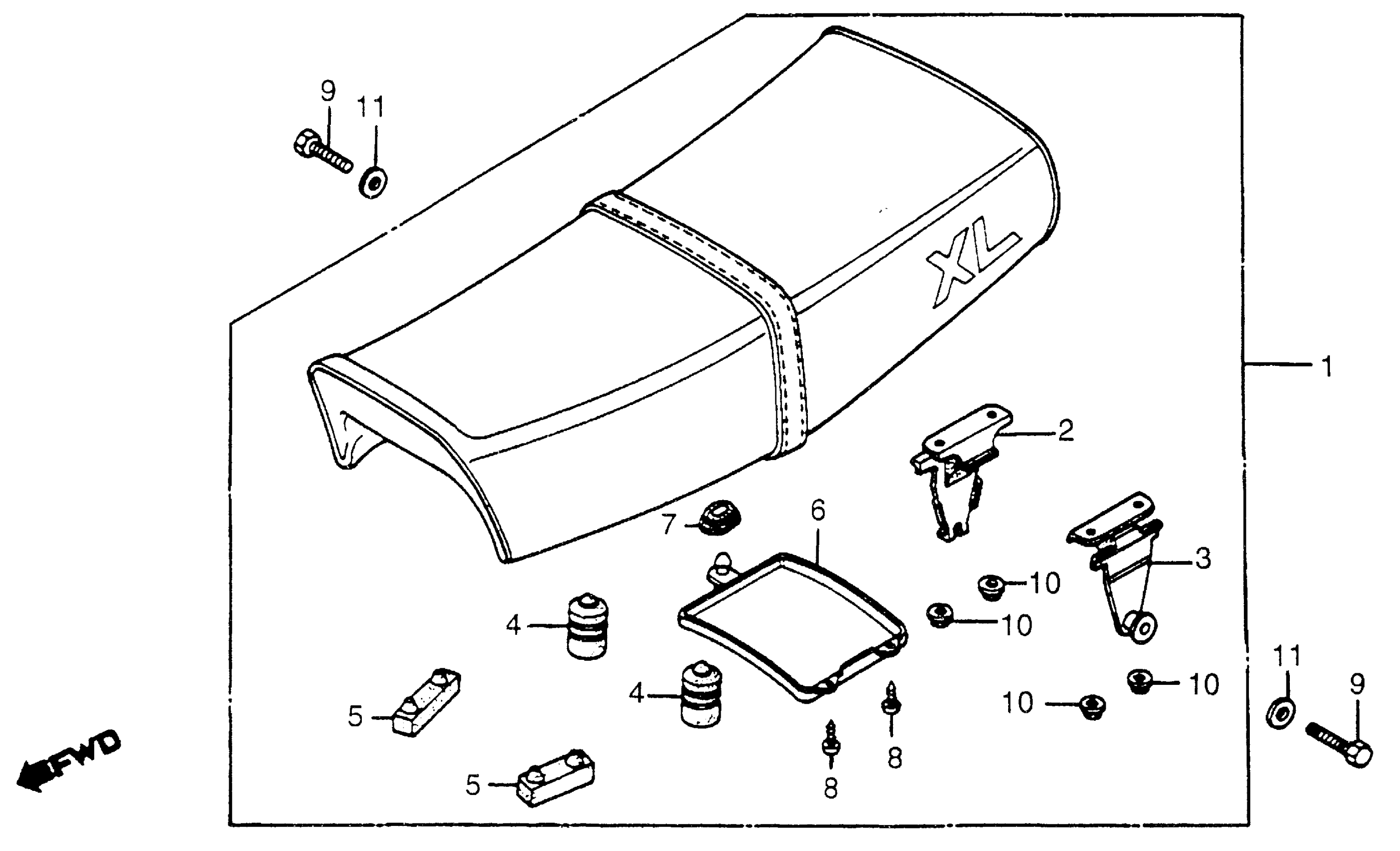

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 SEAT Diagram

#

Description

Price

1

SEAT (NOT AVAILABLE)

77200-KB1-930

Unavailable

2

STAY, R. RR. SEAT (NOT AVAILABLE)

77201-437-970

Unavailable

3

STAY, L. RR. SEAT

77202-437-970

Unavailable

4

RUBBER B, SEAT SETTING

77204-437-000

Unavailable

5

RUBBER, SEAT SETTING

77205-437-970

Unavailable

6

LID, SEAT (LOWER)

77250-340-000

Unavailable

7

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

8

SCREW, TAPPING (5X9.5)

90132-KB1-930

Unavailable

9

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

9

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

10

NUT, FLANGE (6MM)

94050-06000

$0.60

11

WASHER, PLAIN (8MM)

94103-08000

$0.60
