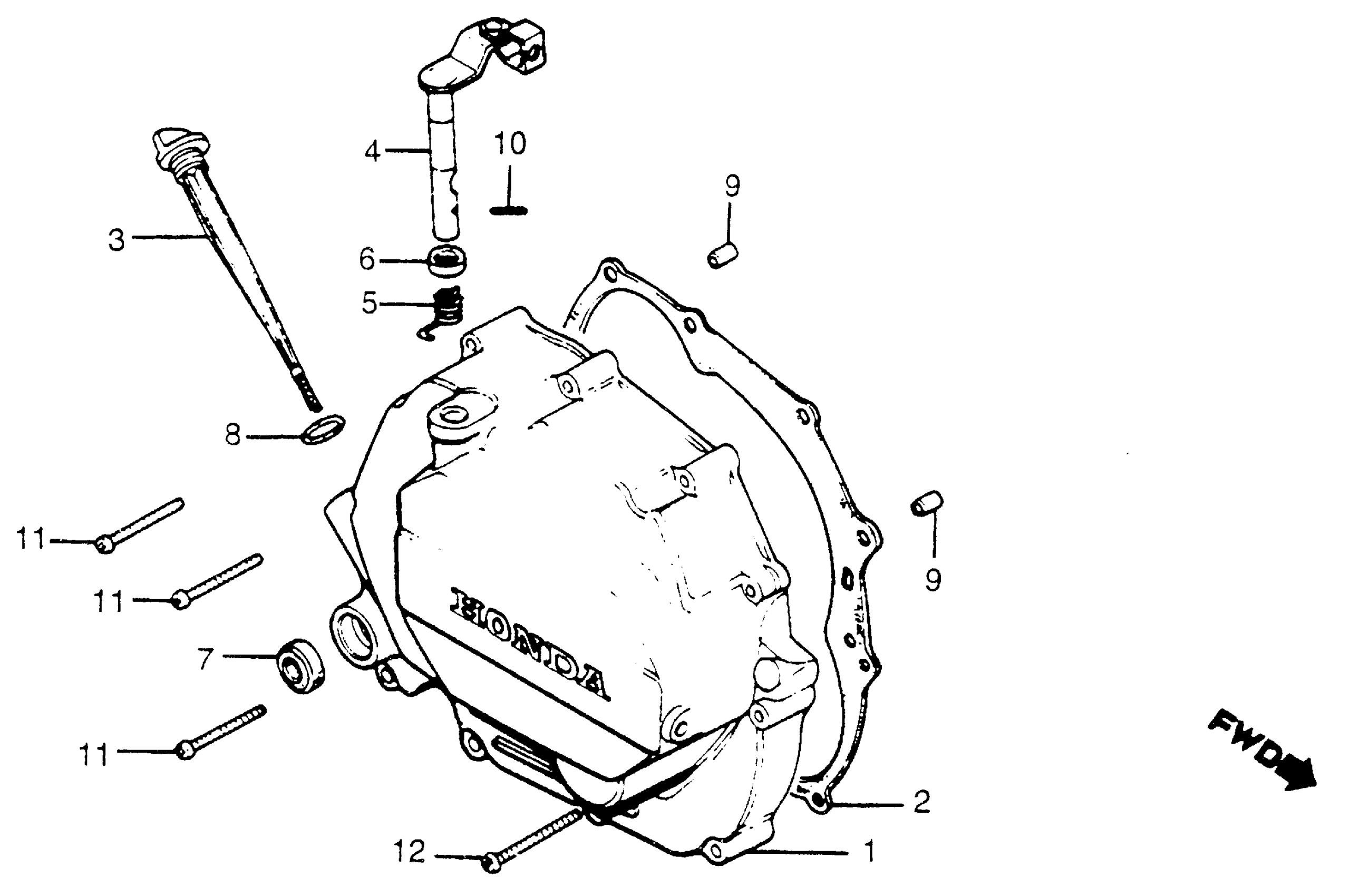

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-397-630

Unavailable

2

GASKET, R. This part replaces 11393-KY0-600.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-010.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-020.

11393-K0K-A00

Unavailable

2

GASKET, R. This part replaces 11393-107-306.

11393-K0K-A00

Unavailable

3

DIPSTICK, OIL

15650-MC8-000

Unavailable

3

DIPSTICK, OIL This part replaces 15650-383-000.

15650-MC8-000

Unavailable

4

LEVER, CLUTCH

22810-437-000

Unavailable

5

SPRING, CLUTCH LEVER

22815-428-000

$3.28

6

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

6

OIL SEAL (12X22X5)

91201-965-000

$4.06

7

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

7

OIL SEAL (16X28X7) (ARAI)

91204-259-003

$5.60

7

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

7

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

8

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

8

O-RING (18X3)

91307-035-000

$2.92

9

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

9

SCREW, PAN (6X40)

93500-06040-0A

$1.49

10

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

10

SCREW, PAN (6X50)

93500-06050-0A

$1.49

11

PIN, DOWEL (8X14)

94301-08140

$2.25

12

PIN, SPRING (3X10)

94305-30102

$1.74
