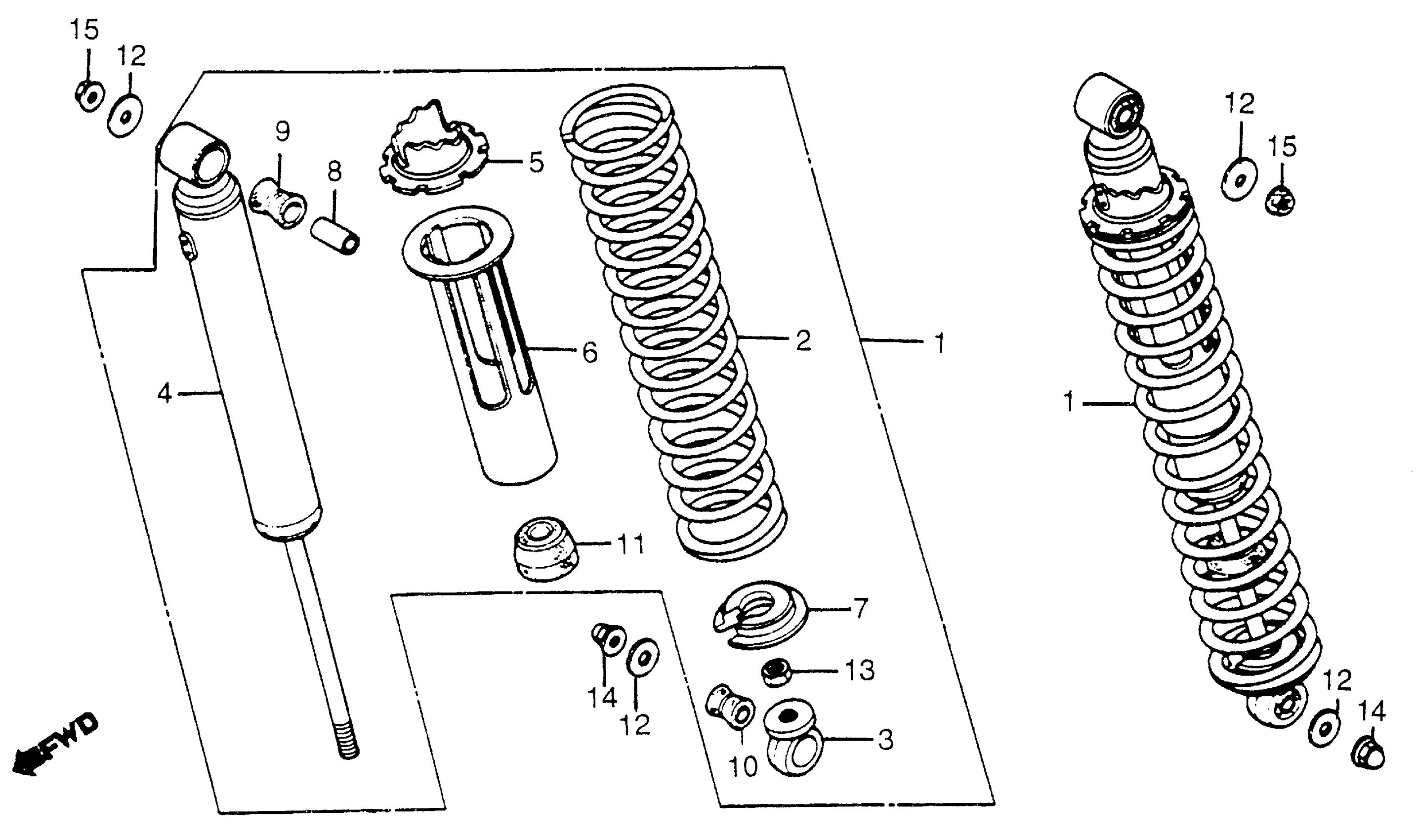

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY. This part replaces 52400-KB1-930.

52400-437-970ZB

Unavailable

1

SHOCK ABSORBER ASSY.

52400-437-970ZB

Unavailable

2

SPRING, SHOCK ABSORBER

52401-KB1-930

Unavailable

3

JOINT (UPPER)

52403-437-970

Unavailable

4

DAMPER, RR.

52410-437-970

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-410-003

Unavailable

6

GUIDE, SPRING

52458-428-003

Unavailable

7

SEAT, SPRING (UPPER) (NOT AVAILABLE)

52459-428-003

Unavailable

8

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

Unavailable

9

RUBBER B, JOINT

52488-331-003

Unavailable

10

BUSH, SHOCK ABSORBER

52489-361-000

Unavailable

11

RUBBER, STOPPER (NOT AVAILABLE)

52517-437-000

Unavailable

12

WASHER (10.3MM)

90521-292-000

$3.18

13

NUT, HEX. (10MM)

94002-10000-0S

$3.67

14

NUT, CAP (10MM)

94021-10020-0S

$1.99

15

NUT, FLANGE (10MM)

94050-10000

$1.41
