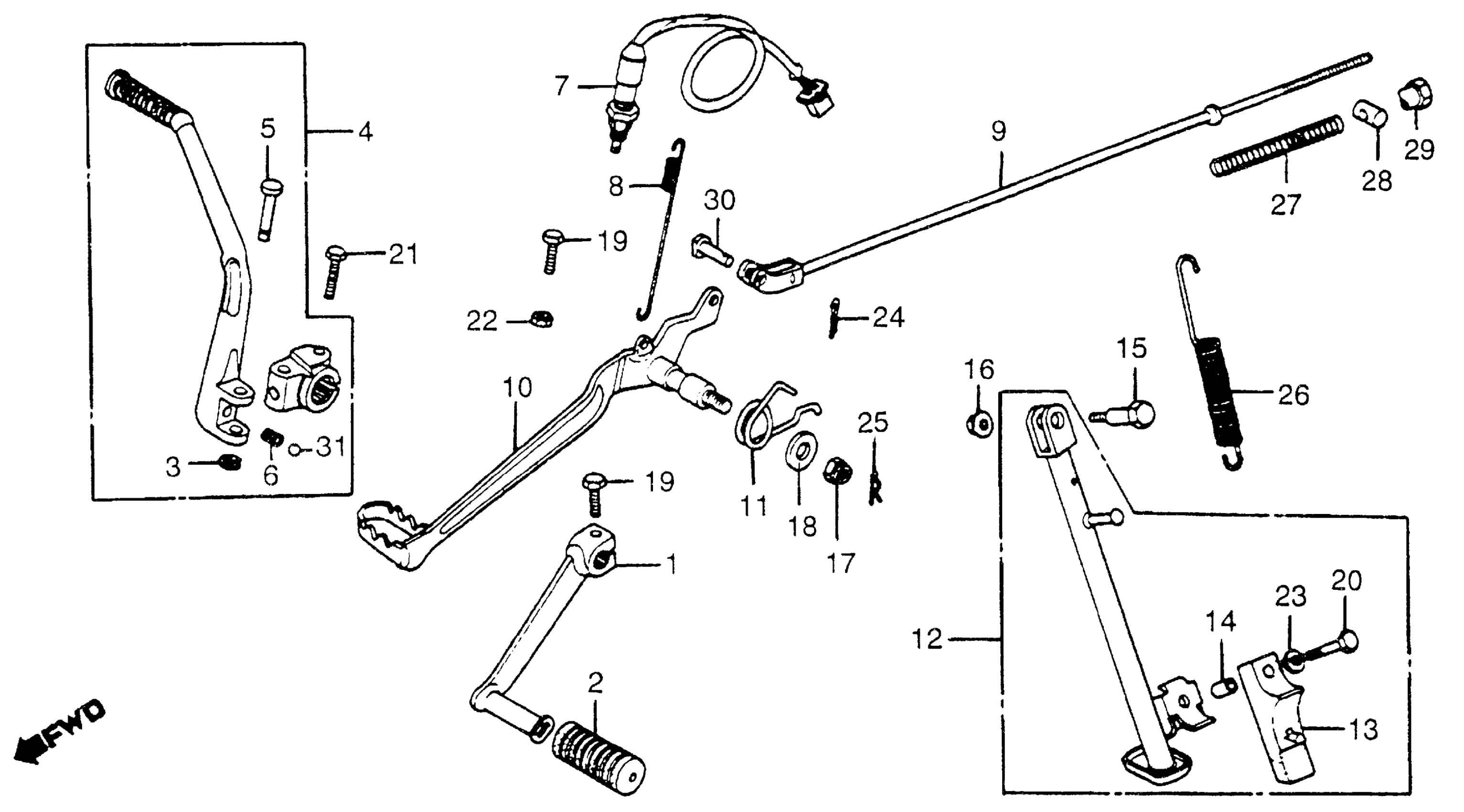

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 PEDAL + KICK STARTER ARM Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-437-970

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

Unavailable

3

CLIP, KICK STARTER ARM

28293-124-000

$2.22

4

ARM ASSY., KICK STARTER

28300-437-970

Unavailable

5

PIN, KICK STARTER

28321-427-770

$6.94

6

SPRING, KICK STARTER STOPPER

28333-124-000

Unavailable

7

SWITCH ASSY., RR. STOP This part replaces 35350-KJ2-000.

35350-KJ2-671

Unavailable

7

SWITCH ASSY., RR. STOP

35350-KJ2-671

Unavailable

8

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-KB1-930

Unavailable

9

ROD, RR. BRAKE This part replaces 43451-437-970.

43451-KW2-920

Unavailable

10

PEDAL, BRAKE

46500-437-970

Unavailable

11

SPRING, BRAKE PEDAL

46514-437-000

Unavailable

12

BAR ASSY., SIDE STAND This part replaces 50540-KB1-930.

50540-437-671

Unavailable

12

BAR ASSY., SIDE STAND

50540-437-671

Unavailable

13

RUBBER, STAND

50548-356-700

$9.63

14

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.50

15

BOLT, SIDE STAND PIVOT

90108-MJ0-000

$7.72

16

NUT, U (10MM)

90304-GE8-003

$3.52

17

NUT, SELF-LOCK (10MM)

90351-268-000

$2.65

18

WASHER, EX. MANIFOLD

90501-579-020

$5.21

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.96

19

BOLT, HEX. (6X20)

92101-06020-0A

$0.96

20

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

20

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

Unavailable

20

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

Unavailable

20

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

21

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

Unavailable

21

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

Unavailable

21

BOLT, HEX. (6X35)

92201-06035-0A

Unavailable

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.31

22

NUT, HEX. (6MM)

94002-06000-0S

$1.31

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

24

PIN, COTTER (1.6X25)

94201-16250

$1.01

25

PIN, LOCK (10MM)

94251-10000

$1.16

26

SPRING D, SIDE STAND

95014-72402

$2.80

27

SPRING A, BRAKE ROD

95014-73100

$1.19

28

JOINT B, BRAKE ARM

95015-32001

$0.87

29

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

30

PIN B, BRAKE ROD JOINT

95015-52000

$1.97

31

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
