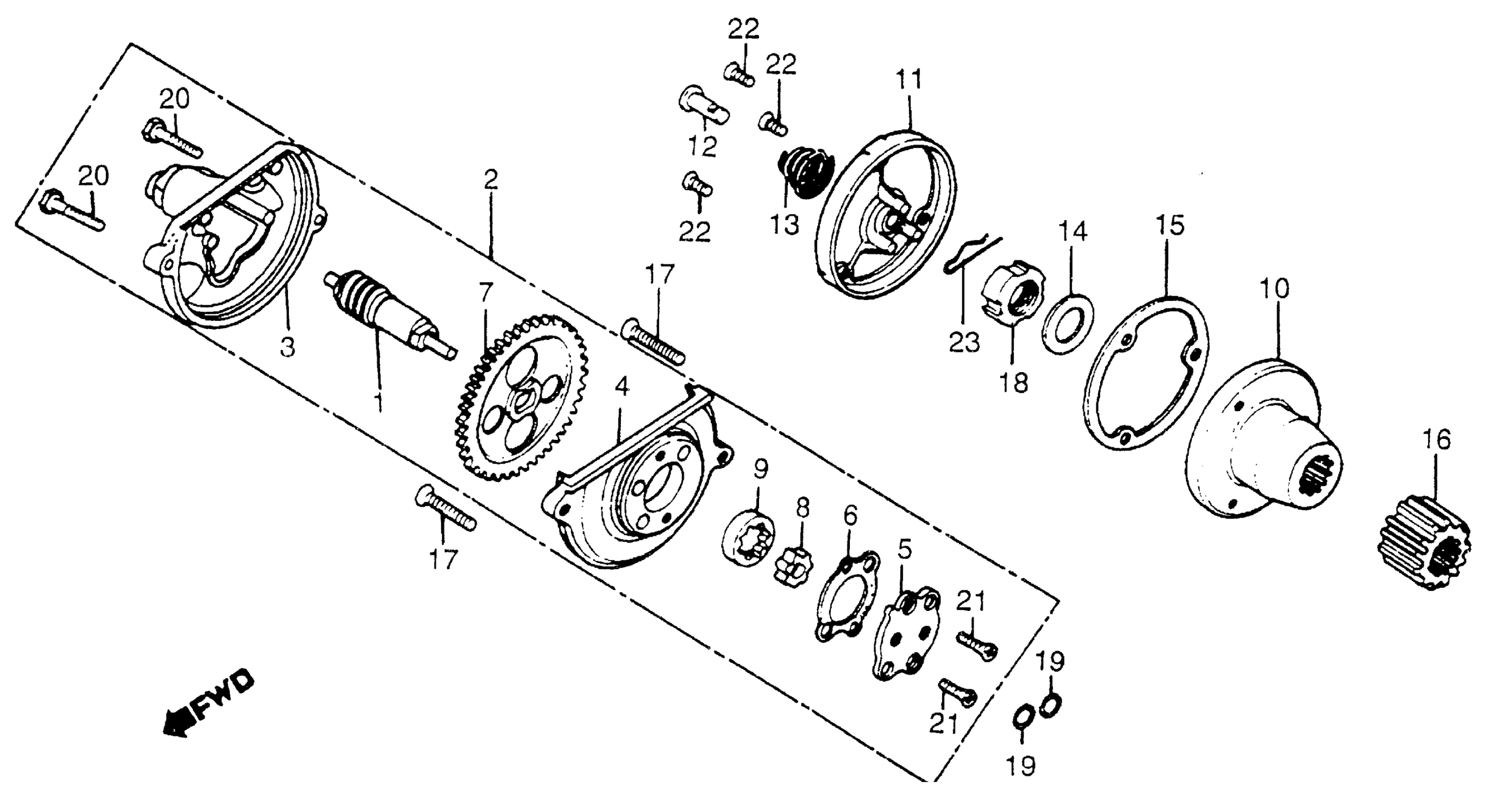

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 OIL PUMP + OIL FILTER Diagram

GEAR, TACHOMETER PINION

12421-437-000

Unavailable

PUMP ASSY., OIL

15100-441-931

Unavailable

COVER, OIL PUMP GEAR

15106-324-030

Unavailable

BODY, OIL PUMP

15111-KBB-900

Unavailable

BODY, OIL PUMP This part replaces 15111-KW1-900.

15111-KBB-900

Unavailable

BODY, OIL PUMP This part replaces 15111-440-010.

15111-KBB-900

Unavailable

PLATE, OIL PUMP

15116-107-020

Unavailable

GASKET, OIL PUMP

15126-107-020

$1.70

GEAR, OIL PUMP DRIVE (37T)

15131-KEH-900

Unavailable

GEAR, OIL PUMP DRIVE (37T) This part replaces 15131-437-010.

15131-KEH-900

Unavailable

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-399-000

Unavailable

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-399-000

Unavailable

ROTOR, OIL FILTER

15430-440-030

$64.57

CAP, OIL FILTER ROTOR

15436-107-000

$39.51

THROUGH, OIL

15441-KCS-650

$6.77

THROUGH, OIL This part replaces 15441-107-000.

15441-KCS-650

$6.77

SPRING, OIL THROUGH

15446-107-000

$4.11

WASHER, OIL FILTER ROTOR LOCKING

15451-107-000

$4.03

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP This part replaces 15459-107-000.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP This part replaces 15459-107-306.

15459-K70-630

$3.56

GEAR, PRIMARY DRIVE (21T)

23121-437-010

$60.97

SCREW, FLAT (6X30)

90101-440-000

$2.51

NUT, LOCK (16MM)

90231-KCS-651

$4.21

NUT, LOCK (16MM) This part replaces 90231-200-010.

90231-KCS-651

$4.21

O-RING (9.4X2.4)

91304-KK3-830

$2.31

O-RING (9.4X2.4) This part replaces 91304-107-000.

91304-KK3-830

$2.31

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

PIN, LOCK (8MM)

94251-08000

$1.49
