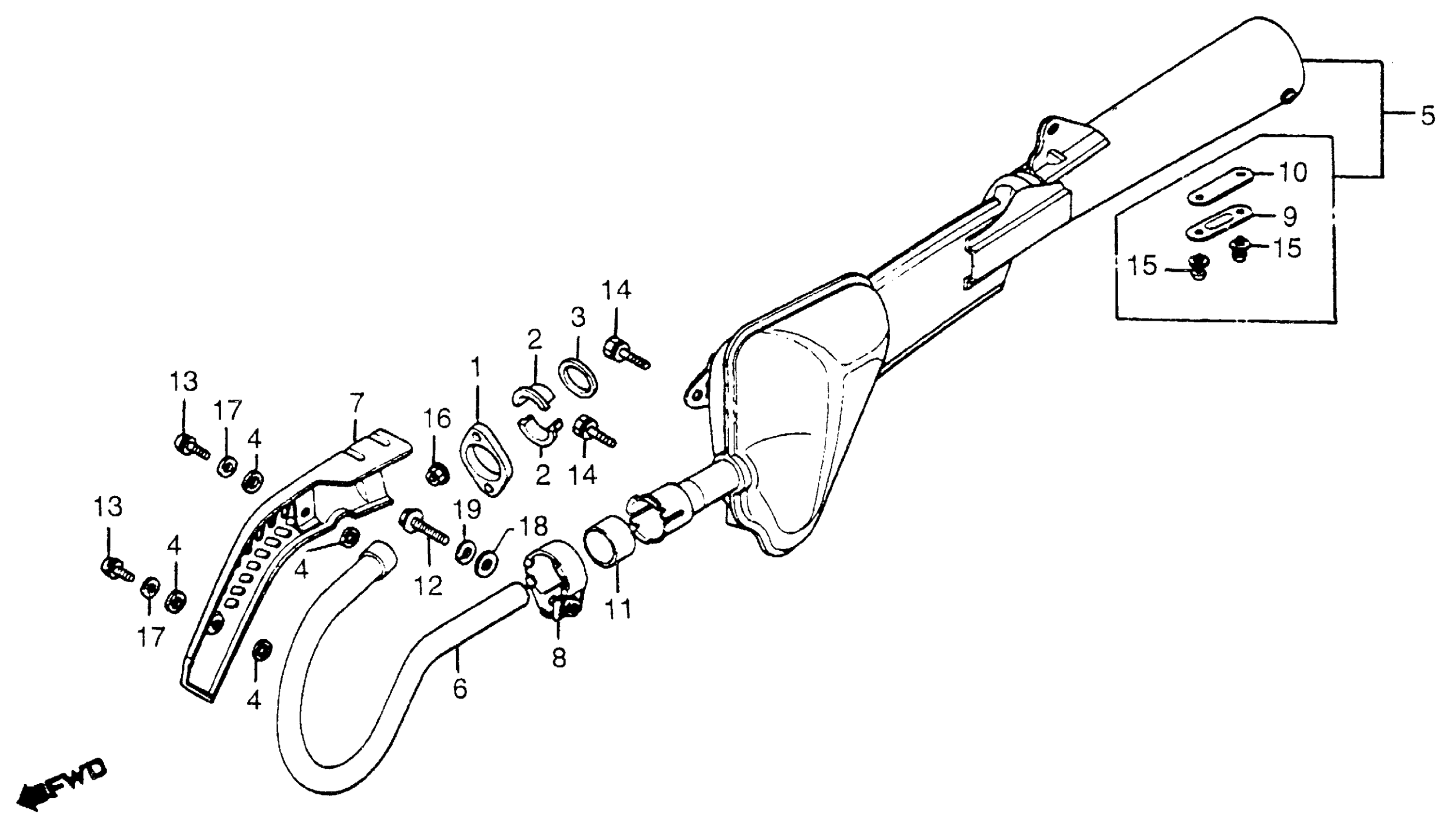

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-437-970

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-437-000

$8.41

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.52

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

4

GASKET, PROTECTOR

18292-MM9-740

$2.81

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

5

MUFFLER ASSY. (NOT AVAILABLE) This part replaces 18300-KB1-870.

18300-427-777

Unavailable

6

PIPE, EX. This part replaces 18320-437-013.

18320-437-023

Unavailable

6

PIPE, EX.

18320-437-023

Unavailable

7

PROTECTOR, EX. PIPE

18321-437-970

Unavailable

8

BAND, MUFFLER

18371-355-710

Unavailable

9

LID, MUFFLER

18373-446-010

Unavailable

10

GASKET, MUFFLER

18374-KR8-900

Unavailable

10

GASKET, MUFFLER This part replaces 18374-310-000.

18374-KR8-900

Unavailable

11

GASKET, MUFFLER

18391-KJ3-700

$26.61

11

GASKET, MUFFLER This part replaces 18391-KR9-000.

18391-KJ3-700

$26.61

11

GASKET, MUFFLER This part replaces 18391-437-000.

18391-KJ3-700

$26.61

12

BOLT, FLANGE (8X32) This part replaces 90118-437-970.

95701-08032-07

$2.88

12

BOLT, FLANGE (8X32)

95701-08032-07

$2.88

13

SCREW-WASHER (6X12)

90136-MC7-000

$4.33

14

BOLT-WASHER (8X16)

93413-08016-08

$1.22

14

BOLT-WASHER (8X16) This part replaces 93483-08016-08.

93413-08016-08

$1.22

15

SCREW-WASHER (6X12)

93891-06012-07

$0.88

16

NUT, FLANGE (6MM)

94050-06020

$1.67

17

WASHER, PLAIN (6MM)

94101-06700

$0.86

18

WASHER, PLAIN (8MM)

94101-08000

$0.75

19

WASHER, SPRING (8MM)

94111-08000

$0.90
