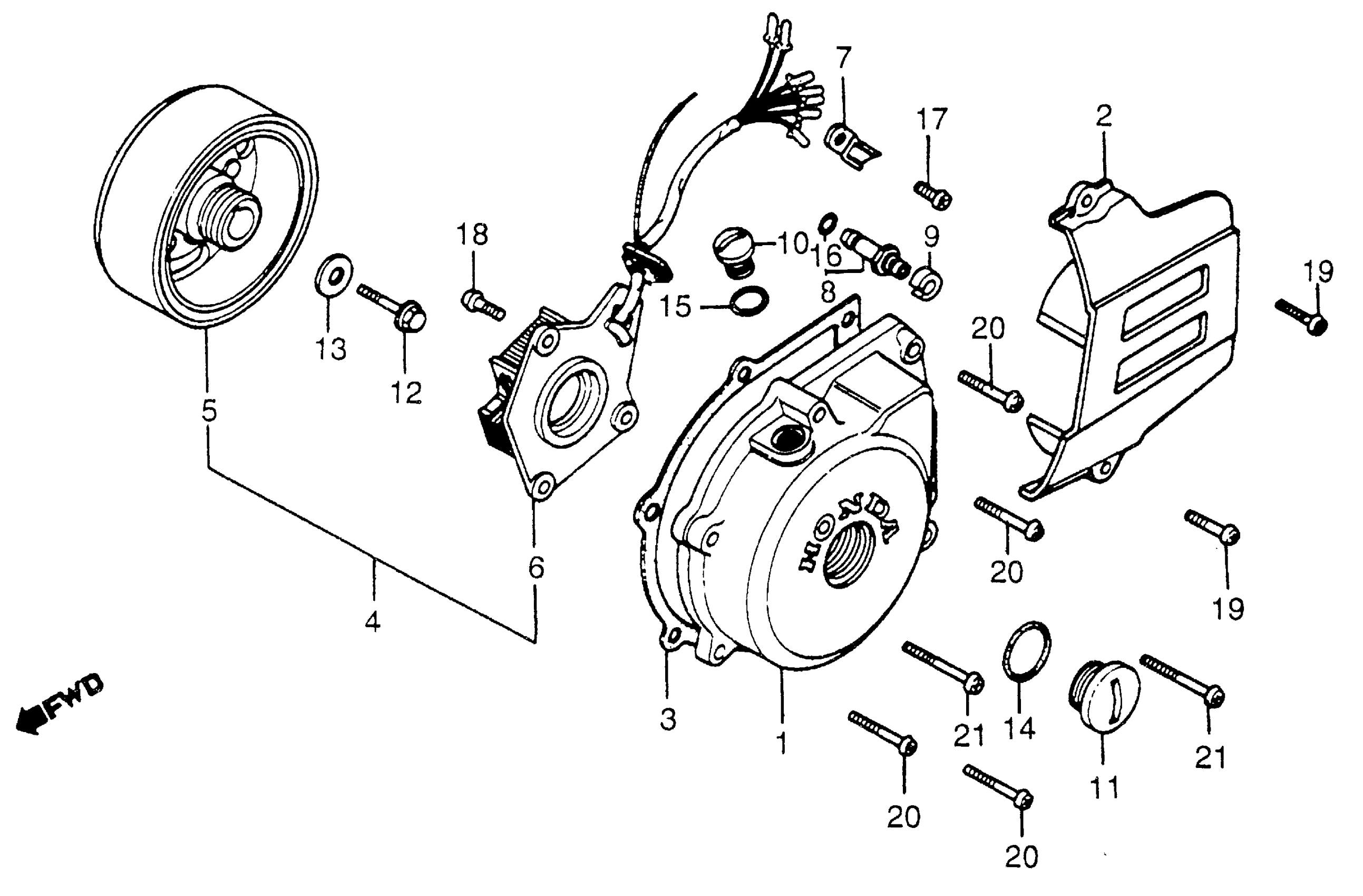

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-441-970

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-KB1-930

Unavailable

GASKET, L. CRANKCASE COVER

11395-441-405

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-441-930.

11395-441-405

Unavailable

ALTERNATOR ASSY. This part replaces 31100-441-932.

31100-441-934

Unavailable

FLYWHEEL

31110-441-932

Unavailable

STATOR This part replaces 31120-441-932.

31120-441-931

Unavailable

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

CLAMP, WIRE HARNESS

32976-107-010

$1.97

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

BOLT, FLANGE (8X33)

90112-KC6-000

Unavailable

WASHER, ROTOR SETTING

90426-355-000

$4.22

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

O-RING (13.8X2.5)

91303-MG7-003

$3.12

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

SCREW, PAN (6X16)

93500-06016-0A

$1.49

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

SCREW, PAN (6X25)

93500-06025-0A

$1.49

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49
