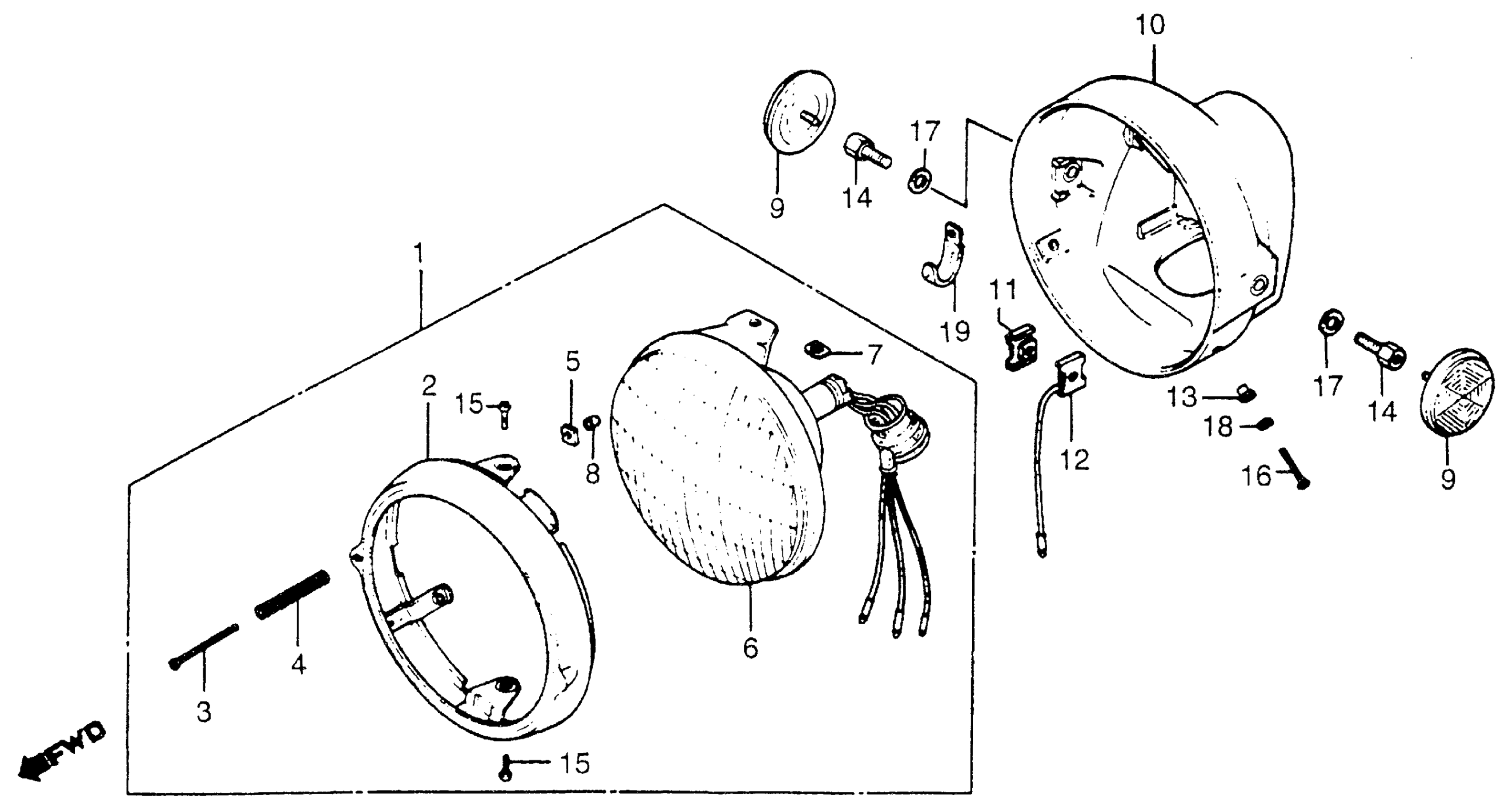

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-KG1-770

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-329-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

4

SPRING, HEADLIGHT BEAM ADJUSTING This part replaces 33107-283-023.

33107-200-023

$3.01

5

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.39

6

HEADLIGHT UNIT

33120-KG1-770

Unavailable

7

NUT, UNIT HOLDER

33128-200-033

Unavailable

8

COVER, SCREW

33136-426-830

$1.89

9

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

9

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

10

CASE, HEADLIGHT *NH1* (BLACK)

61301-441-970ZA

Unavailable

11

NUT, HEADLIGHT CASE

61303-105-000

$3.81

12

WASHER, HEADLIGHT CASE This part replaces 61303-159-010.

61303-159-020

Unavailable

12

WASHER, HEADLIGHT CASE

61303-159-020

Unavailable

13

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

14

BOLT, HEADLIGHT STAY

90123-428-000

Unavailable

15

SCREW, PAN (5X8)

93500-05008-0H

$1.49

16

SCREW, PAN (5X16)

93500-05016-0B

$1.49

17

WASHER, PLAIN (8MM)

94102-08000

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49

19

CLIP (2X70)

94591-27000

$2.92
