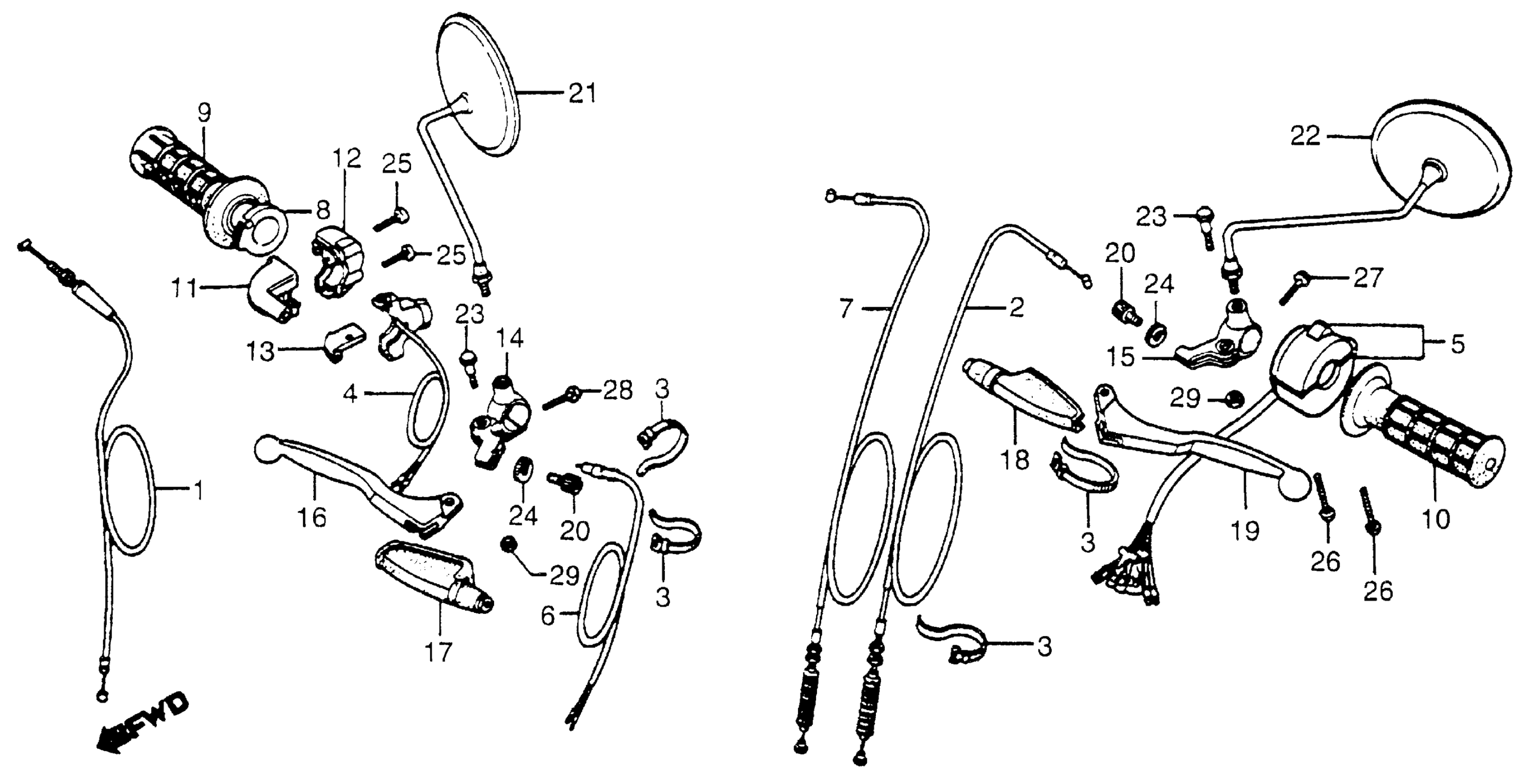

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-446-740

Unavailable

2

CABLE, CLUTCH This part replaces 22870-437-970.

22870-437-971

Unavailable

2

CABLE, CLUTCH

22870-437-971

Unavailable

3

BAND B1, WIRE

32161-404-000

$2.13

4

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

35130-KB1-930

Unavailable

5

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-KB1-930

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35330-391-690.

35340-329-003

$15.68

6

SWITCH ASSY., FR. STOP This part replaces 35340-147-000.

35340-329-003

$15.68

6

SWITCH ASSY., FR. STOP This part replaces 35340-329-000.

35340-329-003

$15.68

7

CABLE, FR. BRAKE

45450-KW2-920

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-437-970.

45450-KW2-920

Unavailable

8

PIPE, THROTTLE GRIP This part replaces 53141-437-000.

53141-437-010

Unavailable

8

PIPE, THROTTLE GRIP

53141-437-010

Unavailable

9

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$10.87

10

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$8.47

11

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$18.77

11

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$18.77

12

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$17.53

12

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$17.53

13

SLIDER, THROTTLE

53169-KA2-000

$4.53

14

BRACKET, R. HANDLEBAR

53171-312-003

$47.54

15

BRACKET, L. HANDLE LEVER

53172-310-010

$50.27

16

LEVER, R. HANDLEBAR

53175-KB7-000

Unavailable

17

COVER, R. HANDLE LEVER

53176-428-010

$9.01

18

COVER, L. HANDLE LEVER

53177-430-000

$9.88

19

LEVER, L. HANDLEBAR

53178-KB7-000

$26.49

20

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

21

MIRROR, R. (NA USE ALT:88210-329-730)

88110-329-730

Unavailable

22

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) | (Optional). This part replaces 88120-329-730.

88220-329-730

Unavailable

23

BOLT, HANDLE LEVER PIVOT This part replaces 90114-397-910.

90114-428-870

$3.77

24

NUT, FIXING

90321-315-670

$6.80

24

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

25

SCREW, PAN (5X16)

93500-05016-0A

$0.83

26

SCREW, PAN (5X32)

93500-05032-0A

$1.00

27

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.09

27

SCREW, PAN (6X25)

93500-06025-0A

$1.09

28

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.09

28

SCREW, PAN (6X28)

93500-06028-0A

$1.09

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

29

NUT, HEX. (6MM)

94001-06200-0S

$1.19

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19
