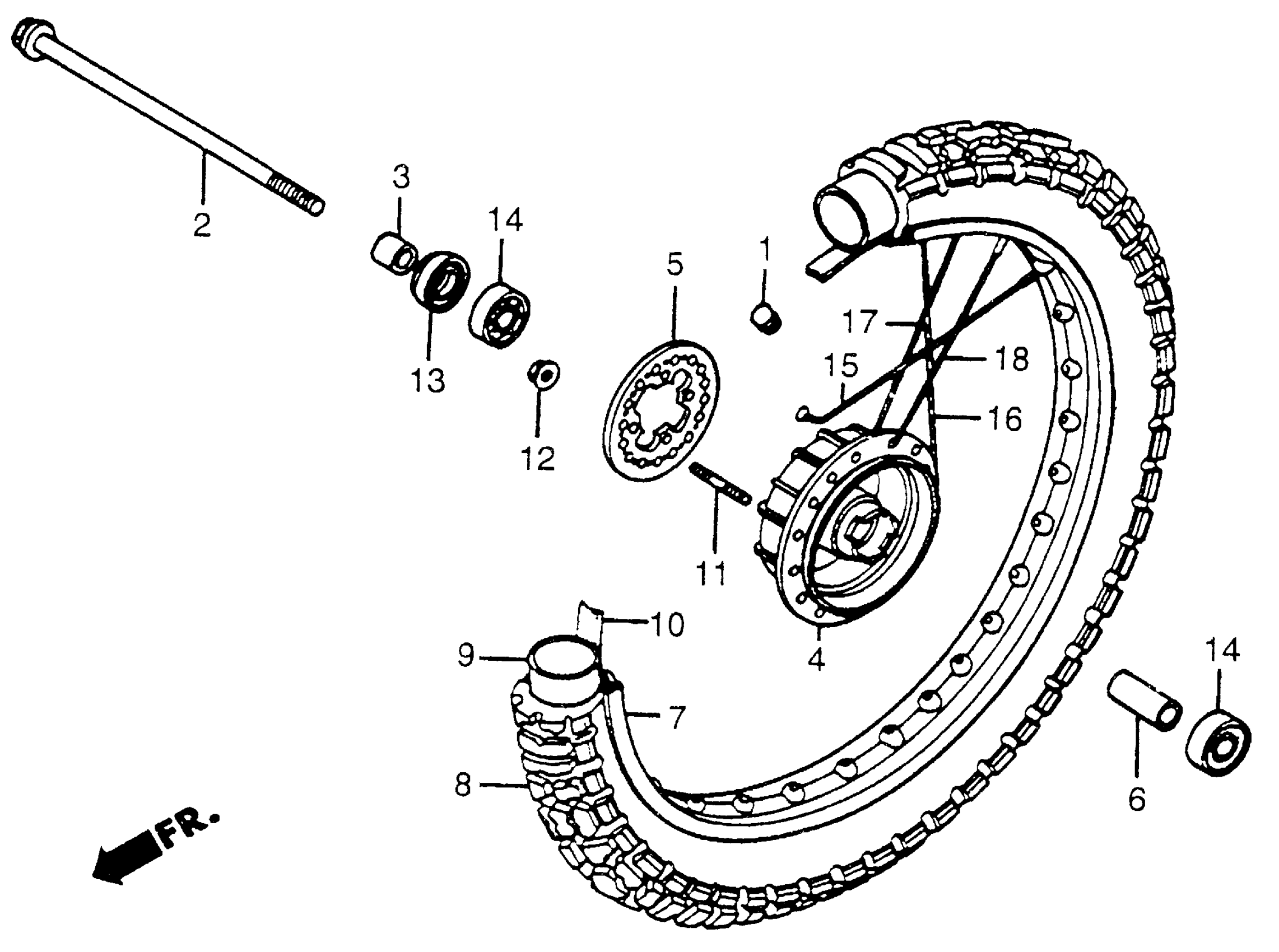

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 FRONT WHEEL Diagram

#

Description
Price

1

CAP, RIM HOLE (NOT AVAILABLE)

42717-310-000

Unavailable

2

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-KB1-930

Unavailable

3

COLLAR, FR. WHEEL SIDE

44311-437-970

Unavailable

4

HUB, FR. WHEEL

44601-437-970

Unavailable

5

FLANGE, FR. SPOKE

44604-430-010

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-397-630

Unavailable

7

RIM, FR. WHEEL (NOT AVAILABLE)

44701-KB1-930

Unavailable

8

TIRE, FR. (2.75-21) (4PR) (DUNLOP) (NOT AVAILABLE)

44711-437-971

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

9

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

10

FLAP, TIRE (21) This part replaces 44713-KB7-901.

44713-KW8-901

$3.34

11

BOLT, STUD (6X28)

90135-107-720

$2.56

12

NUT, U (6MM)

90301-473-003

$4.07

13

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

13

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

14

BEARING, RADIAL BALL (6301Z)

96120-63010-10

$13.20

15

SPOKE SET B (9X235.5) (NA USE ALT:97222-52311-10)

97222-52311-R0

Unavailable

16

SPOKE SET B (9X225.5) This part replaces 97282-52291-R0.

97282-52291-10

Unavailable

16

SPOKE SET B (9X225.5)

97282-52291-10

Unavailable

17

SPOKE SET B (9X235.5) This part replaces 97328-52311-R0.

97328-52311-10

Unavailable

17

SPOKE SET B (9X235.5)

97328-52311-10

Unavailable

18

SPOKE SET B (9X225.0) (NA USE ALT:97774-52290-10)

97774-52290-R0

Unavailable
