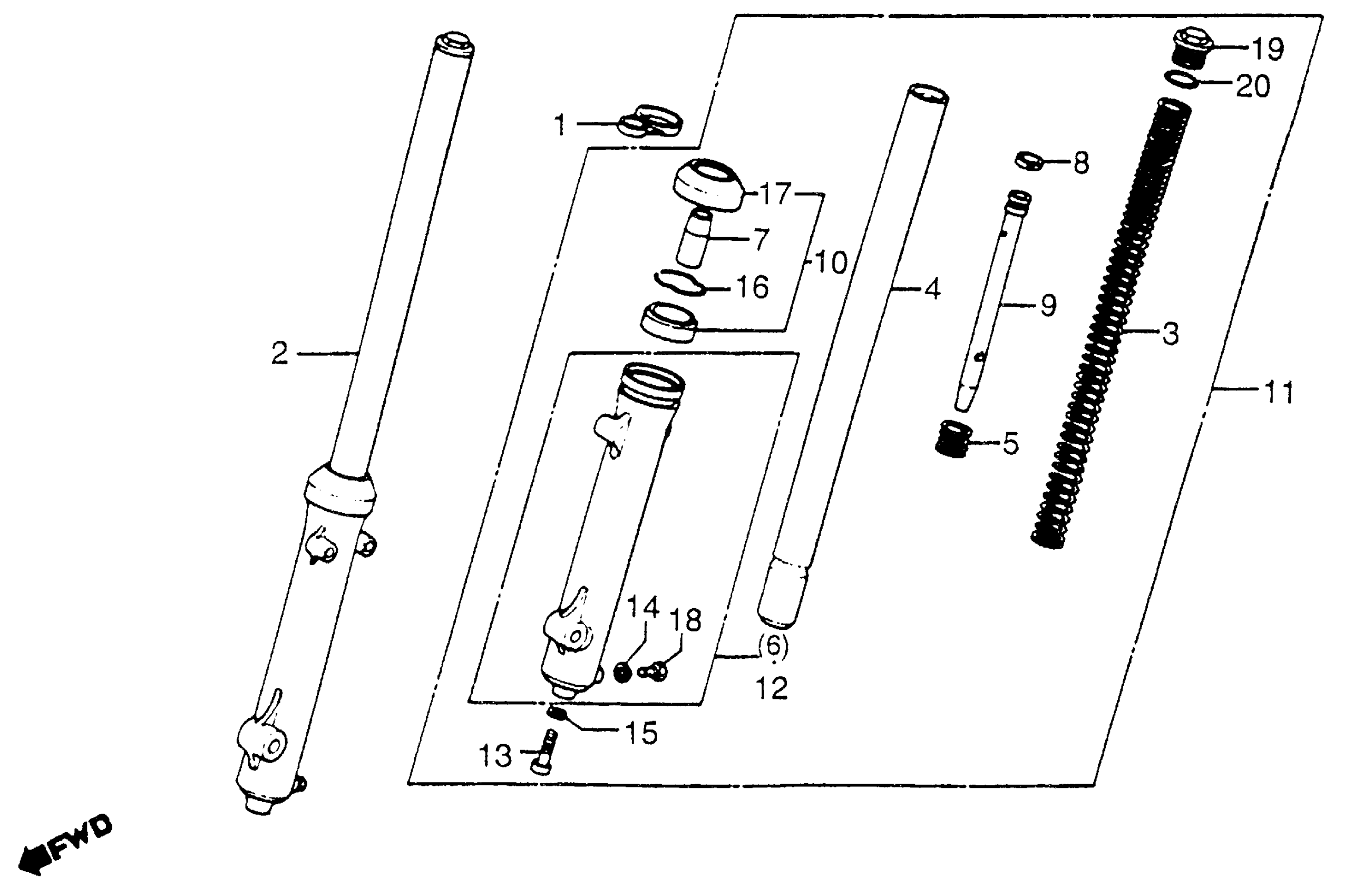

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 FRONT FORK Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE (NOT AVAILABLE)

45468-399-620

Unavailable

2

FORK ASSY., R. FR.

51400-KB1-930

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-437-003

Unavailable

4

PIPE, FR. FORK

51410-437-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

6

CASE, R. (LOWER)

51421-KB1-930

Unavailable

7

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

7

PIECE, OIL LOCK

51432-447-731

$27.42

8

RING, PISTON

51437-373-781

Unavailable

9

PIPE, SEAT

51440-437-003

Unavailable

10

SEAL SET, FR. FORK

51490-437-305

Unavailable

11

FORK ASSY., L. FR.

51500-KB1-930

Unavailable

12

CASE, L. (LOWER)

51521-KB1-930

Unavailable

13

BOLT, SOCKET (8X27)

90116-383-721

$5.13

14

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

15

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

16

RING, OIL SEAL STOP

90601-354-000

$5.13

17

DUST SEAL (SHOWA)

91254-437-003

$15.16

18

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

BOLT D1, FORK

94605-27101

$8.00

20

O-RING (23X2.4)

94608-30000

$1.49
