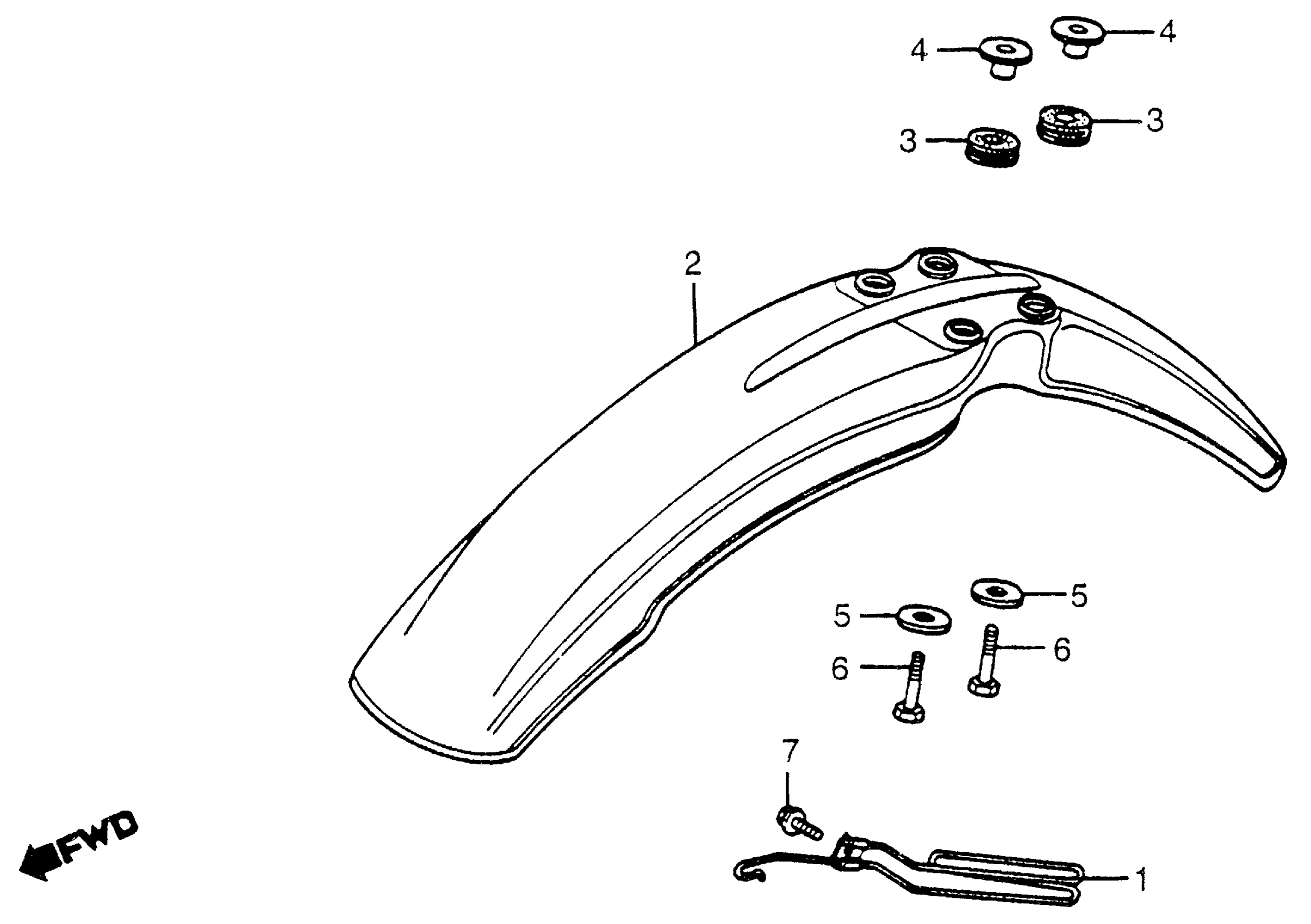

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 FRONT FENDER Diagram

#

Description

Price

1

CLAMP, SPEEDOMETER CABLE

44832-437-970

Unavailable

2

FENDER, FR. R119 (FLASH RED)

61100-KB7-960ZF

$80.25

3

RUBBER, FR. FENDER MOUNTING

61103-357-000

Unavailable

4

COLLAR, FENDER MOUNTING

61104-KA4-700

$6.56

5

WASHER (6.5X20)

90545-292-000

$1.61

6

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.41

6

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.41

6

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

7

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.32

7

BOLT, FLANGE (6X16)

95701-06016-08

$1.32
