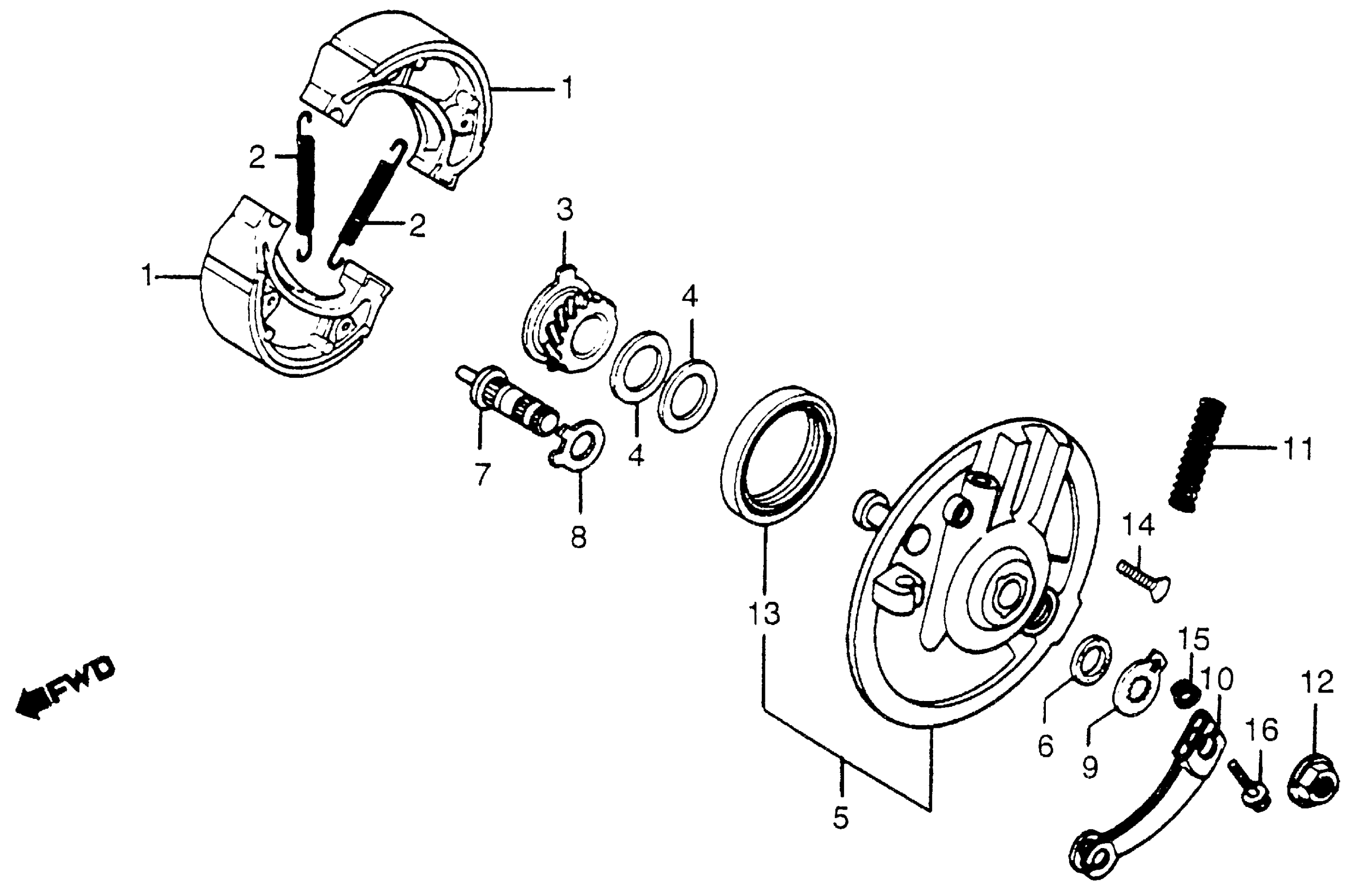

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06450-KY0-601

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A2-444-000.

06450-KY0-601

Unavailable

1

SHOE KIT, BRAKE

06450-KY0-601

Unavailable

1

SHOE KIT, BRAKE This part replaces 43120-444-000.

06450-KY0-601

Unavailable

2

SPRING, BRAKE SHOE

43151-329-000

$2.62

3

GEAR, SPEEDOMETER

44804-437-970

Unavailable

4

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.13

5

PANEL SUB, FR. BRAKE

45010-KFC-900

Unavailable

5

PANEL SUB, FR. BRAKE This part replaces 45010-437-970.

45010-KFC-900

Unavailable

6

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.80

7

CAM, FR. BRAKE

45141-KB1-930

Unavailable

8

SEAT, FR. BRAKE CAM (NOT AVAILABLE)

45142-KB7-000

Unavailable

9

INDICATOR, FR. BRAKE

45145-437-971

Unavailable

10

ARM, FR. BRAKE This part replaces 45410-KB7-010.

45410-KB7-020

Unavailable

10

ARM, FR. BRAKE

45410-KB7-020

Unavailable

11

SPRING, FR. BRAKE CABLE

45454-360-010

$4.65

12

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

13

OIL SEAL (47X60X7) (ARAI)

91251-GK4-003

$8.27

13

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$8.27

14

SCREW, OVAL (5X18)

93700-05018-0A

$0.42

14

SCREW, OVAL (5X18) This part replaces 93700-05018-1A.

93700-05018-0A

$0.42

15

NUT, FLANGE (6MM)

94050-06000

$0.59

16

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

16

BOLT, FLANGE (6X32)

95701-06032-00

$1.71
