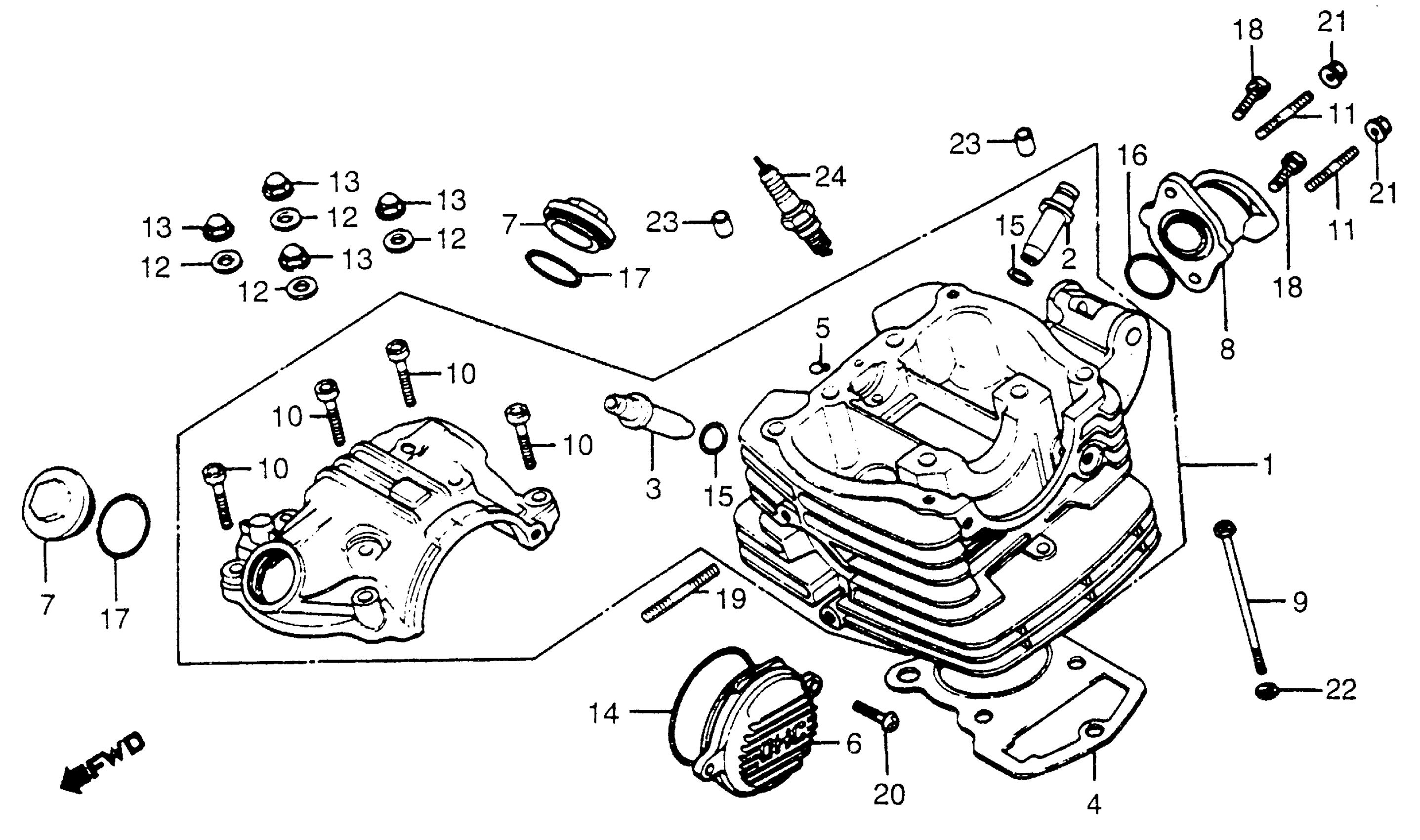

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12000-440-010.

12000-440-020

Unavailable

1

CYLINDER HEAD ASSY.

12000-440-020

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OVER SIZE)

12206-KCS-305

$26.84

4

GASKET, CYLINDER HEAD This part replaces 12251-331-772.

12251-437-P00

Unavailable

4

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

5

RUBBER, OIL SEAL

12271-383-000

$2.92

6

COVER, L. CYLINDER HEAD SIDE

12331-441-970

Unavailable

7

CAP, TAPPET ADJUSTING HOLE

12361-KPS-900

$3.64

7

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-441-930.

12361-KPS-900

$3.64

8

INSULATOR, CARBURETOR

16210-437-000

$47.33

9

BOLT, HS (6MM)

90081-107-000

Unavailable

10

BOLT, SOCKET (6MM)

90081-383-000

$5.66

11

BOLT, STUD (6X28) This part replaces 90132-397-690.

90135-107-720

$2.56

11

BOLT, STUD (6X28)

90135-107-720

$2.56

12

WASHER, SEALING (8MM)

90442-028-000

$1.77

13

NUT, CAP (8MM)

90443-107-000

$2.89

14

O-RING (75X2.5)

91301-107-000

$4.87

15

O-RING (10X1.6) This part replaces 91301-KW1-900.

91301-KPF-960

$1.49

15

O-RING (10X1.6) This part replaces 91301-397-930.

91301-KPF-960

$1.49

16

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0)

91304-HB3-003

$7.70

17

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

18

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

18

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

19

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

$1.51

19

BOLT, STUD (6X35)

92900-06020-3E

$1.51

20

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

20

SCREW, PAN (6X20)

93500-06020-0A

$1.49

21

NUT, FLANGE (6MM)

94050-06080

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

24

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

24

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
