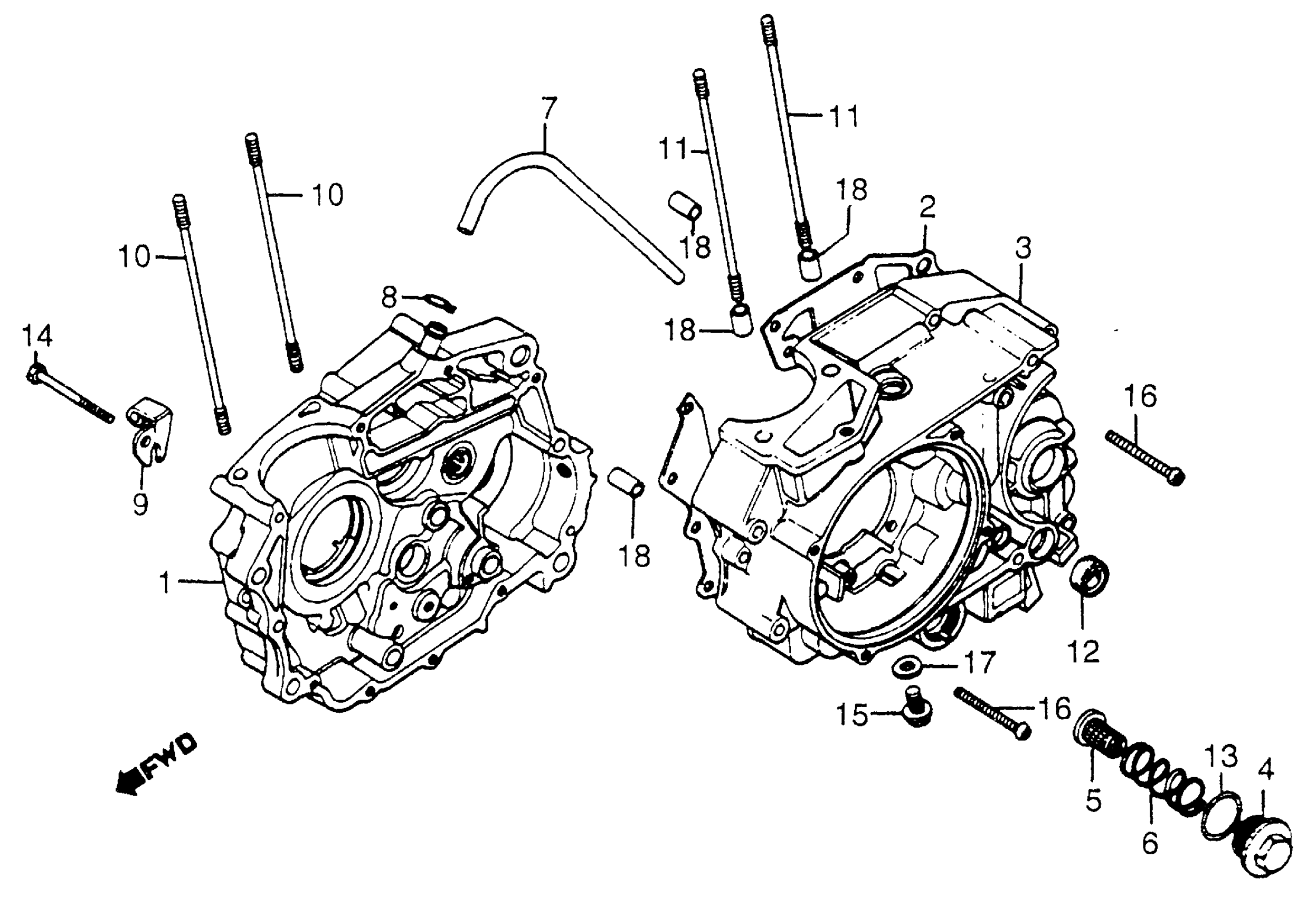

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KB1-930

Unavailable

2

GASKET, CRANKCASE (NOT AVAILABLE)

11191-437-970

Unavailable

3

CRANKCASE, L.

11200-KB1-930

Unavailable

4

CAP, TAPPET ADJUSTING HOLE

12361-KPS-900

$3.64

4

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KY0-890.

12361-KPS-900

$3.64

4

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-441-900.

12361-KPS-900

$3.64

5

SCREEN, OIL FILTER

15421-107-000

$6.31

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

TUBE, BREATHER (NOT AVAILABLE)

15761-382-010

Unavailable

8

CLIP, BREATHER TUBE

15772-292-010

$2.92

9

HOLDER, CLUTCH CABLE

22838-KY0-890

Unavailable

9

HOLDER, CLUTCH CABLE This part replaces 22838-397-630.

22838-KY0-890

Unavailable

10

BOLT A, CYLINDER STUD This part replaces 90031-107-000.

90031-107-010

$9.57

10

BOLT A, CYLINDER STUD

90031-107-010

$9.57

11

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90032-107-000.

90032-107-010

Unavailable

12

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

13

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

14

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

14

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

14

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

15

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

16

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

16

SCREW, PAN (6X50)

93500-06050-0A

$1.49

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

18

PIN A, DOWEL (10X14)

94301-10140

$2.28
