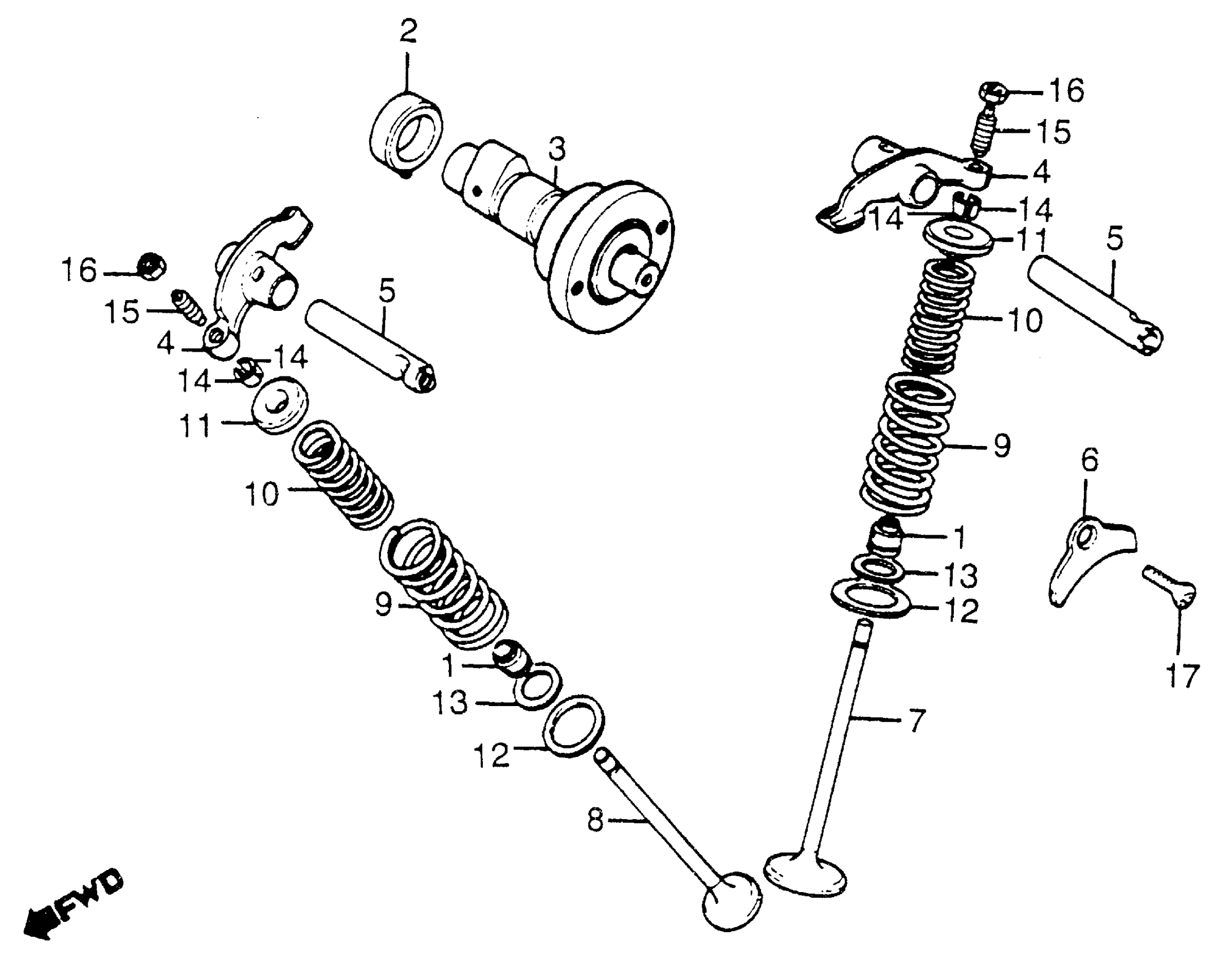

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 CAMSHAFT + VAVLE Diagram

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$10.21

SEAL, VALVE STEM (ARAI)

12208-413-003

$10.21

BUSH, CAMSHAFT

12260-437-000

$35.42

CAMSHAFT

14100-441-930

Unavailable

ARM, VALVE ROCKER

14431-383-000

$59.62

SHAFT, VALVE ROCKER ARM

14451-437-000

$29.12

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

VALVE, IN.

14711-397-630

Unavailable

VALVE, EX.

14721-437-000

$60.83

SPRING, VALVE (OUTER) (CHUO SPRING)

14751-383-003

$14.35

SPRING, VALVE (OUTER) (NIPPON HATSUJO)

14751-383-005

$13.31

SPRING, VALVE (INNER) (NIPPON) This part replaces 14761-383-003.

14761-383-005

$7.56

SPRING, VALVE (INNER) (NIPPON HATSUJO)

14761-383-005

$7.56

RETAINER, VALVE SPRING

14771-107-020

$7.44

SEAT, VALVE SPRING (OUTER)

14775-107-000

$3.80

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.00

COTTER, VALVE (SANKO)

14781-107-003

$2.43

SCREW, TAPPET ADJUSTING

90012-415-000

$5.78

NUT, TAPPET ADJUSTING

90206-250-000

$2.80

SCREW, FLAT (6X20)

93600-06020-0A

$0.90
