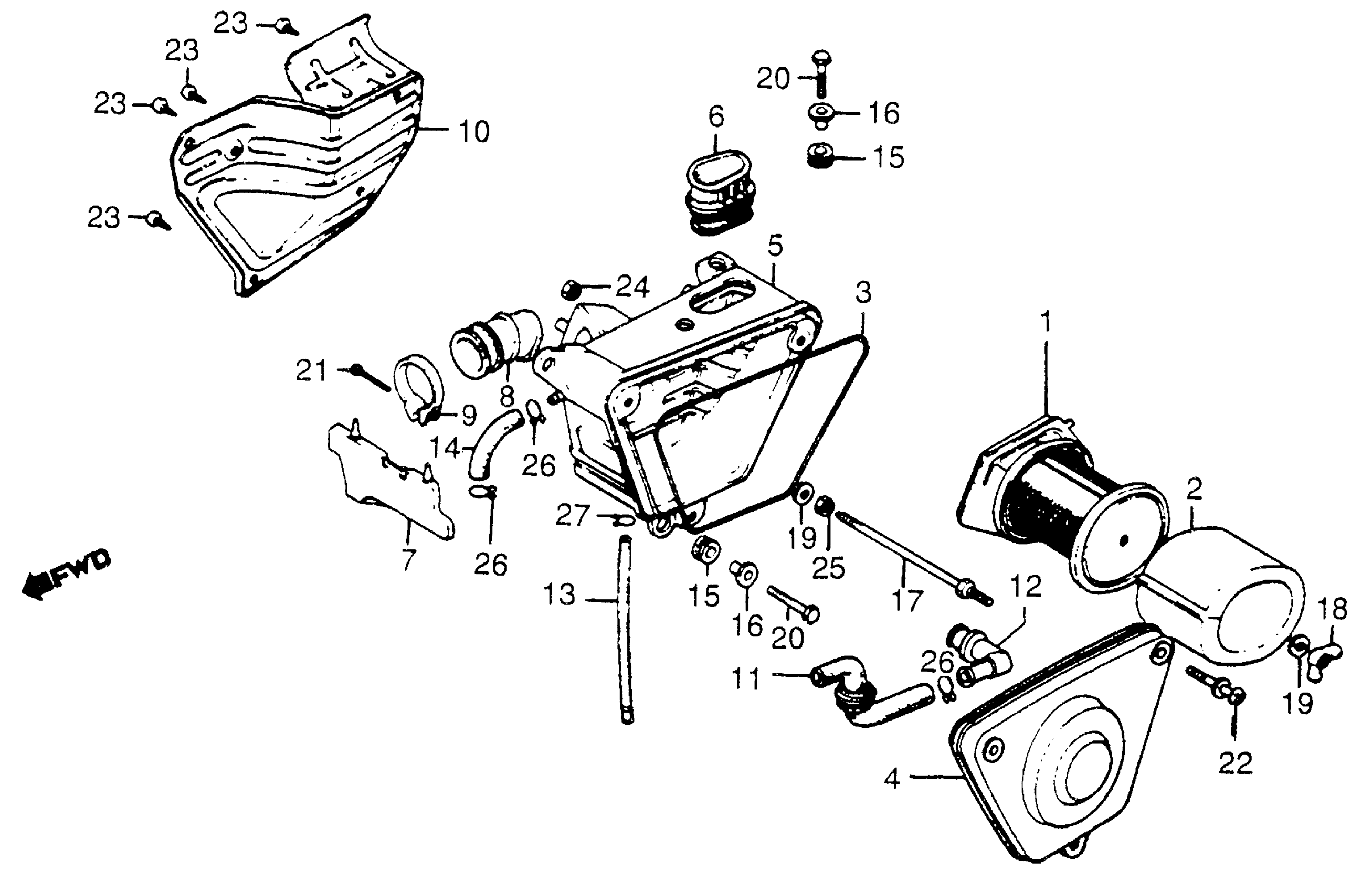

Honda XL125SA (85) MOTORCYCLE, BRA, VIN# 9C2JD020-FR100001 AIR CLEANER Diagram

#

Description
Price

1

TRAP, FLAME

17211-437-000

Unavailable

2

ELEMENT, AIR CLEANER

17213-437-000

$11.59

3

SEAL, AIR CLEANER COVER

17219-413-000

$5.60

4

COVER, AIR CLEANER HOUSING

17220-437-970

Unavailable

5

HOUSING, AIR CLEANER

17230-KB1-930

Unavailable

6

TUBE, AIR CLEANER IN.

17240-437-000

Unavailable

7

RUBBER, GUARD

17245-437-620

Unavailable

8

TUBE, AIR CLEANER CONNECTING

17253-437-000

Unavailable

9

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

10

PROTECTOR, AIR CLEANER (NOT AVAILABLE)

17260-437-010

Unavailable

13

TUBE ASSY., DRAIN

17365-437-305

$4.52

14

TUBE, BREATHER

17366-KF9-670

Unavailable

15

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

16

COLLAR, RR. FENDER (NOT AVAILABLE)

61105-428-000

Unavailable

17

BOLT, AIR CLEANER SETTING (NOT AVAILABLE)

90113-437-000

Unavailable

18

NUT, TOOL BOX SETTING

90325-044-000

$3.51

19

WASHER, SEALING (6MM)

90416-551-000

Unavailable

20

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

21

SCREW, PAN (4X25)

93500-04025-0A

$1.93

22

SCREW-WASHER (5X14)

93891-05014-00

$1.49

23

SCREW, TAPPING (4X10)

93903-34220

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

24

NUT, HEX. (6MM)

94001-06080-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

25

NUT, HEX. (6MM)

94002-06080-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

26

CLIP, TUBE (B12.5)

95002-02130

$1.49

27

CLIP, TUBE (C12)

95002-80000

$1.49
