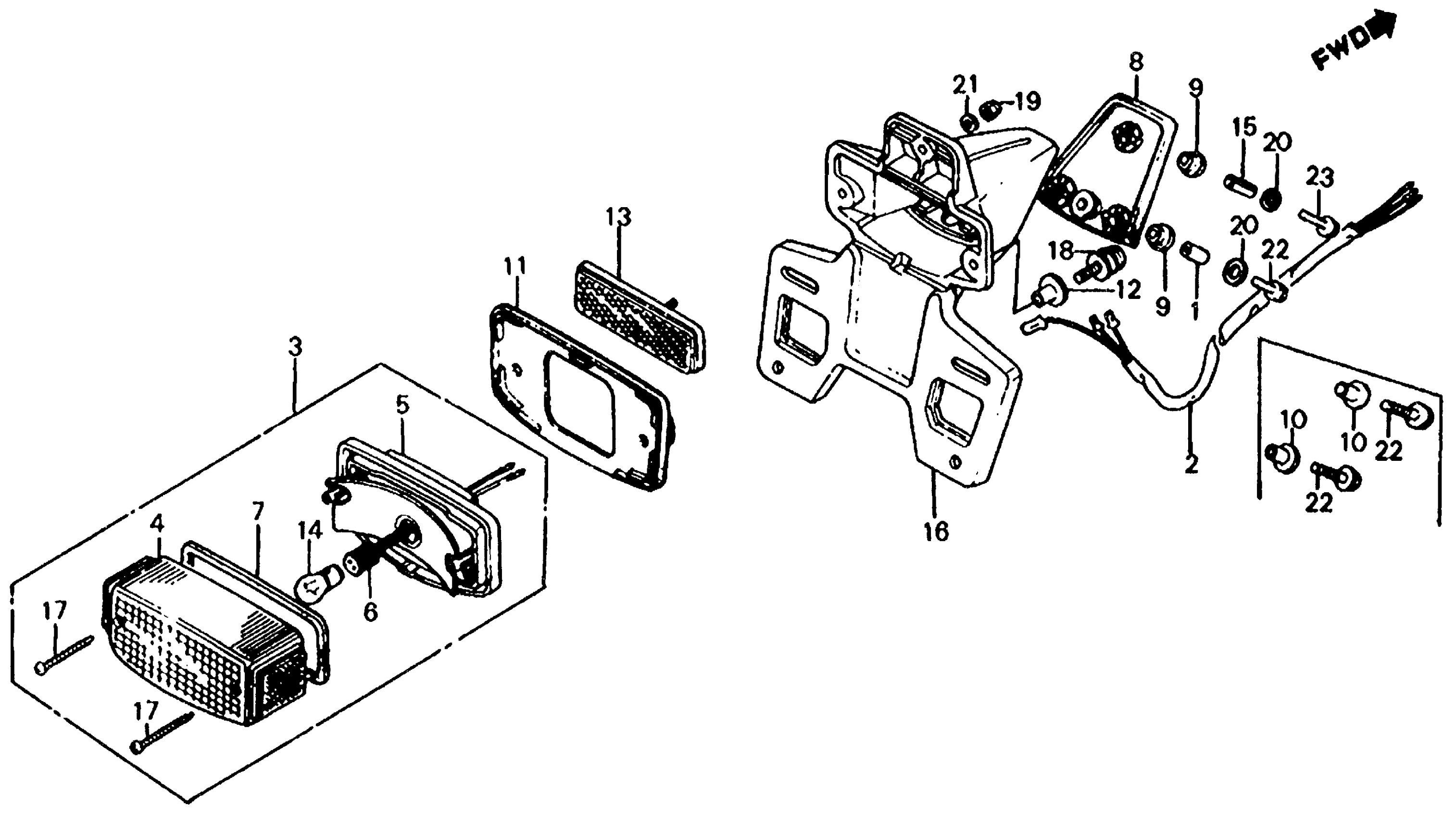

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 TAILLIGHT 84 Diagram

#

Description
Price

1

COLLAR, DISTANCE (NOT AVAILABLE) | Use from Frame SN EK400369

19024-692-000

Unavailable

2

SUB-WIRE HARNESS A

32101-GC5-000

Unavailable

3

TAILLIGHT UNIT (NOT AVAILABLE)

33701-KA8-711

Unavailable

4

LENS, TAILLIGHT (COO) (STANLEY) This part replaces 33702-MC4-671.

33702-MGR-305

$27.88

5

BASE, TAILLIGHT

33703-MC4-671

Unavailable

6

CABLE, TAILLIGHT

33708-147-003

Unavailable

7

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.22

8

RUBBER, BASE SEAT | Use up to Frame SN EK400367

33712-KA8-711

Unavailable

8

RUBBER, BASE SEAT | Use from Frame SN EK400368

33712-KG1-000

Unavailable

9

RUBBER, TAILLIGHT BRACKET | Use from Frame SN EK400369

33714-KR5-000

Unavailable

9

RUBBER, TAILLIGHT BRACKET | Use from Frame SN EK400369 This part replaces 33714-MC4-610.

33714-KR5-000

Unavailable

10

COLLAR, TAILLIGHT SETTING | Use up to Frame SN EK400368

33715-KA8-710

Unavailable

11

GASKET, TAILLIGHT

33718-KF9-670

Unavailable

12

COLLAR, TAILLIGHT GASKET

33719-KB7-000

Unavailable

13

REFLECTOR, REFLEX This part replaces 33741-MC7-611.

33741-MC7-612

$14.43

13

REFLECTOR, REFLEX

33741-MC7-612

$14.43

14

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

15

COLLAR, RUBBER SETTING | Use from Frame SN EK400369

77209-177-620

Unavailable

16

BRACKET, LICENSE PLATE

84701-MC4-671

Unavailable

17

SCREW, TAPPING (4X40)

90105-GA7-003

$2.84

18

SCREW-WASHER (5X18)

93893-05018-00

Unavailable

19

NUT, CAP (5MM)

94021-05020-0S

$1.49

20

WASHER, PLAIN (6MM) | Use from Frame SN EK400369

94103-06000

$1.49

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

BOLT, FLANGE (6X25) | Use up to Frame SN EK400368

95700-06025-08

$1.72

22

BOLT, FLANGE (6X25) | Use from Frame SN EK400369

95700-06025-08

$1.72

22

BOLT, FLANGE (6X25) | Use up to Frame SN EK400368

95701-06025-08

$1.72

22

BOLT, FLANGE (6X25) | Use from Frame SN EK400369

95701-06025-08

$1.72

23

BOLT, FLANGE (6X28) | Use from Frame SN EK400369 This part replaces 95700-06028-08.

95701-06028-08

$2.08

23

BOLT, FLANGE (6X28) | Use from Frame SN EK400369

95701-06028-08

$2.08
