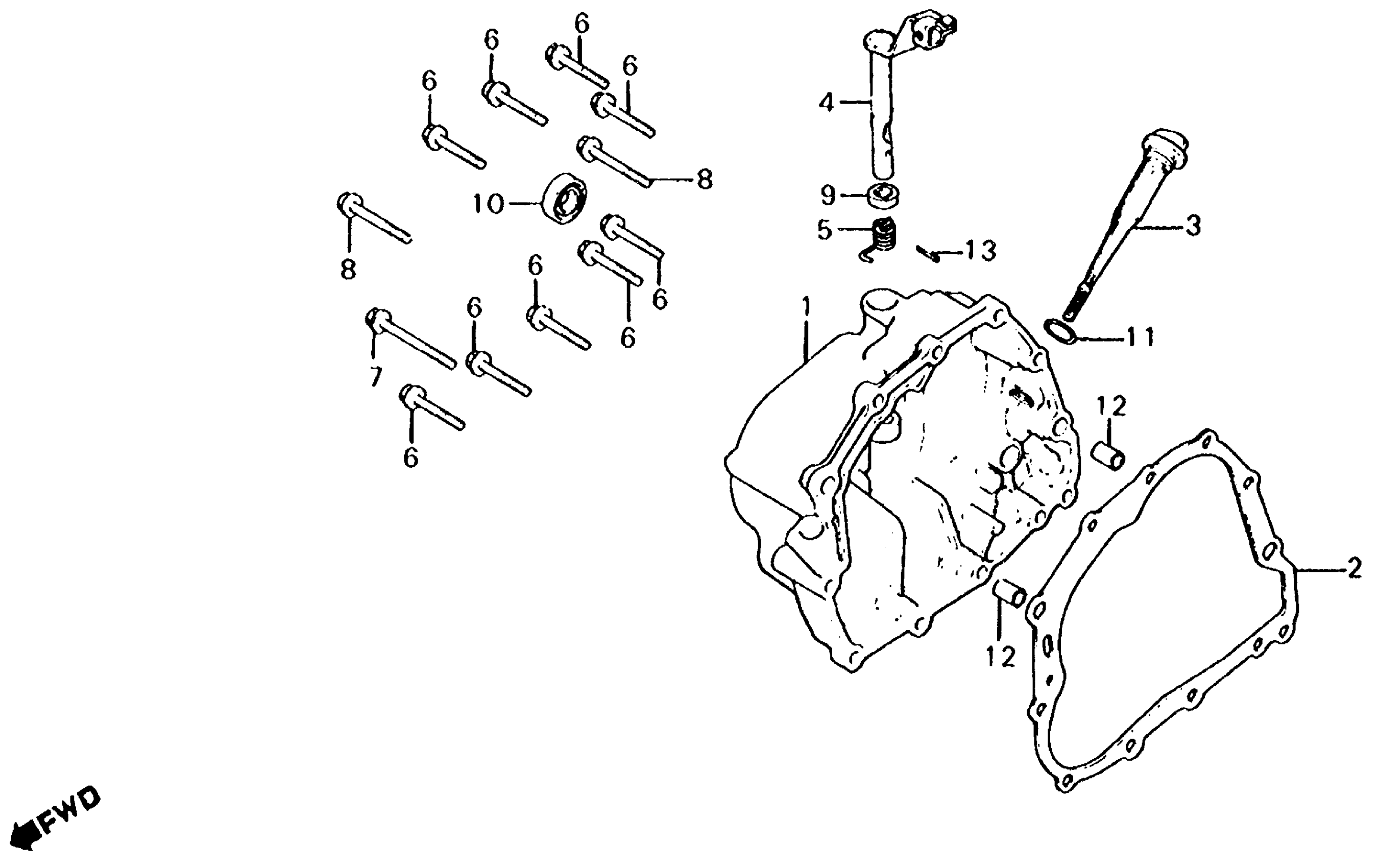

Honda XL125SA (84) MOTORCYCLE, JPN, VIN# JH2JD020-EK400001 TO JH2JD020-EK401879 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-437-671

Unavailable

GASKET, R. COVER This part replaces 11393-KT0-710.

11393-KVC-902

$14.29

GASKET, R. COVER This part replaces 11393-437-010.

11393-KVC-902

$14.29

GASKET, R. COVER This part replaces 11393-437-306.

11393-KVC-902

$14.29

DIPSTICK, OIL

15650-KB9-000

$13.32

DIPSTICK, OIL This part replaces 15650-437-000.

15650-KB9-000

$13.32

LEVER, CLUTCH

22810-437-000

Unavailable

SPRING, CLUTCH LEVER

22815-428-000

$3.14

BOLT, FLANGE (6X25)

96000-06025-00

$2.63

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.69

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

Unavailable

BOLT, FLANGE (6X35)

96001-06035-00

Unavailable

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.87

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$3.87

OIL SEAL (12X22X5)

91201-965-000

$3.87

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.35

OIL SEAL (16X28X7)

91204-259-003

$5.35

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.35

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.35

O-RING (18X3) (ARAI)

91307-KF0-003

Unavailable

O-RING (18X3)

91307-035-000

$2.75

PIN A, DOWEL (8X14)

94301-08140

$2.76

PIN, SPRING (3X10)

94305-30102

$1.74
